Test Reading

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

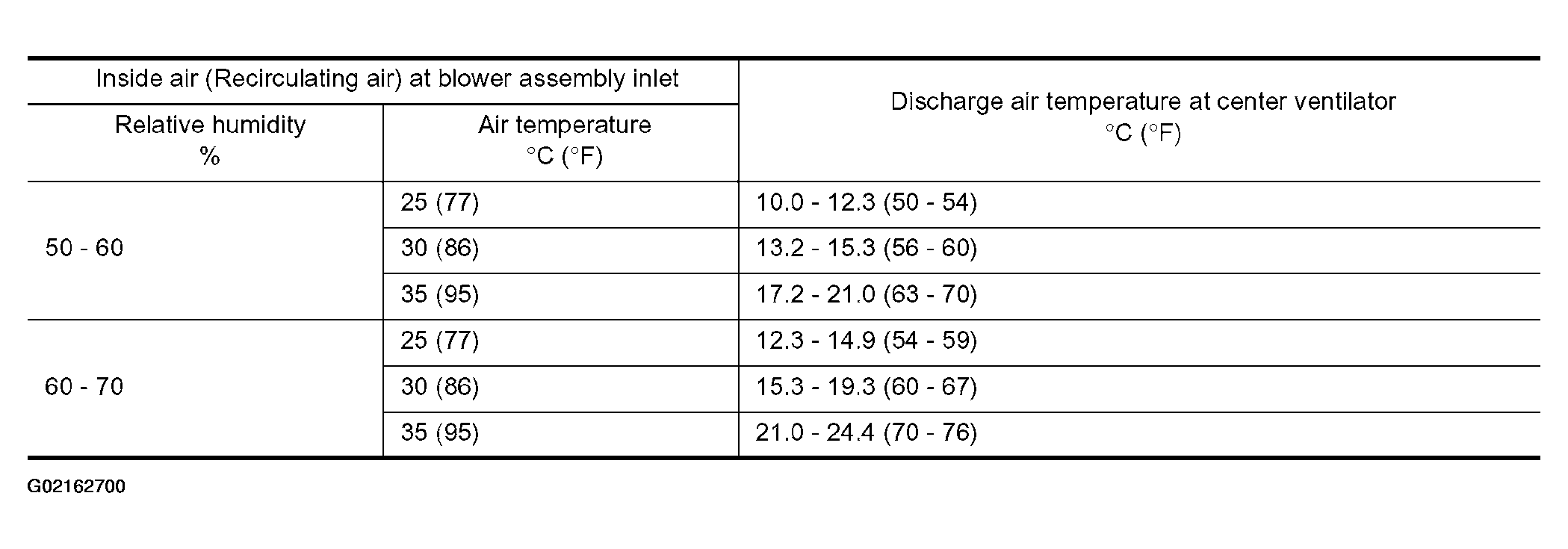

Recirculating-to-discharge Air Temperature Table

Fig 1: Test Reading Performance Table

Courtesy of NISSAN MOTOR CO., U.S.A.

Ambient Air Temperature-to-operating Pressure Table

Fig 2: Ambient Air Temperature-To-Operating Pressure Table

Courtesy of NISSAN MOTOR CO., U.S.A.
