Fan Switch

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals at each switch position.

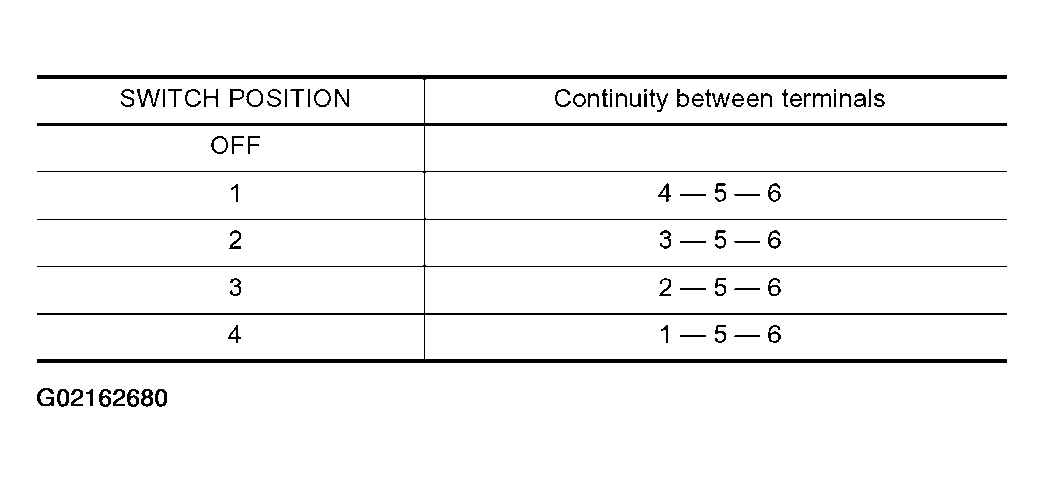

Fig 1: Fan Switch Positions Table

Courtesy of NISSAN MOTOR CO., U.S.A.

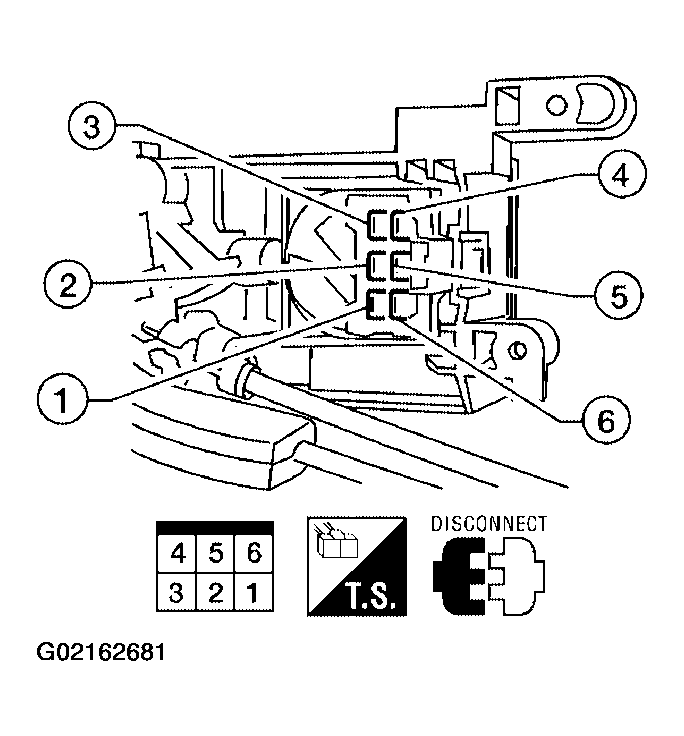

Fig 2: Identifying Fan Switch Positions

Courtesy of NISSAN MOTOR CO., U.S.A.
