Blower Motor Resistor

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between terminals.

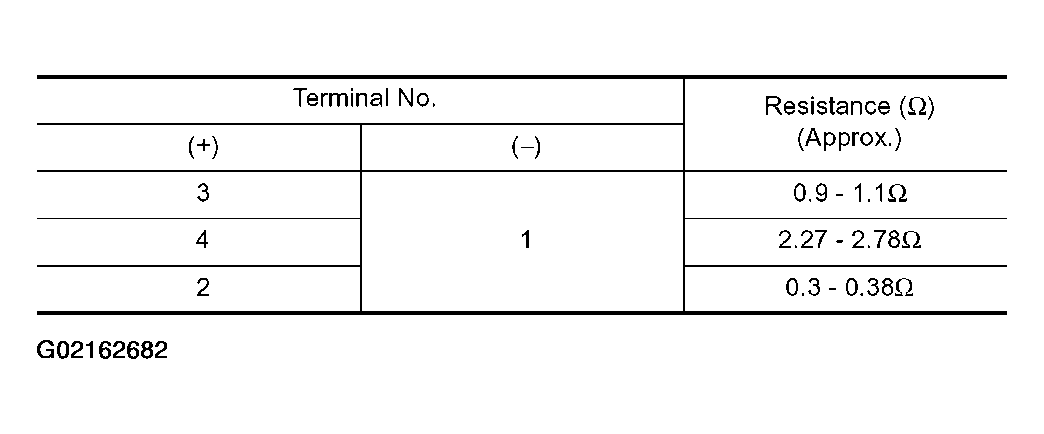

Fig 1: Blower Motor Resistor Resistance Table
G02162682Courtesy of NISSAN MOTOR CO., U.S.A.

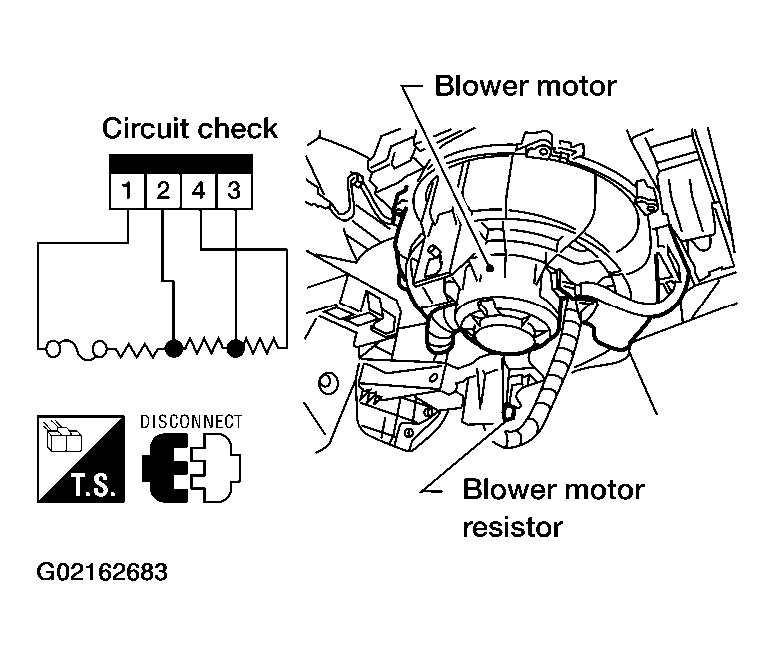

Fig 2: Identifying Blower Motor Resistor
G02162683Courtesy of NISSAN MOTOR CO., U.S.A.
