Removal and Installation for Liquid Tank

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

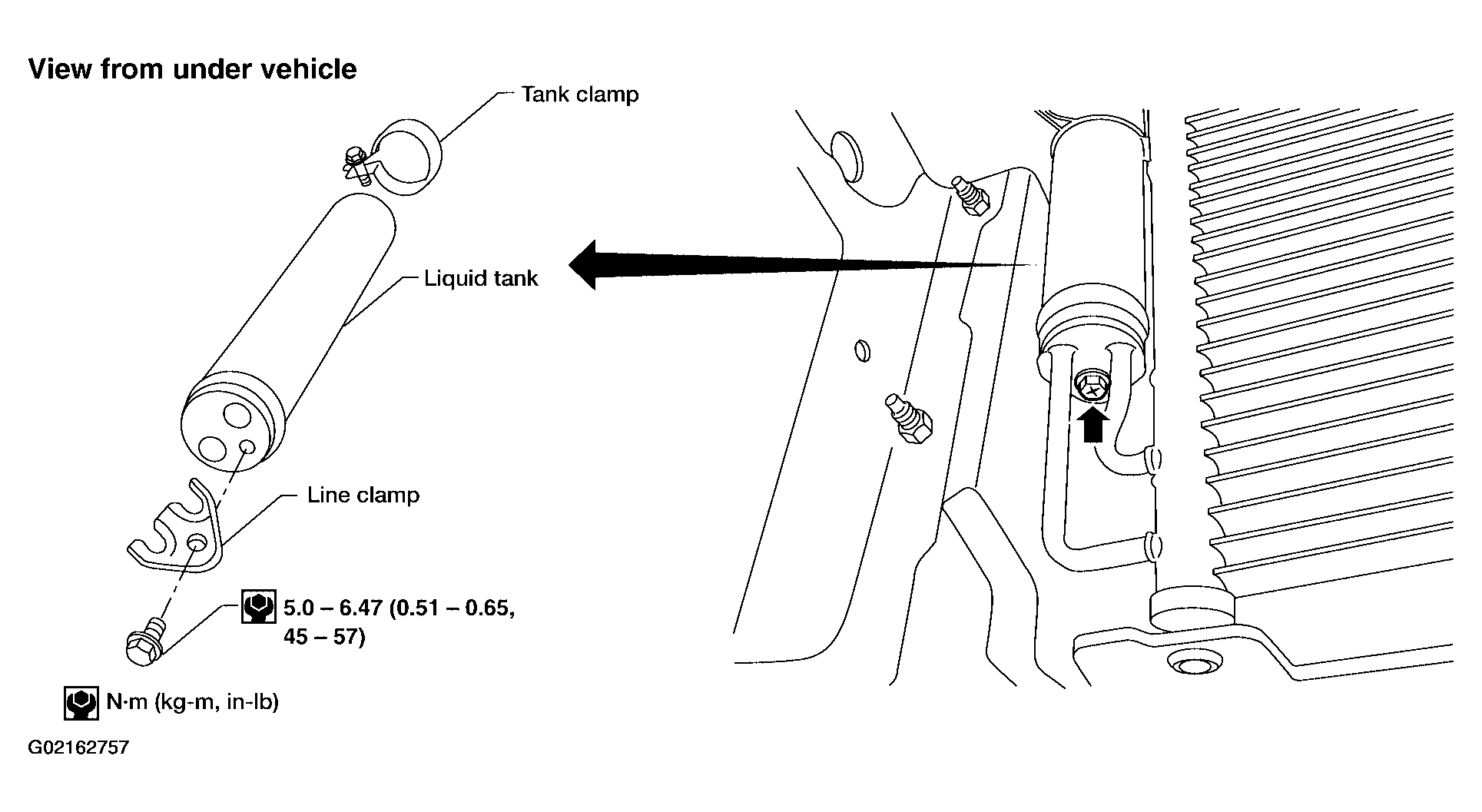

Fig 1: Removing And Installing Liquid Tank

Courtesy of NISSAN MOTOR CO., U.S.A.

Discharge the refrigerant. Refer to "HFC-134A (R-134A) SERVICE PROCEDURE ".
Remove the battery.
Remove the hood switch (if equipped).
Remove the engine undercover using power tools.
Remove the bolt and line clamp.
Loosen the tank clamp and remove the liquid tank.
