Removal and Installation for Compressor Clutch: Removal

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

When removing center bolt, hold clutch disc with clutch disc tool.
Remove the clutch disc.
Clutch disc holding tool:

(J-44614) Commercial service tool

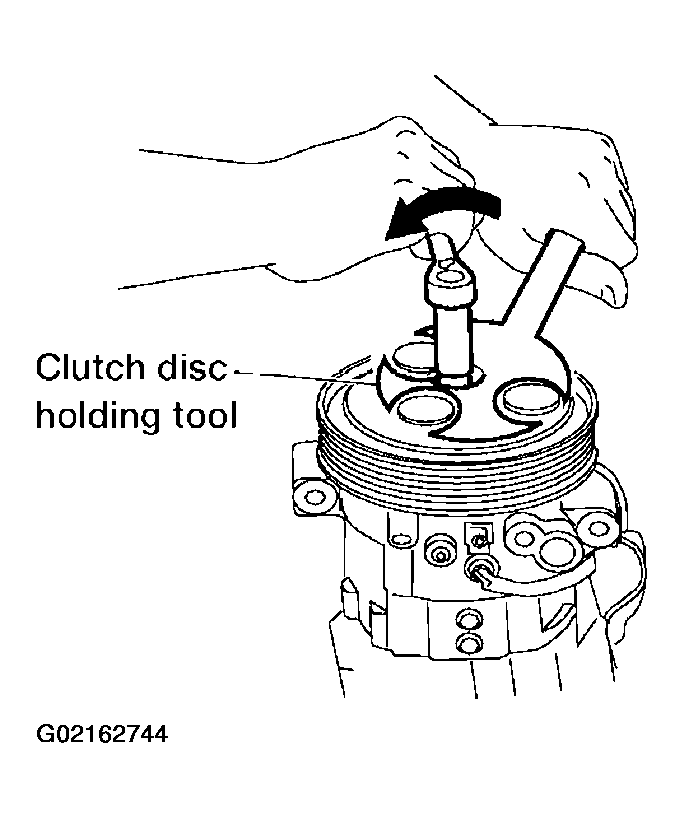

Fig 1: Removing Clutch Disc
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the snap ring using external snap ring pliers.

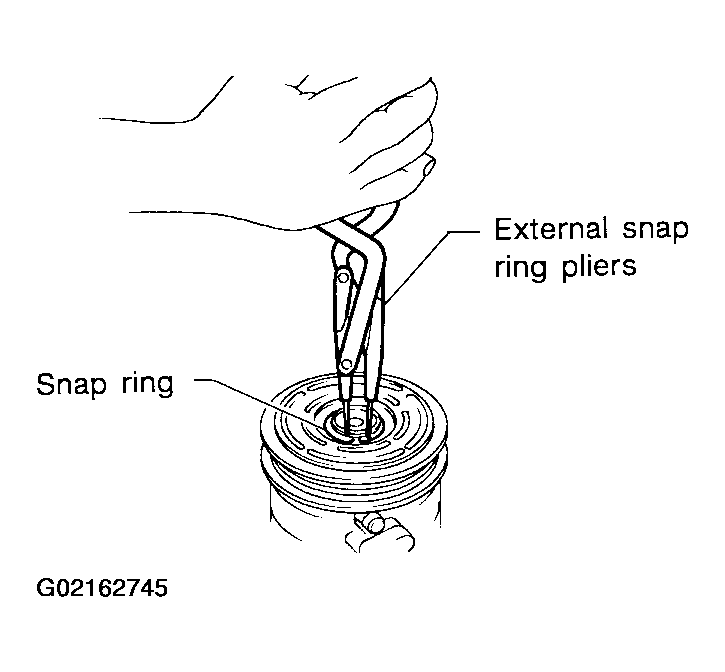

Fig 2: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Pulley removal:

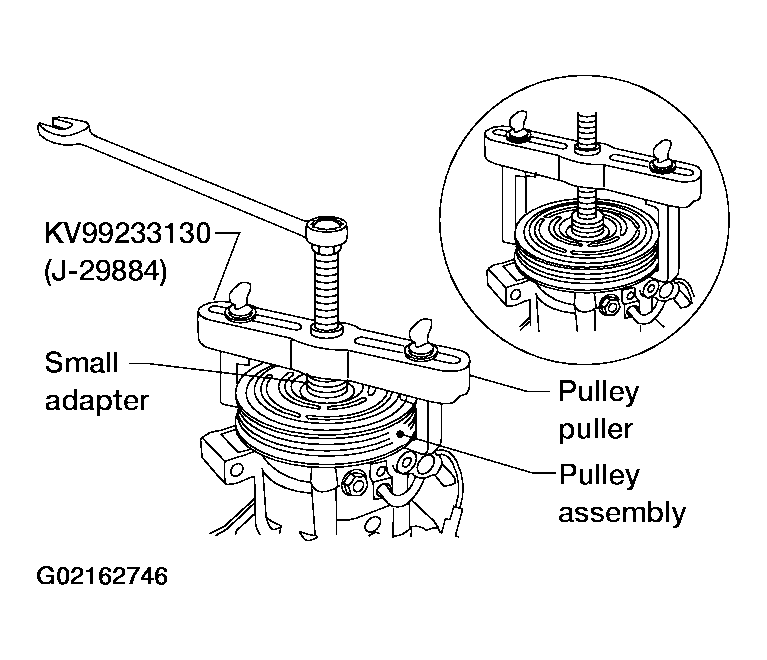

Fig 3: Removing Pulley
Courtesy of NISSAN MOTOR CO., U.S.A.

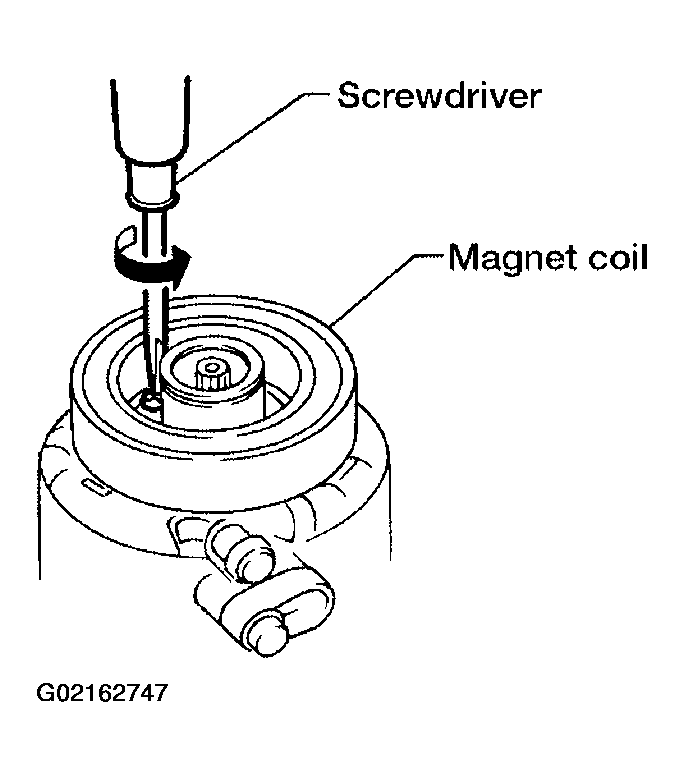

Fig 4: Identifying Magnet Coil
Courtesy of NISSAN MOTOR CO., U.S.A.

Use a pulley puller with small adapter. Position the small adapter on the end of the drive shaft and the center of the puller on the small adapter. Remove the pulley assembly with the puller.

To prevent deformation of the pulley groove, the puller claws should be hooked under (not into) the pulley groove.
Remove the snap ring using external snap ring pliers.
Remove the magnet coil harness clip using a screwdriver, remove the three magnet coil fixing screws and remove the magnet coil.
