Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the blower unit. Refer to "BLOWER UNIT ".
  2. Remove the screws and then the intake door motor from the blower unit.

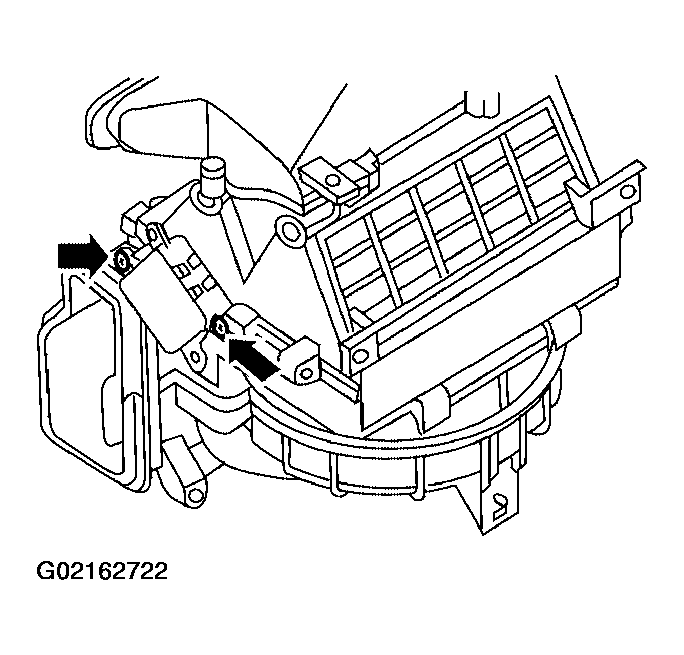

    Fig 1: Removing Intake Door Motor From Blower Unit
    G02162722Courtesy of NISSAN MOTOR CO., U.S.A.
