Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Remove heater and cooling unit. Refer to "HEATER & COOLING UNIT ASSEMBLY ".
Remove heater core pipe support screws and then remove it.

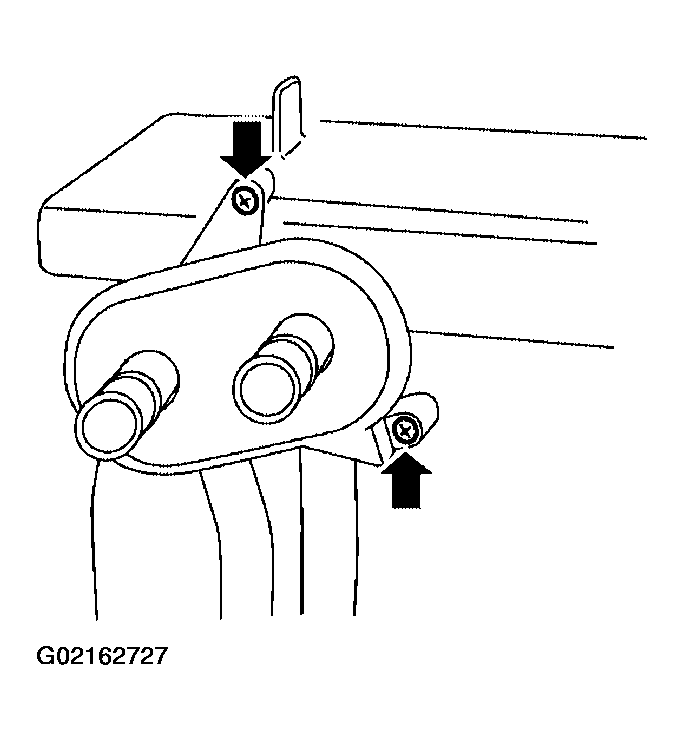

Fig 1: Removing Heater Core Pipe Support Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove heater core cover screws and then remove it.

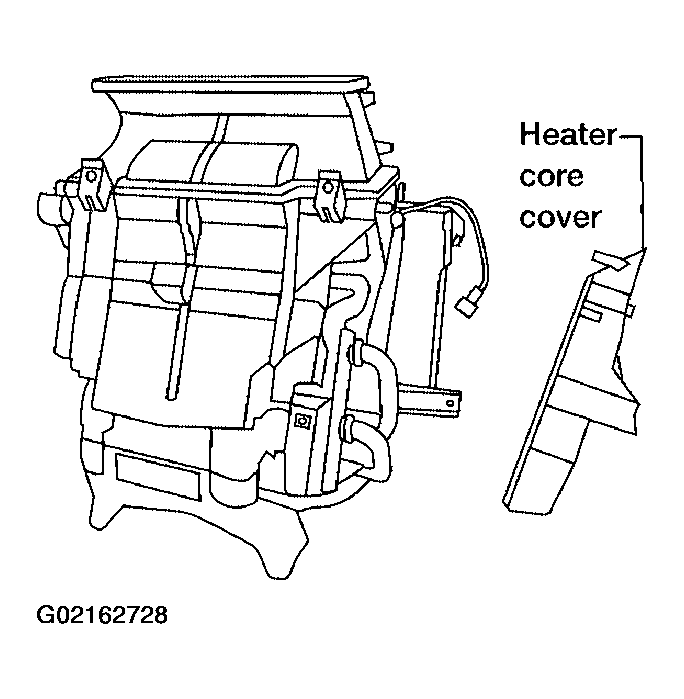

Fig 2: Removing Heater Core Cover Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove heater core.

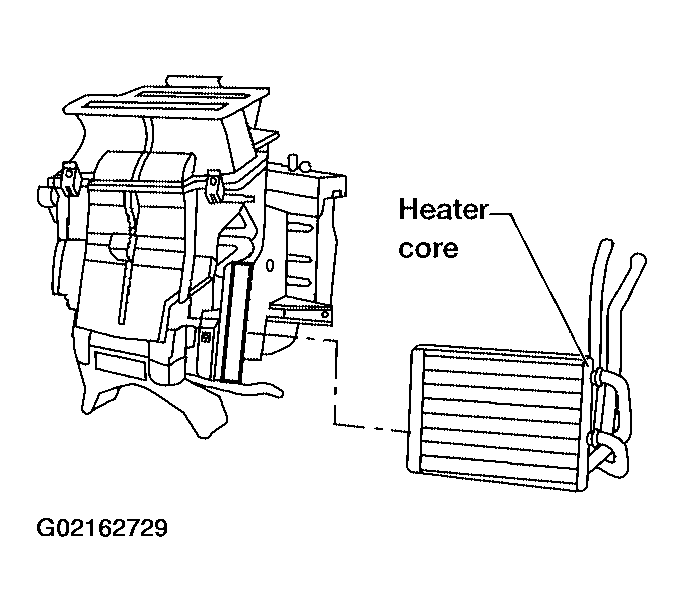

Fig 3: Removing Heater Core
Courtesy of NISSAN MOTOR CO., U.S.A.
