Side Ventilator Grille RH

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove glove box assembly. Refer to "GLOVE BOX ".
  2. Remove side ventilator grille RH screw and then remove it.

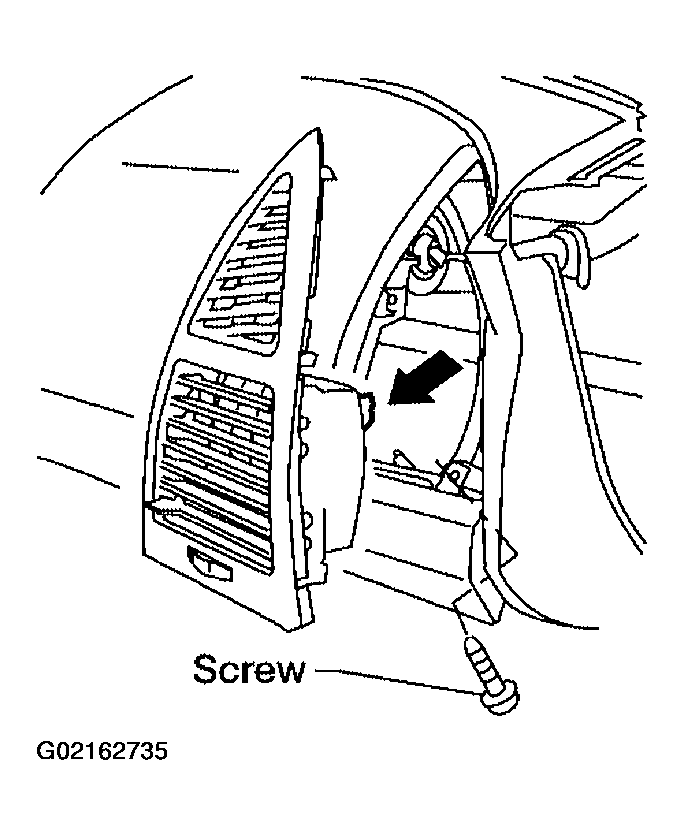

    Fig 1: Removing Side Ventilator Grille RH Screw
    G02162735Courtesy of NISSAN MOTOR CO., U.S.A.
