Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove box assembly. Refer to "GLOVE BOX ".
  2. Remove the ECM.
  3. Disconnect the blower motor, intake door motor and fan control amp. connector.
  4. Remove the 2 bolts and 1 screw from the blower unit, then remove it.

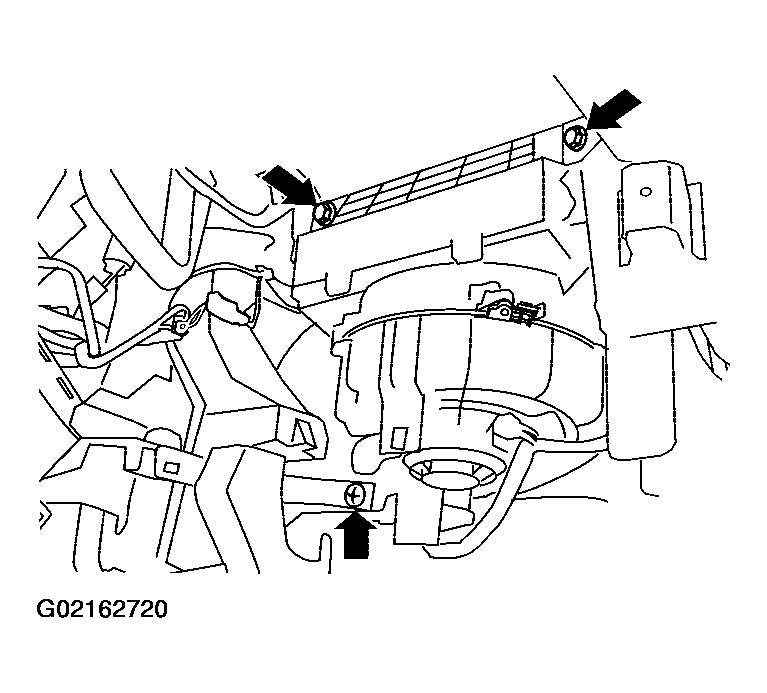

    Fig 1: Removing Blower Unit
    G02162720Courtesy of NISSAN MOTOR CO., U.S.A.
