Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the blower unit. Refer to "BLOWER UNIT ".
  2. Release the 8 tabs attaching blower motor to blower unit case and then remove it.

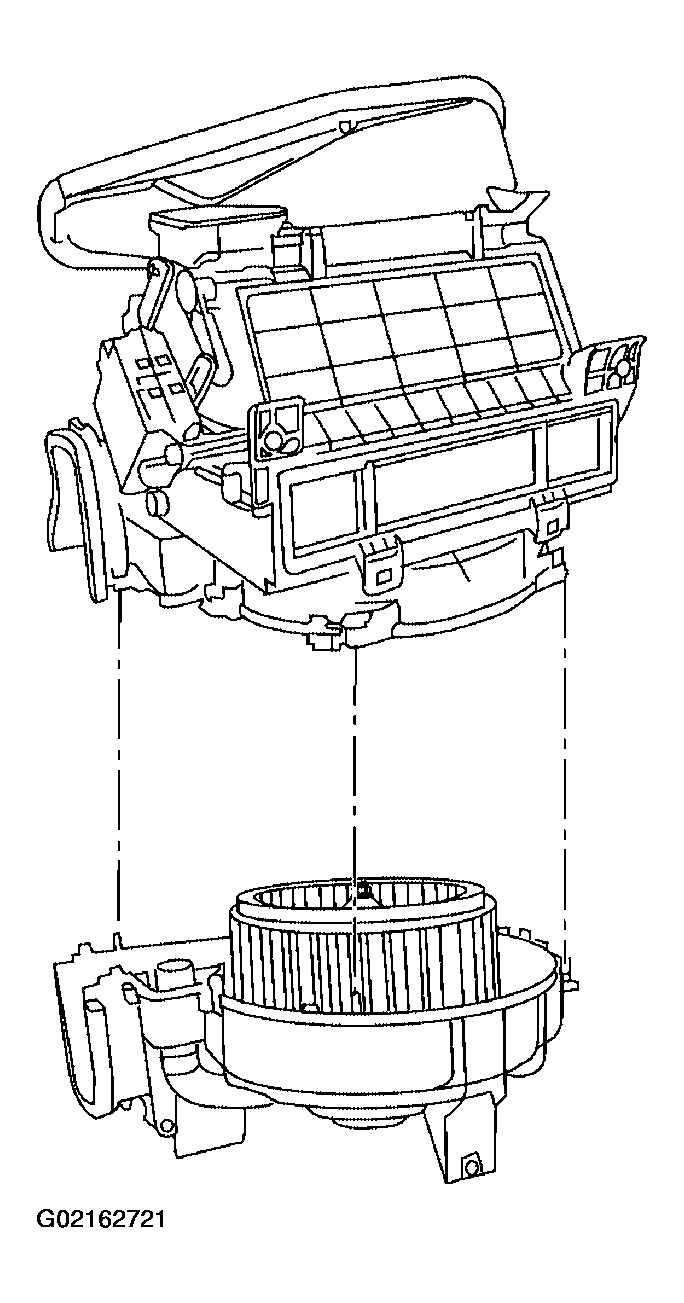

    Fig 1: Removing Blower Motor From Blower Unit Case
    G02162721Courtesy of NISSAN MOTOR CO., U.S.A.
