Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect blower motor resistor connector.
  2. Remove blower motor resistor screws and then remove it.

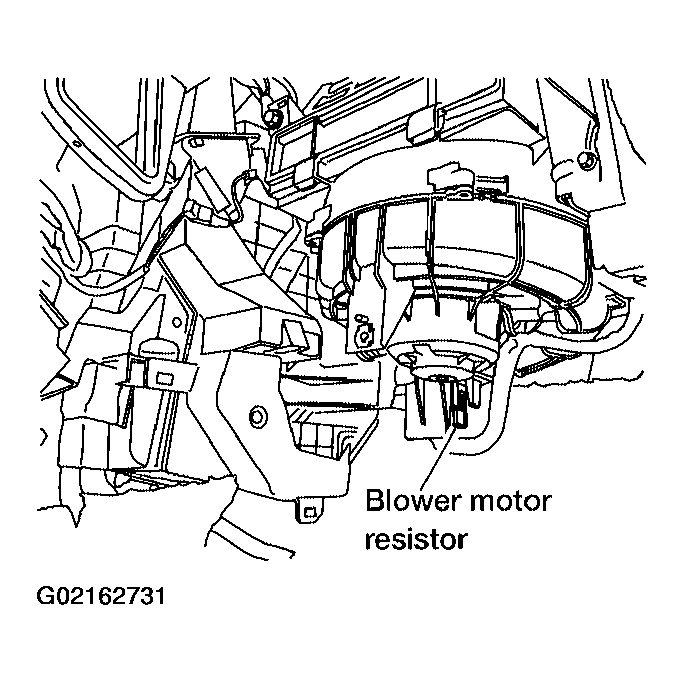

    Fig 1: Removing Blower Motor Resistor Screws
    G02162731Courtesy of NISSAN MOTOR CO., U.S.A.
