WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

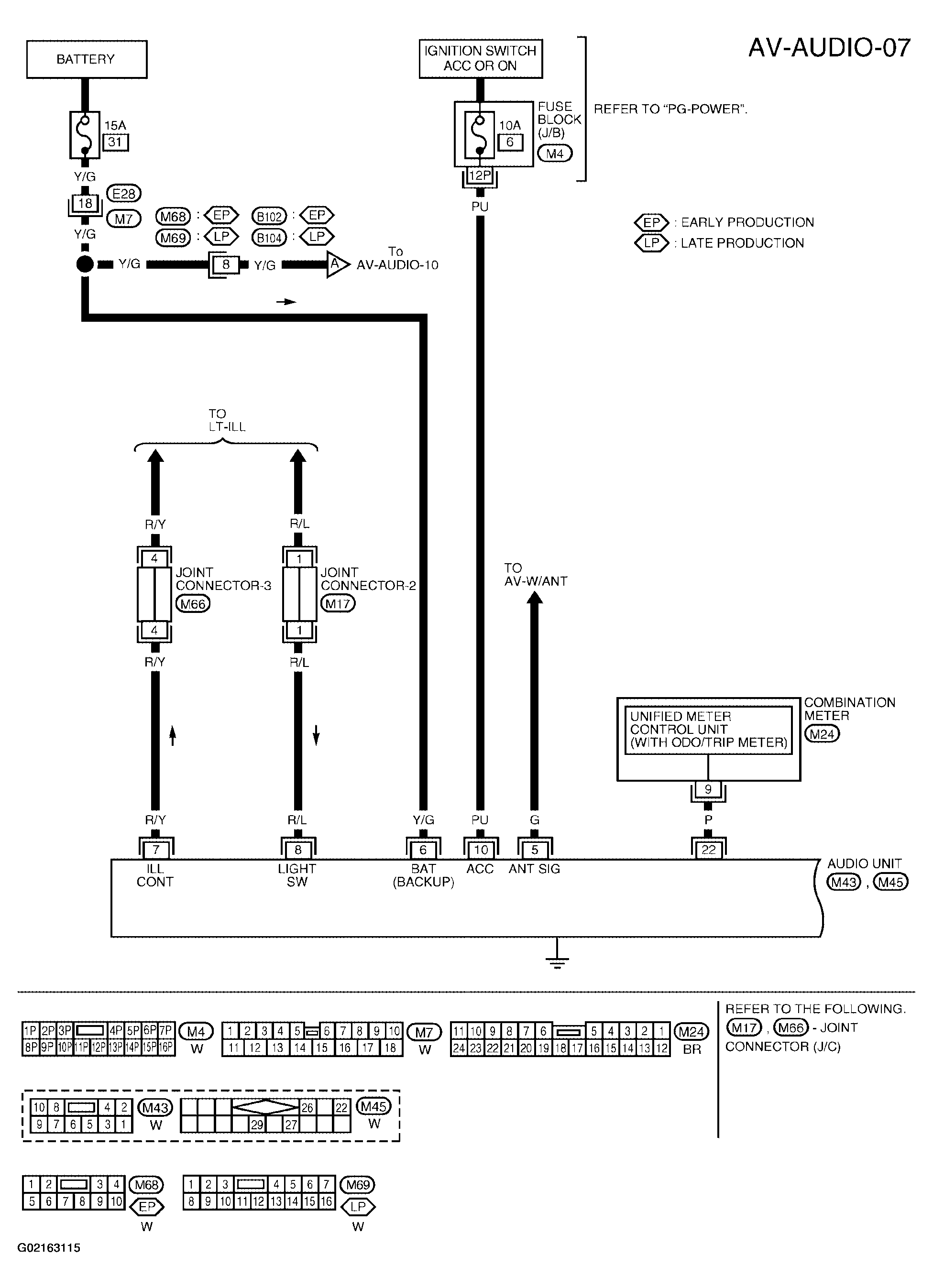

Fig 1: Wiring Diagram - AUDIO - Bose System (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

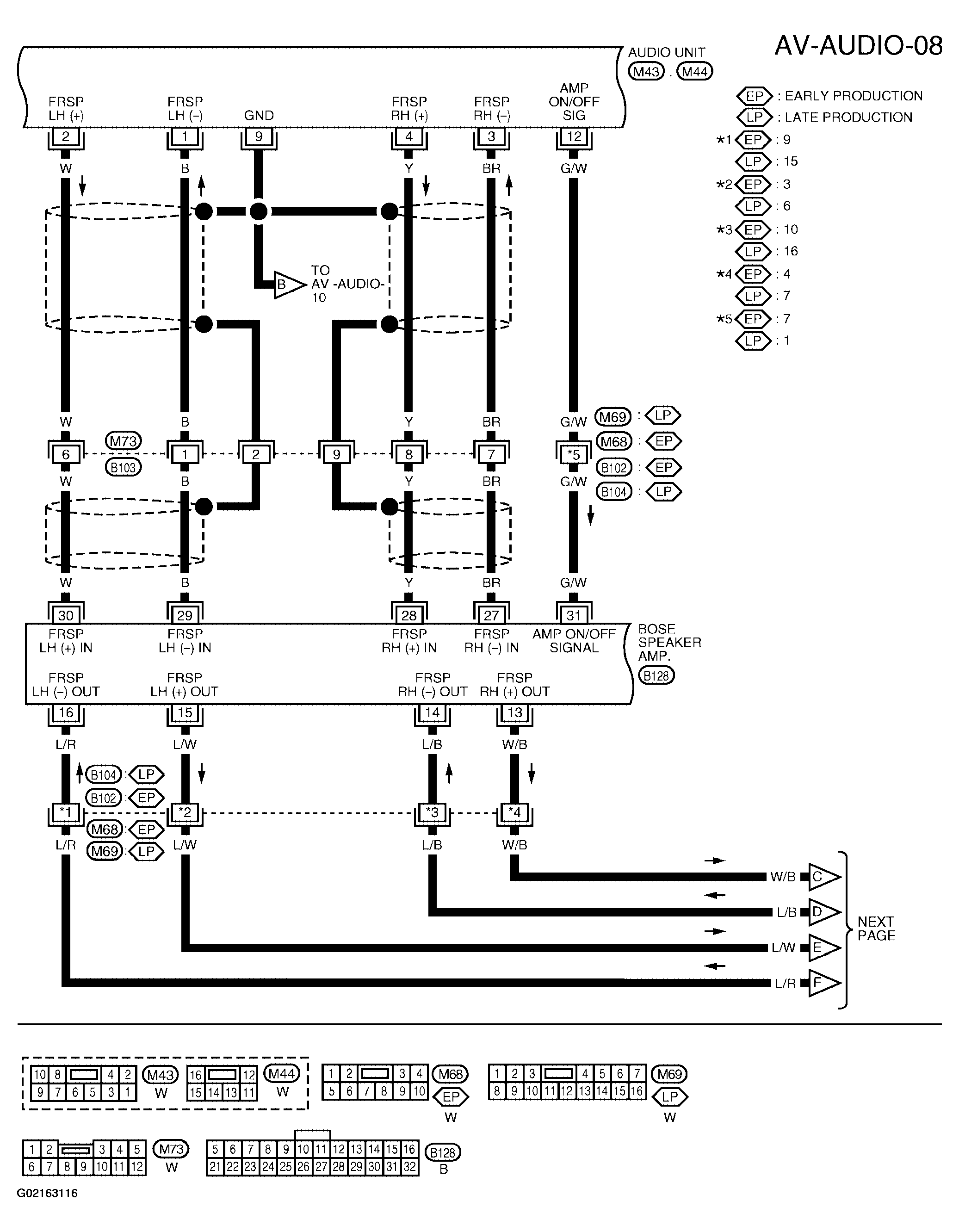

Fig 2: Wiring Diagram - AUDIO - Bose System (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

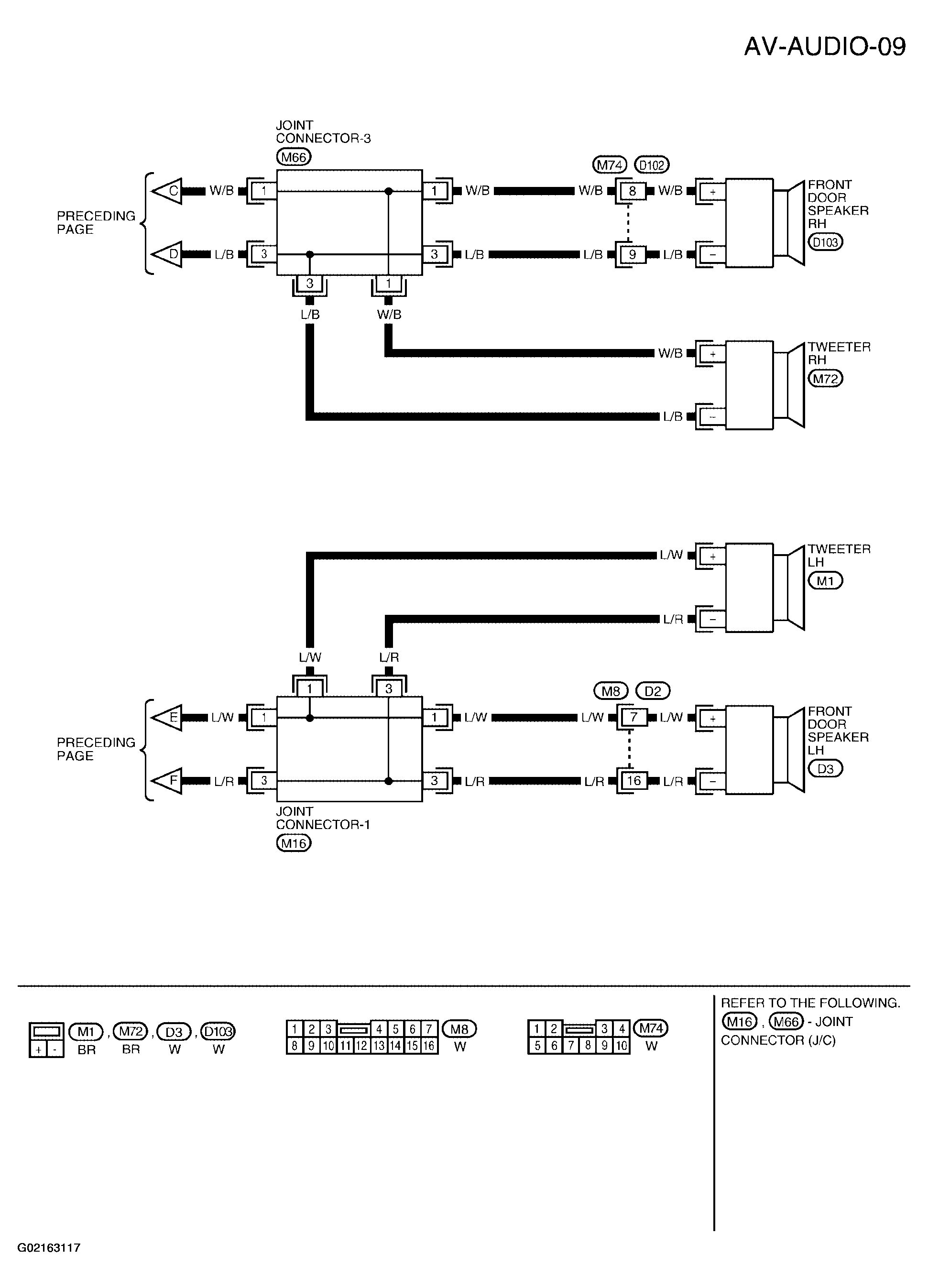

Fig 3: Wiring Diagram - AUDIO - Bose System (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

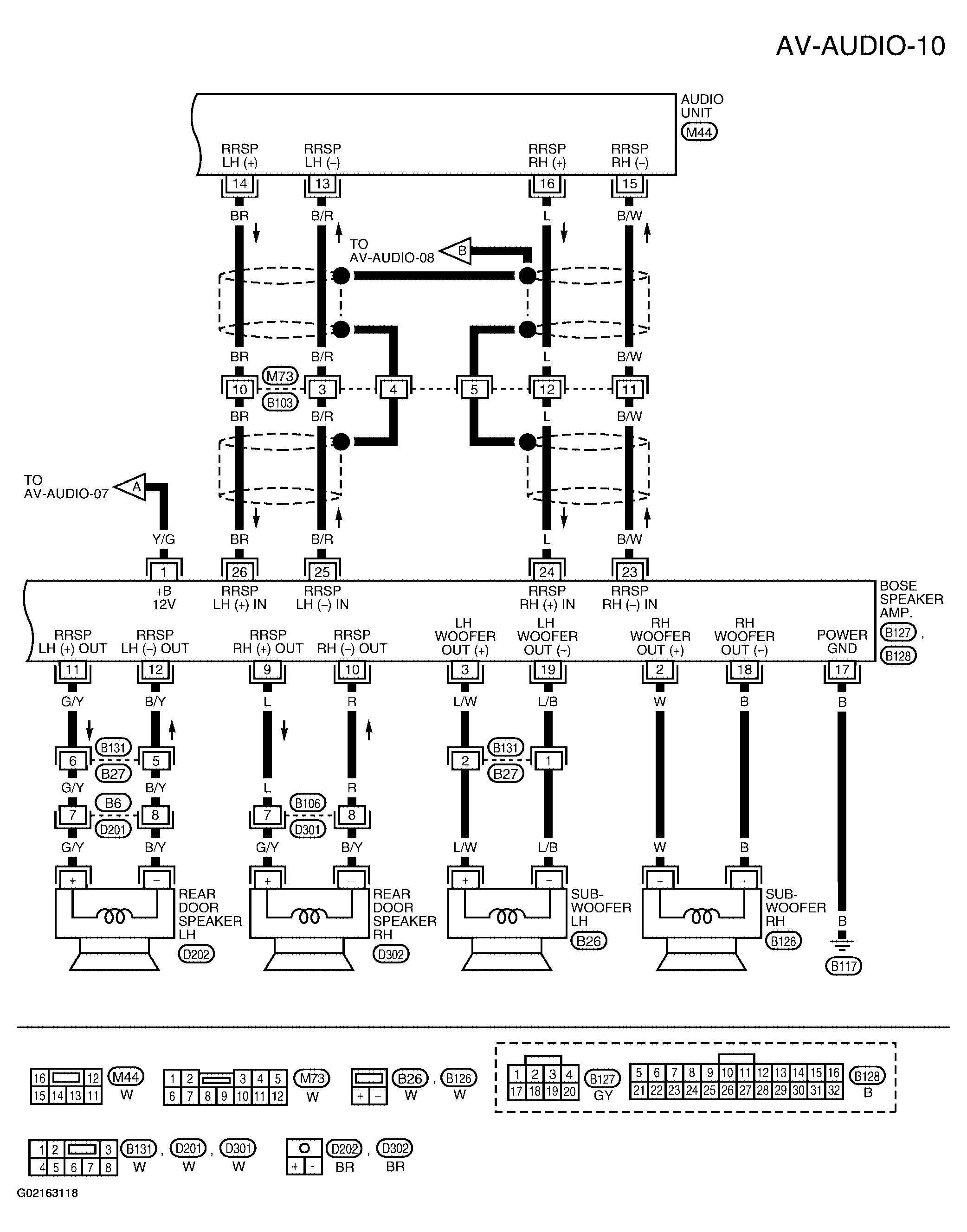

Fig 4: Wiring Diagram - AUDIO - Bose System (4 Of 4)
