Door Speaker

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door finisher. Refer to "DOOR FINISHER ".
  2. Remove screws and speaker.
  3. Disconnect speaker connector.

    Install in the reverse order of removal.

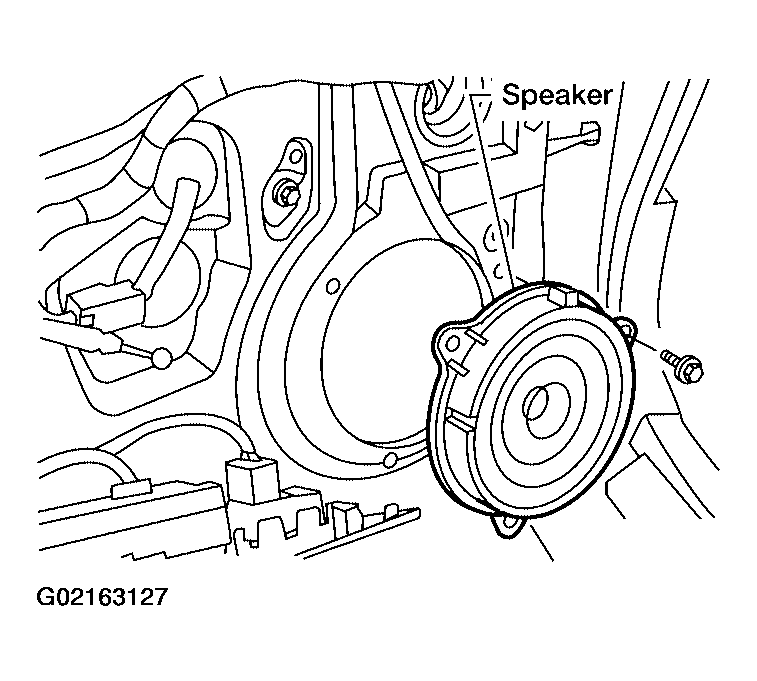

    Fig 1: Removing/Installing Door Speaker
    G02163127Courtesy of NISSAN MOTOR CO., U.S.A.
