Section 806 (Audio System, Visual System & Telephone System)
>>
Audio Antenna
>>
Wiring Diagram -W/ANT-
Wiring Diagram -W/ANT-
WARNING:
This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

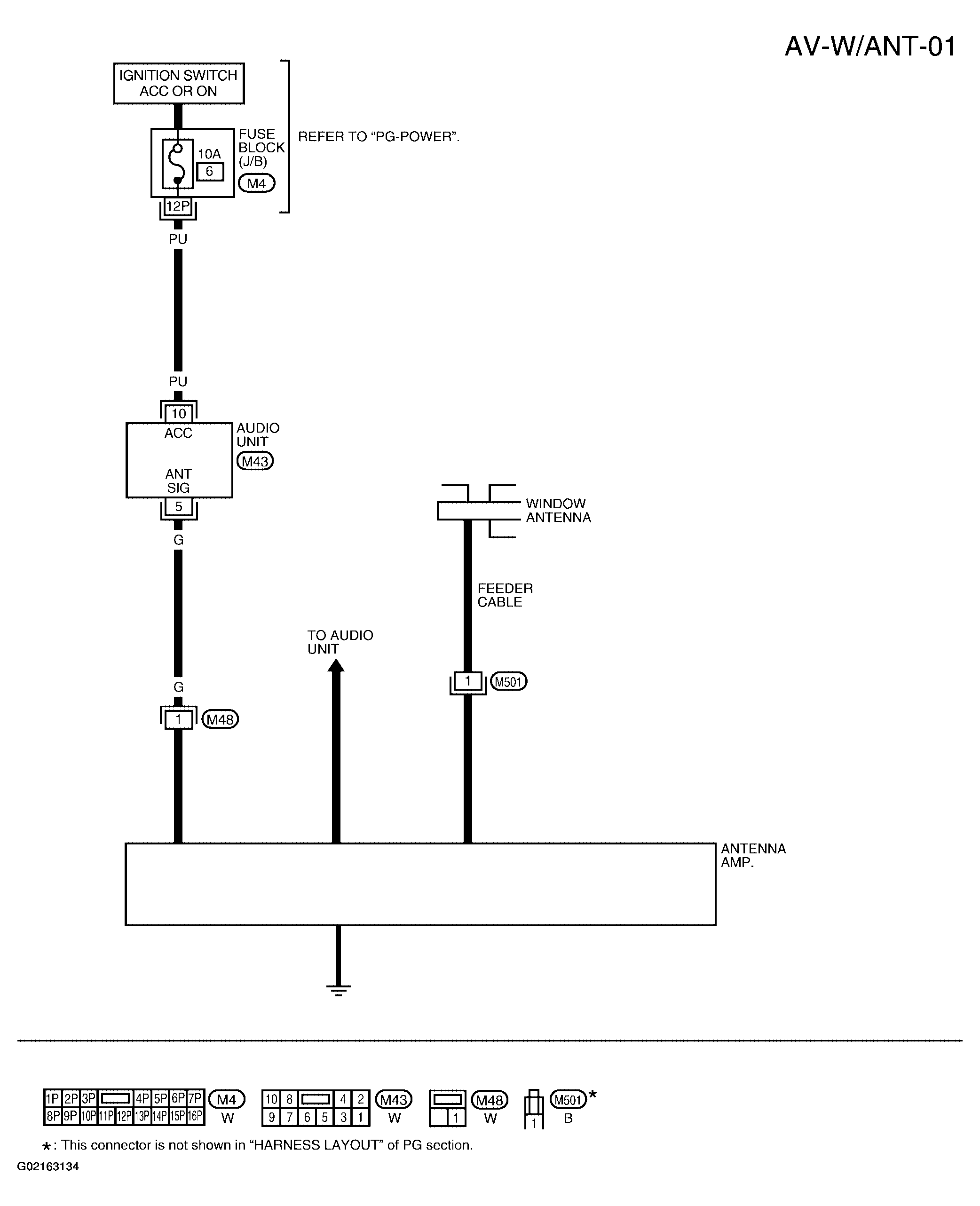

Fig 1: Wiring Diagram -W/ANT-
Courtesy of NISSAN MOTOR CO., U.S.A.
