Self-Diagnosis Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

With the ignition switch OFF, connect CONSULT-II to the data link connector, and turn the ignition switch ON.

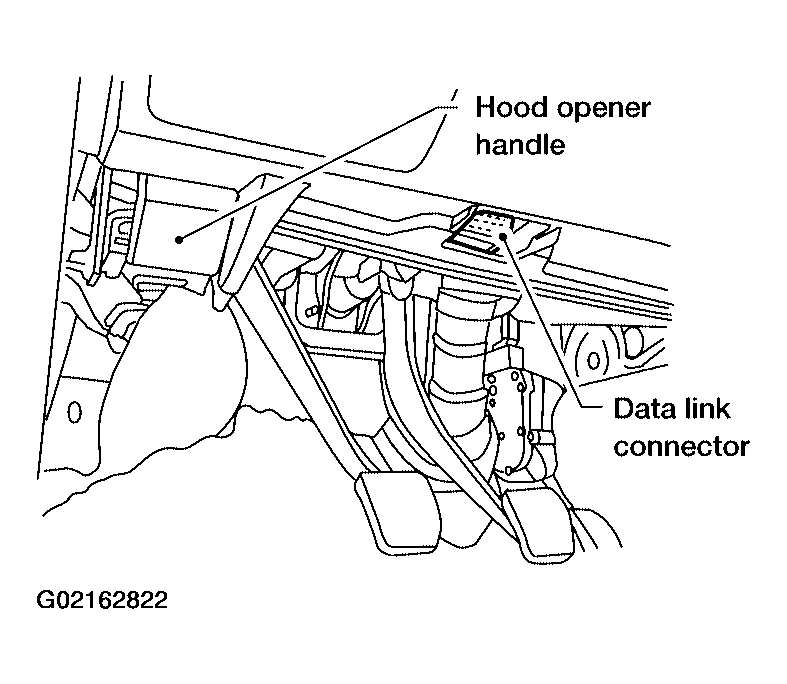

Fig 1: Locating CONSULT-II Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

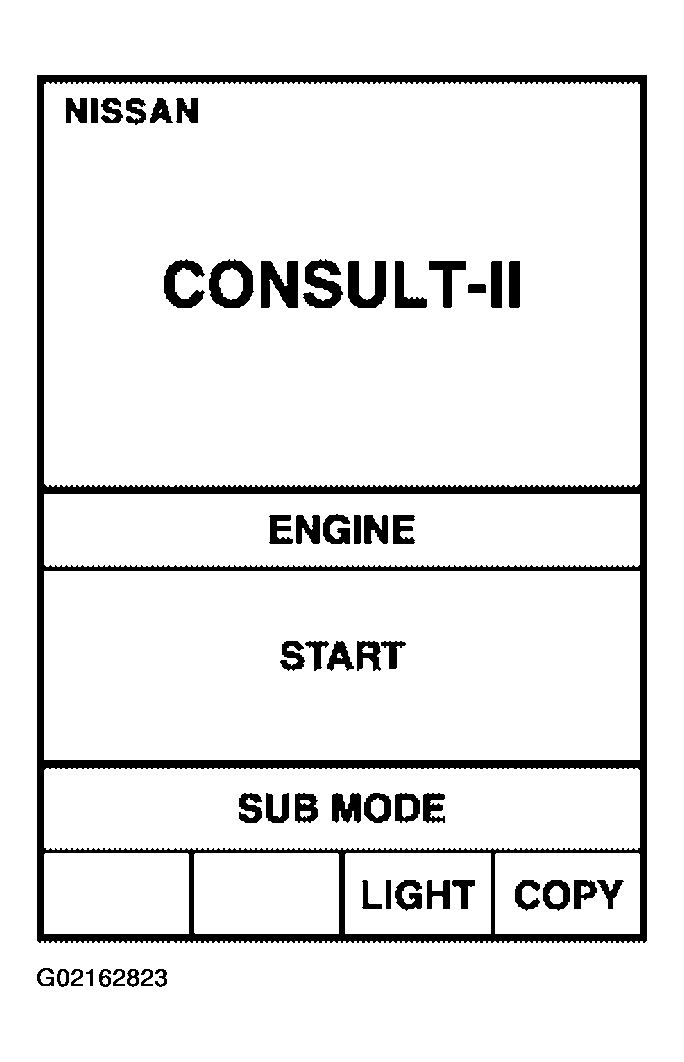

Fig 2: Displaying CONSUTLT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on the "SELECT SYSTEM" screen.
NOTE: If "BCM" is selected, a further selection of "BCM C/U" must be selected before proceeding with the following step.

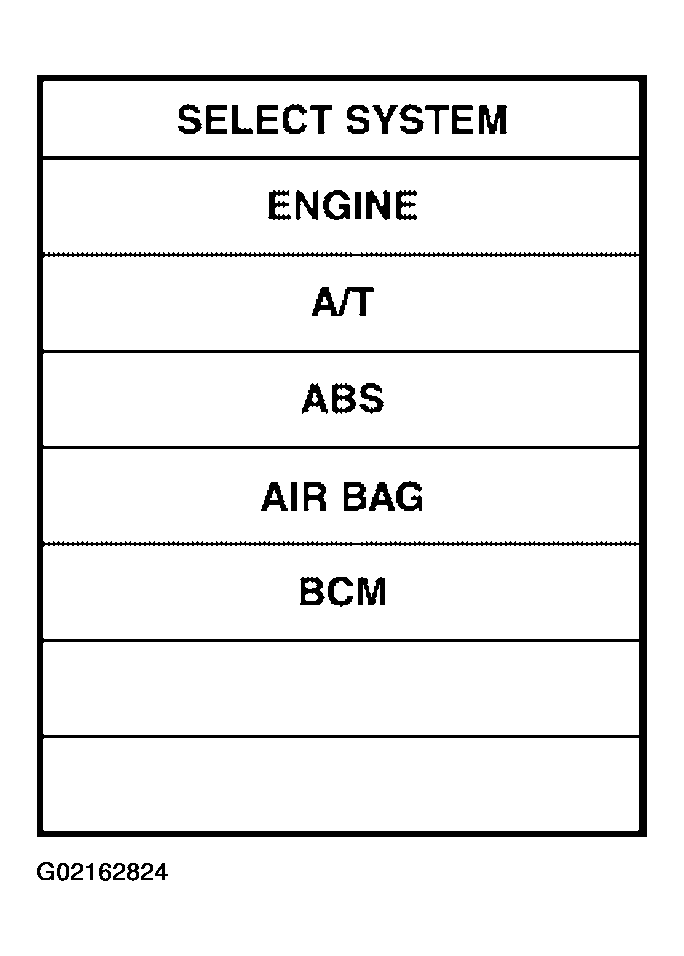

Fig 3: Displaying Select System
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SELF-DIAG RESULTS".
Make the necessary repairs following the diagnostic procedures.

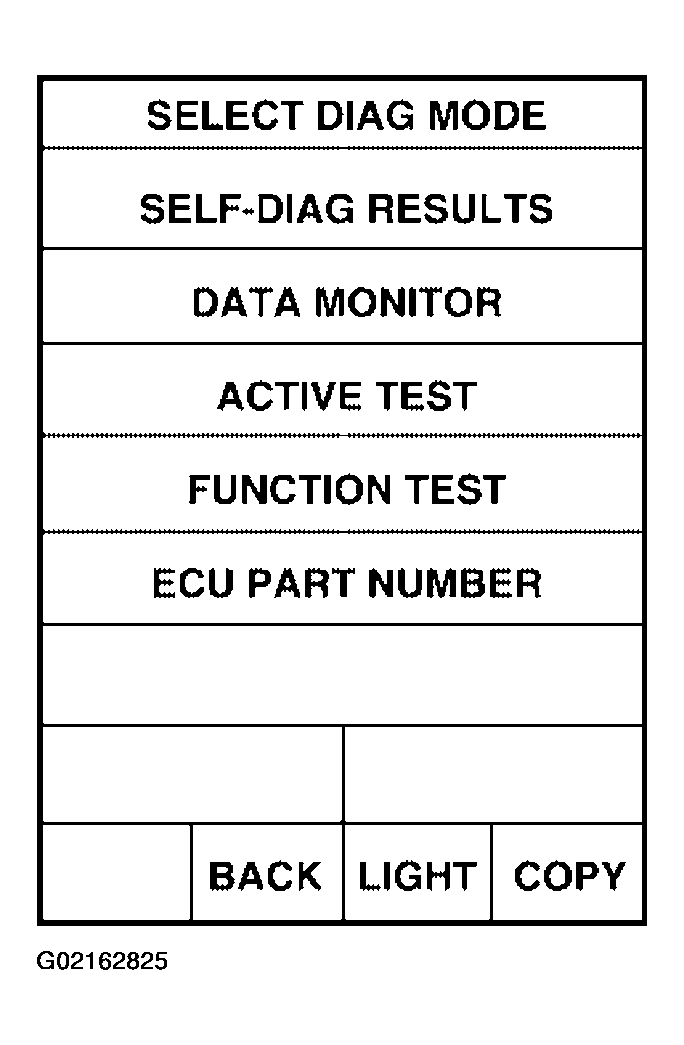

Fig 4: Displaying Self-Diag Results
Courtesy of NISSAN MOTOR CO., U.S.A.
After the malfunctions are repaired, erase the self-diagnostic results stored in the control unit by touching "ERASE".
