How To Alternate Diagnosis Mode

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch ON, and switch the odometer/trip meter to "trip A" or "trip B".
    NOTE: If the diagnosis function is activated with the trip meter A displayed, the mileage on the trip meter A will indicate 000.0 miles, but the actual trip mileage will be retained. (Trip B operates the same way.)
  2. Turn the ignition switch OFF.
  3. While pushing the odo/trip meter switch, turn the ignition switch ON again.
  4. Check that the trip meter displays "000.0".
  5. Push the odo/trip meter switch at least 7 times within 7 seconds.
  6. All the segments on the odo/trip meter illuminate, and simultaneously the low-fuel warning lamp indicator illuminates. At this time, the unified meter control unit is turned to diagnosis mode.
    NOTE: If any of the segments is not displayed, replace the combination meter.

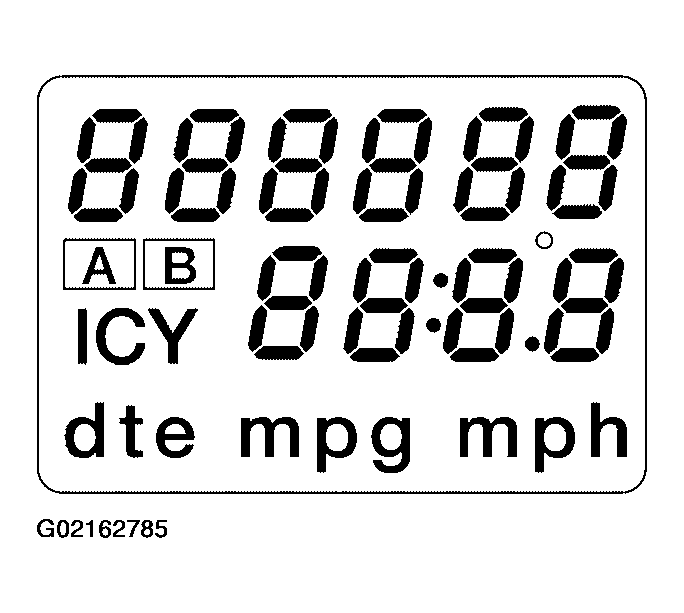

    Fig 1: Identifying Odo/Trip Meter Display Pattern
    G02162785Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Push the odo/trip meter switch. Each meter/gauge should indicate as shown in the figure while pushing odo/trip meter switch. (At this time, the low-fuel warning lamp goes off).

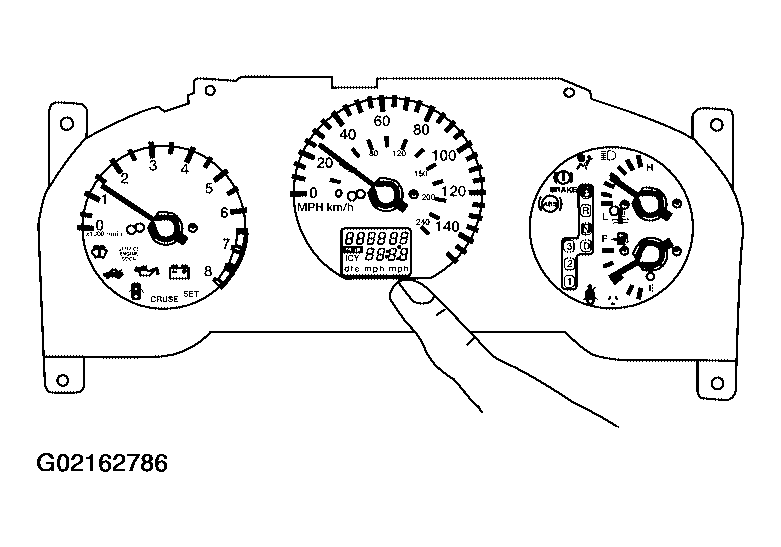

    Fig 2: Identifying Odo/Trip Meter
    G02162786Courtesy of NISSAN MOTOR CO., U.S.A.
