Section 801 (Ground Circuit)
>>
Ground Circuit
>>
Ground Distribution
>>
Body Harness
Body Harness
WARNING:
This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

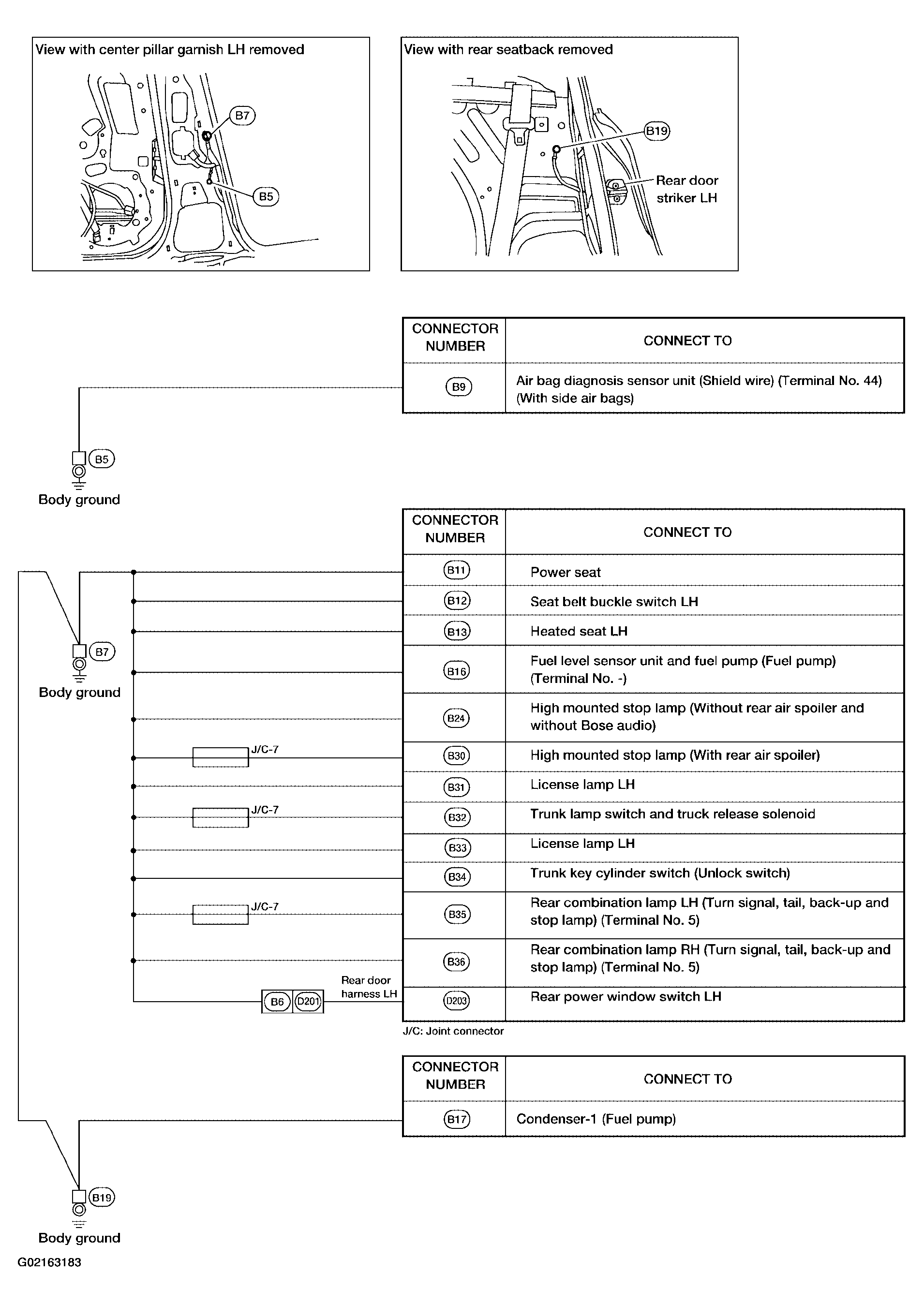

Fig 1: Body Harness Ground Distribution Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
