Ignition Power Supply - Ignition SW. In On And/Or Start
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

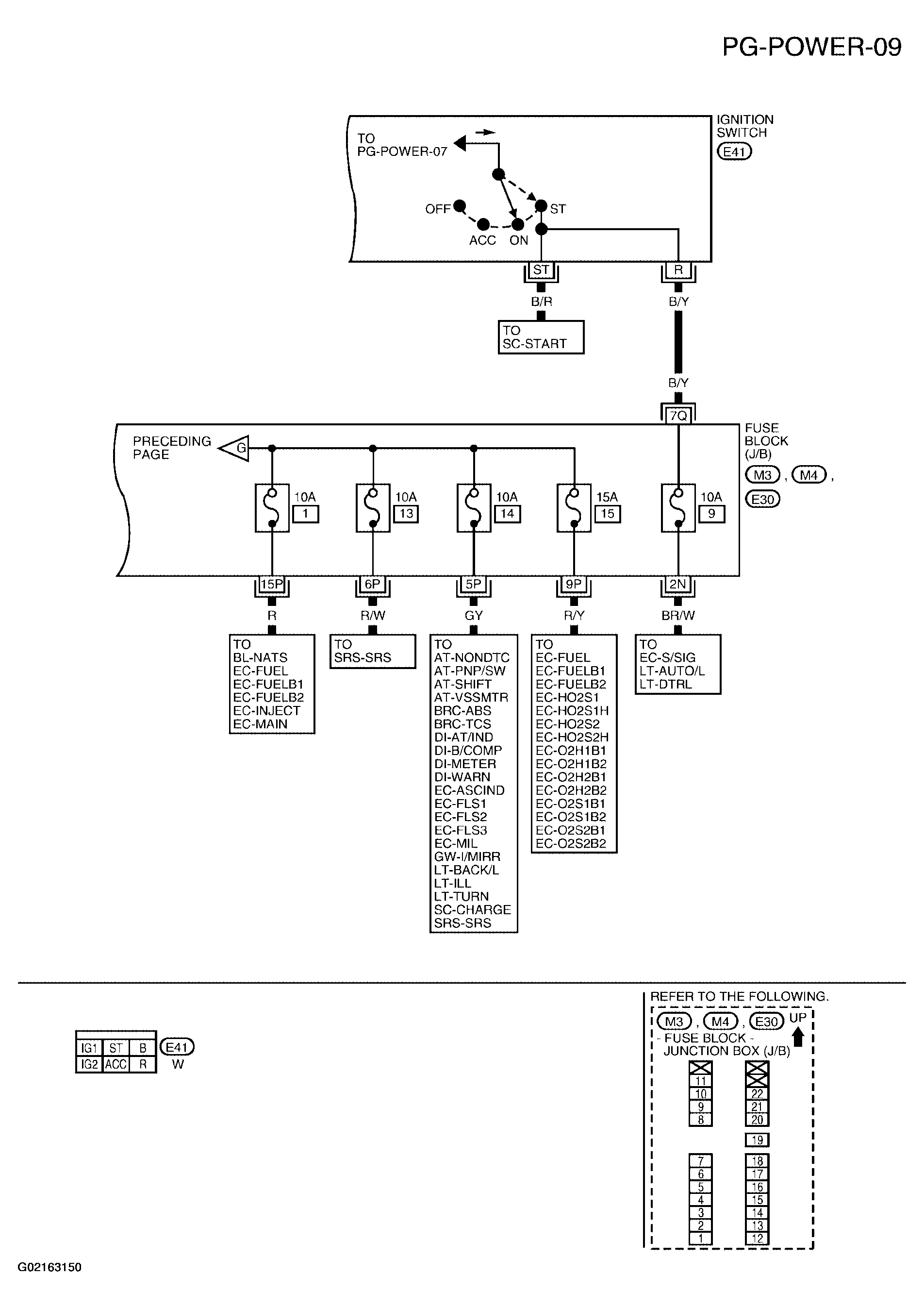

Fig 1: Wiring Diagram - Ignition Power Supply - Ignition SW. In On And/Or Start (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

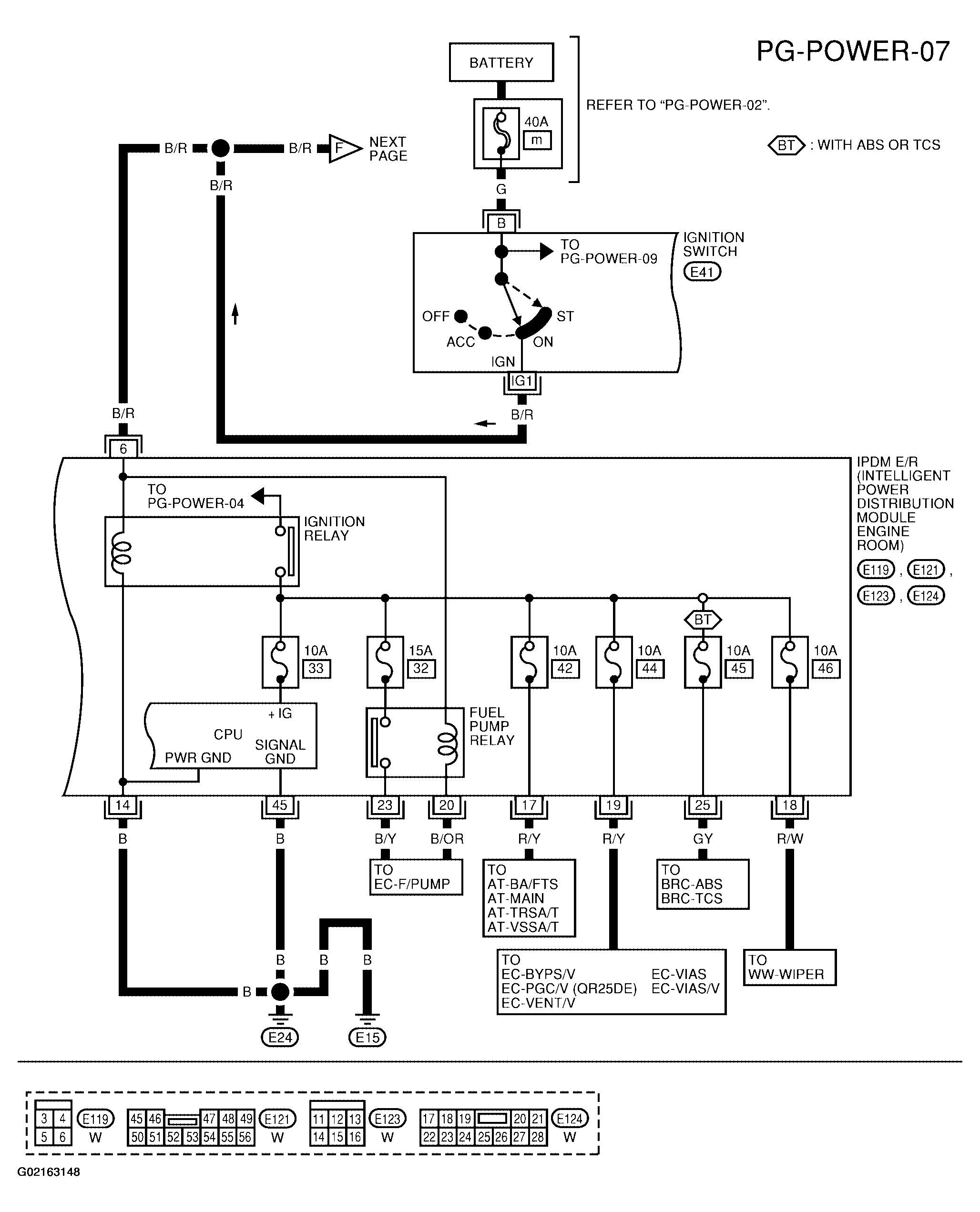

Fig 2: Wiring Diagram - Ignition Power Supply - Ignition SW. In On And/Or Start (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

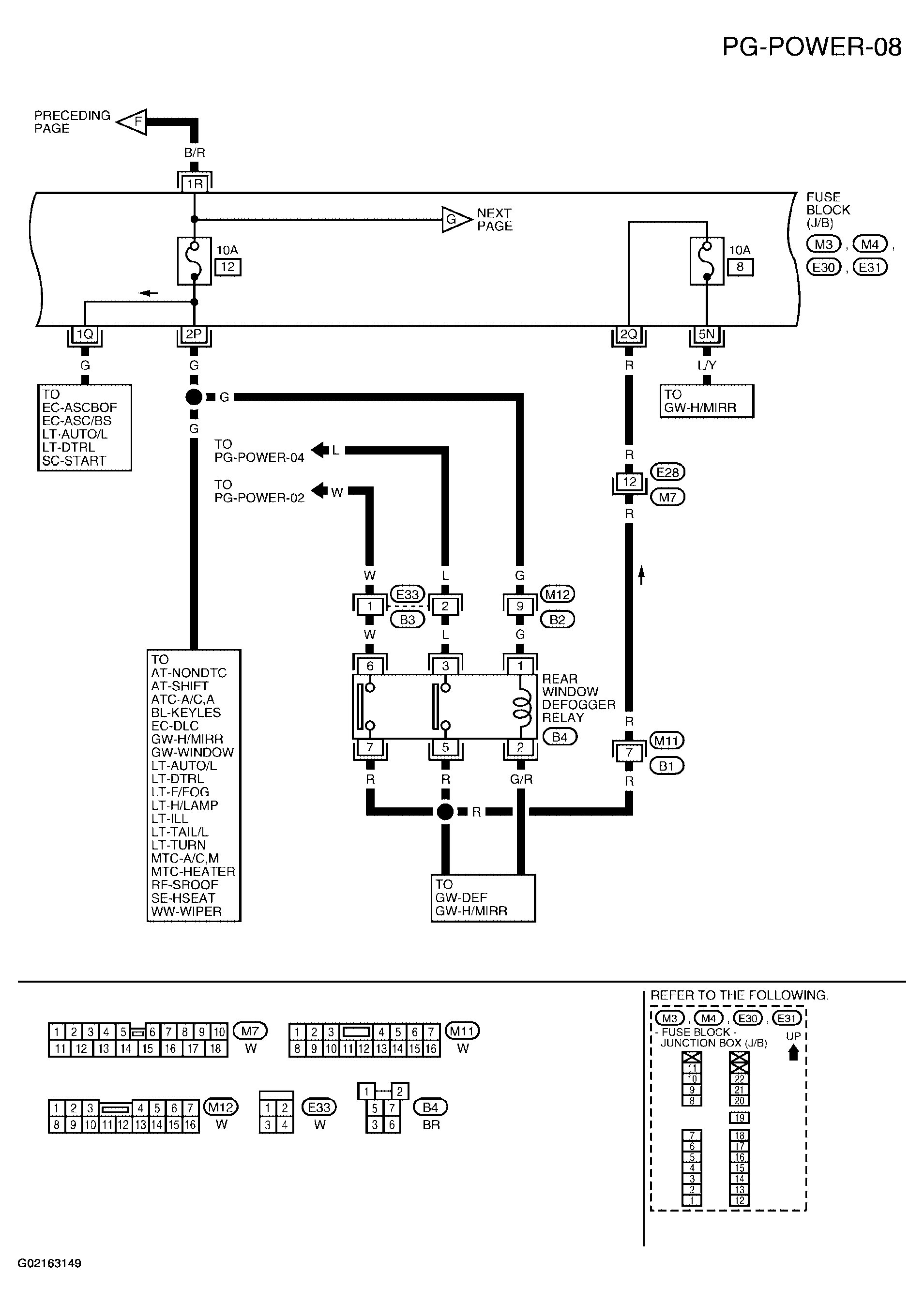

Fig 3: Wiring Diagram - Ignition Power Supply - Ignition SW. In On And/Or Start (3 Of 3)
