Battery Power Supply - Ignition SW. In Any Position
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

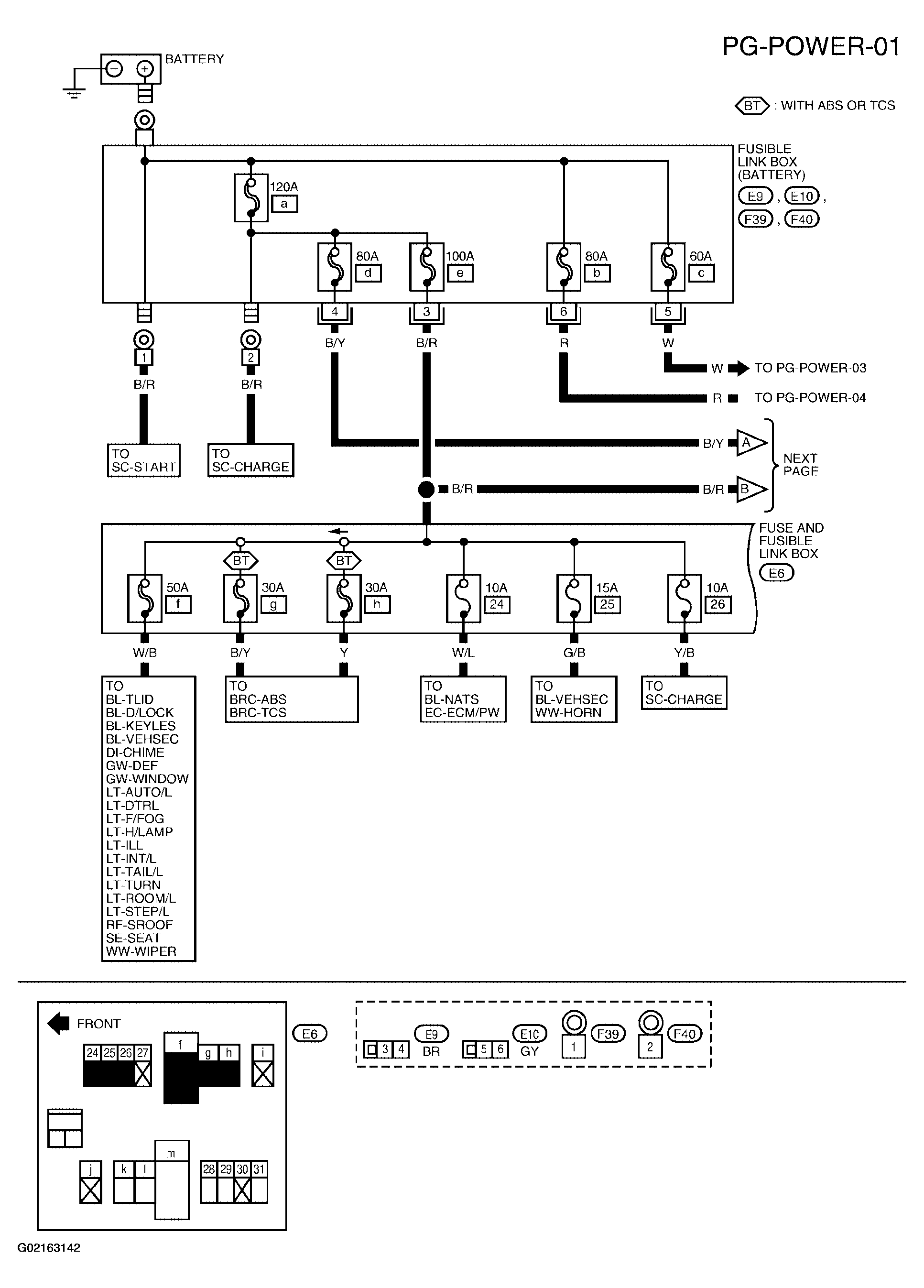

Fig 1: Wiring Diagram - Battery Power Supply - Ignition SW. In Any Position (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

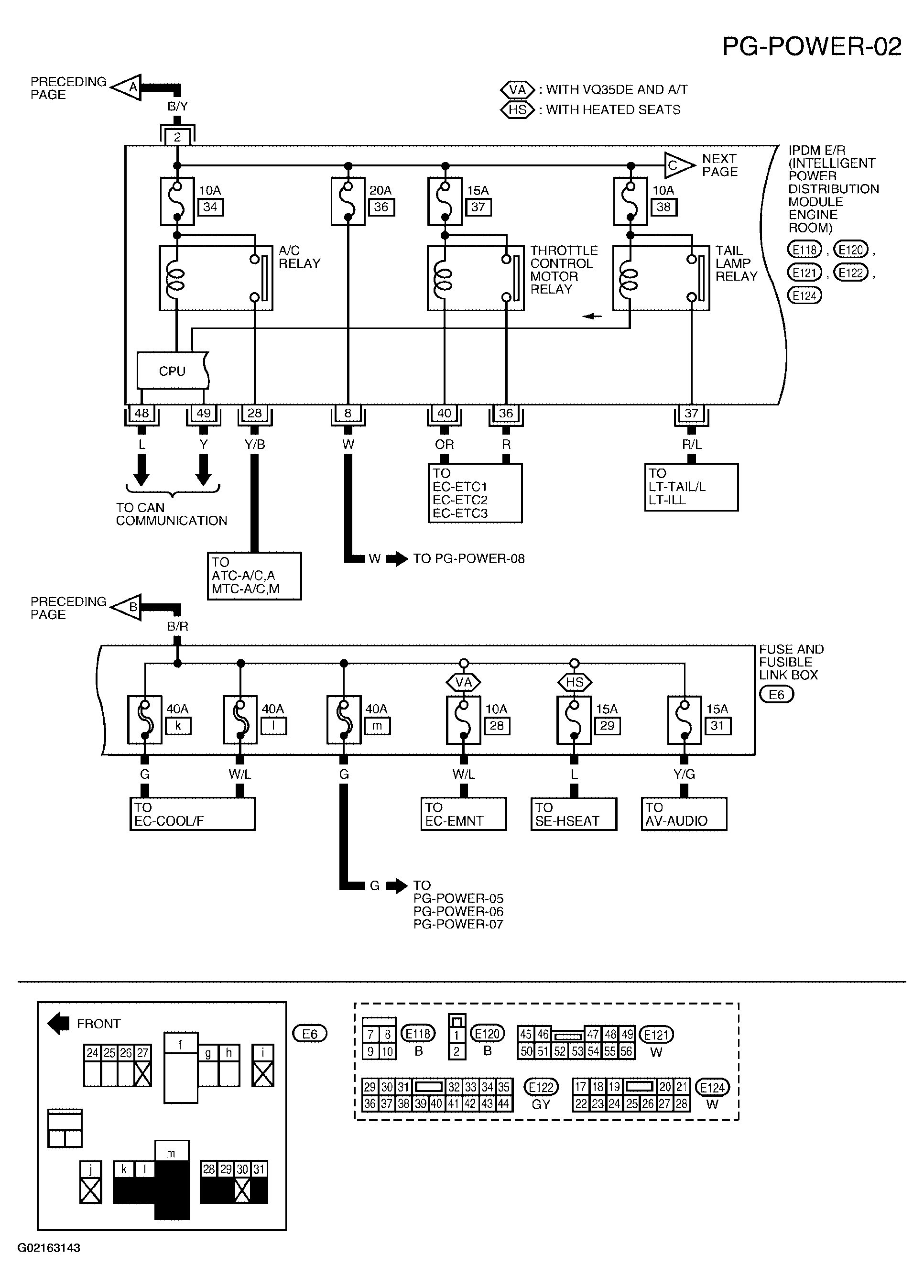

Fig 2: Wiring Diagram - Battery Power Supply - Ignition SW. In Any Position (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

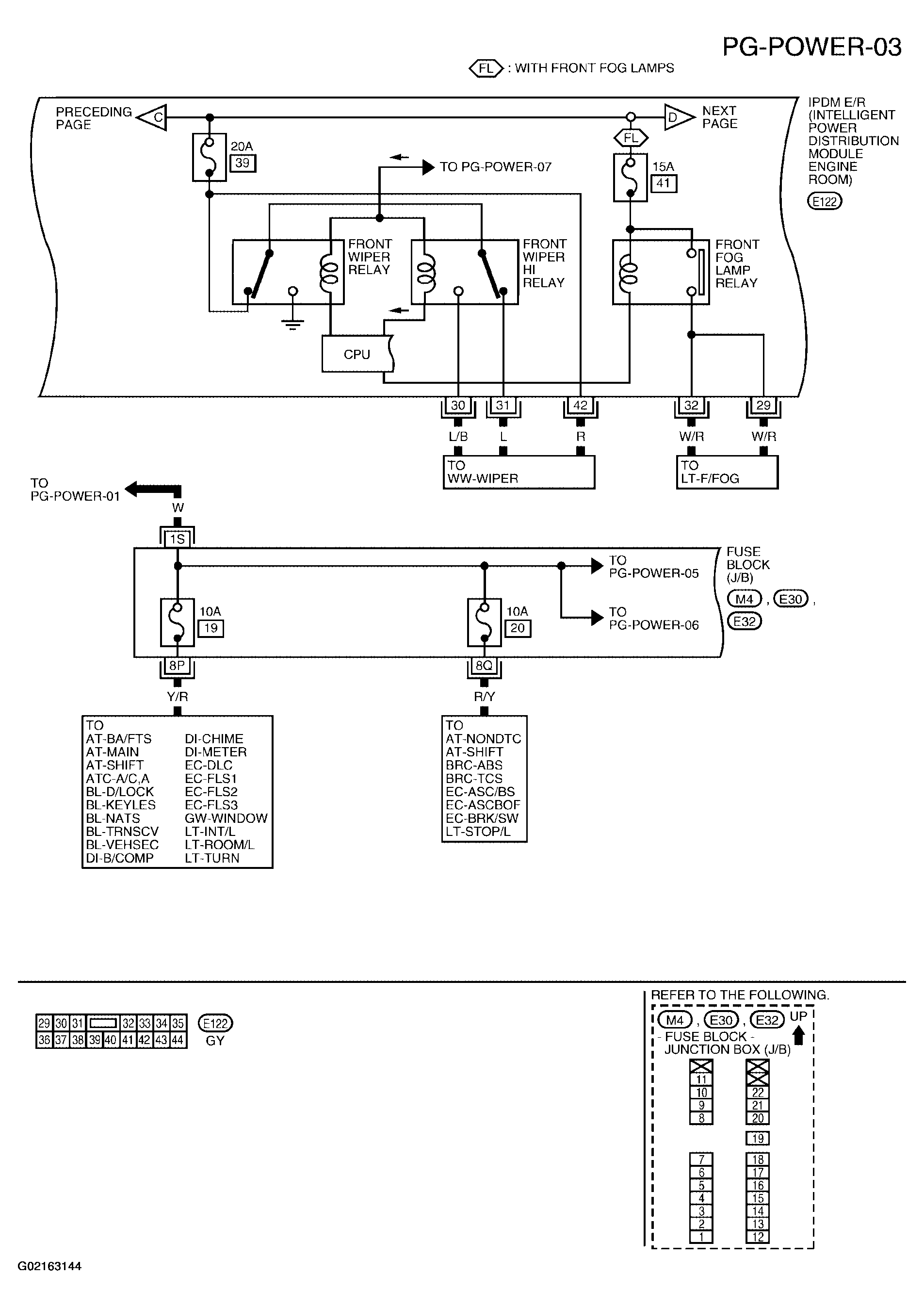

Fig 3: Wiring Diagram - Battery Power Supply - Ignition SW. In Any Position (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

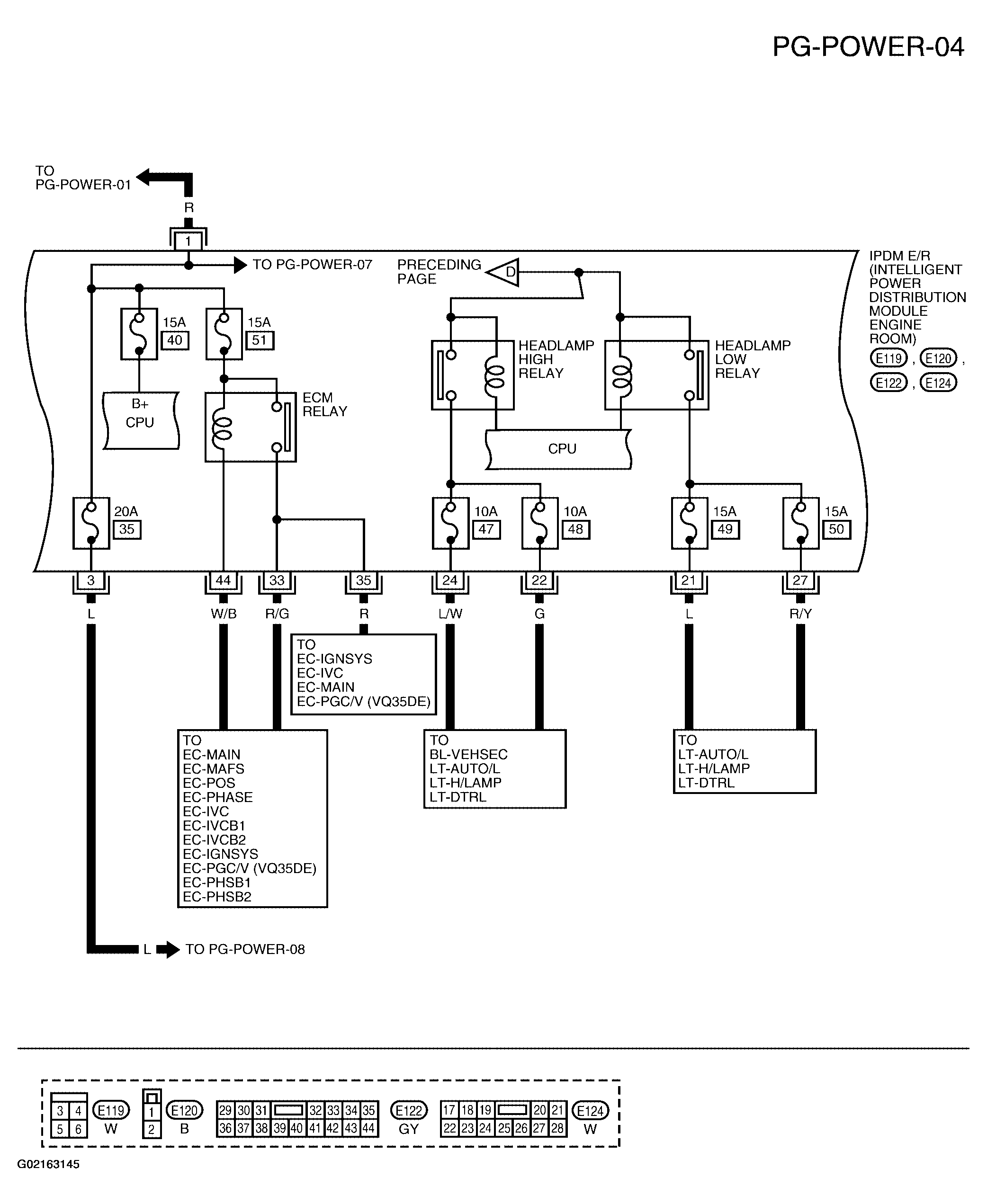

Fig 4: Wiring Diagram - Battery Power Supply - Ignition SW. In Any Position (4 Of 4)
