Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK POWER SUPPLY FOR AUTO AMP. (LCU) SIDE

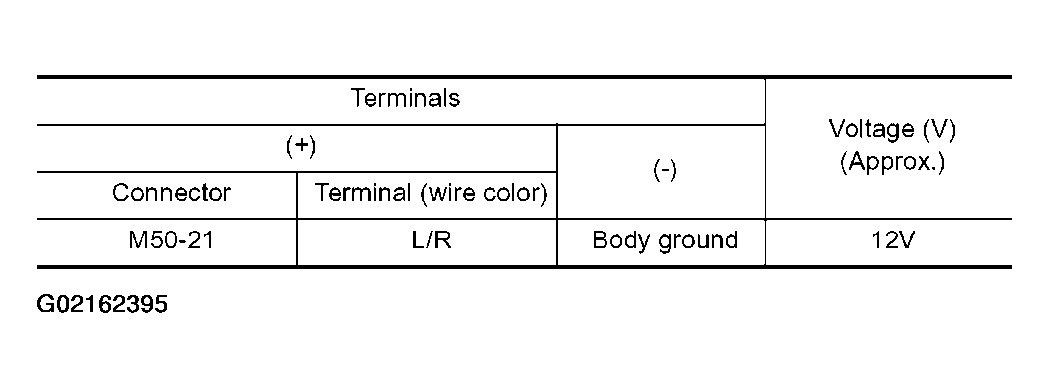

    Fig 1: Checking Auto Amp. (LCU) Side Power Supply (1 Of 2)
    G02162395Courtesy of NISSAN MOTOR CO., U.S.A.

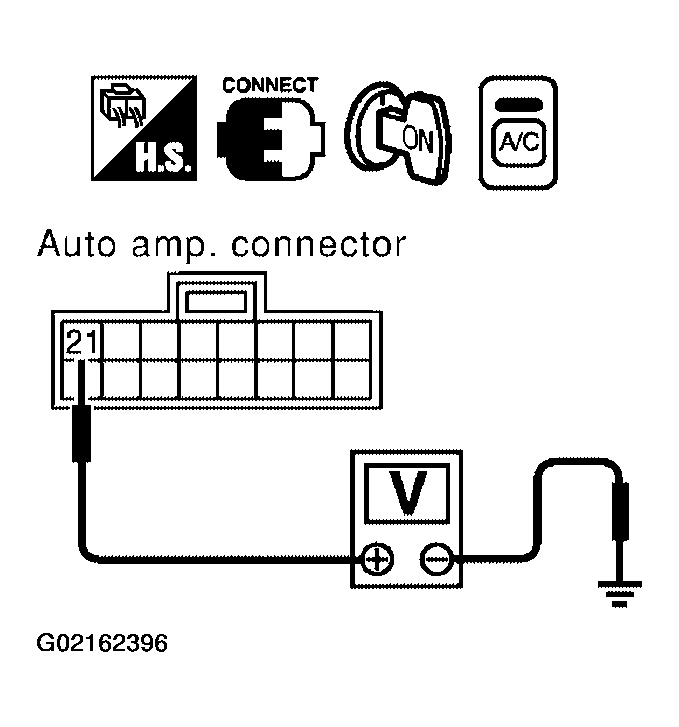

    Fig 2: Checking Auto Amp. (LCU) Side Power Supply (2 Of 2)
    G02162396Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 2.
    2. NG: Replace auto amp. (LCU).
  2. CHECK SIGNAL FOR AUTO AMP. (LCU) SIDE

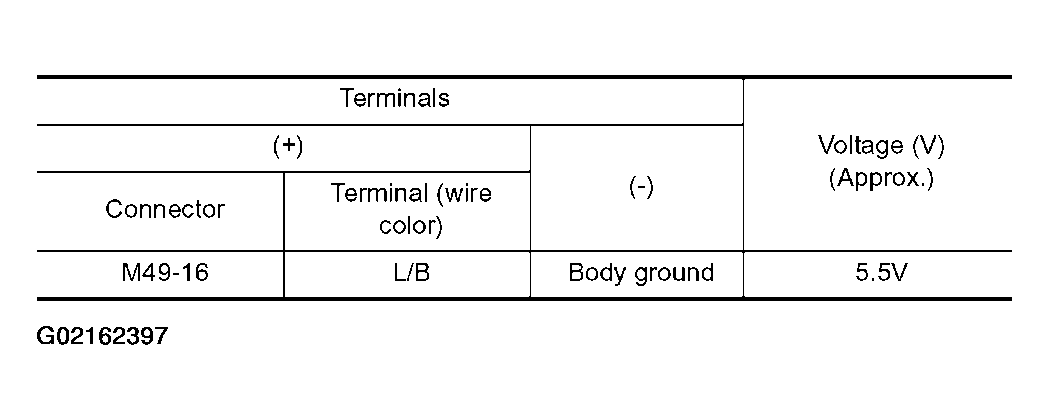

    Fig 3: Checking Auto Amp. (LCU) Side Signal (1 Of 2)
    G02162397Courtesy of NISSAN MOTOR CO., U.S.A.

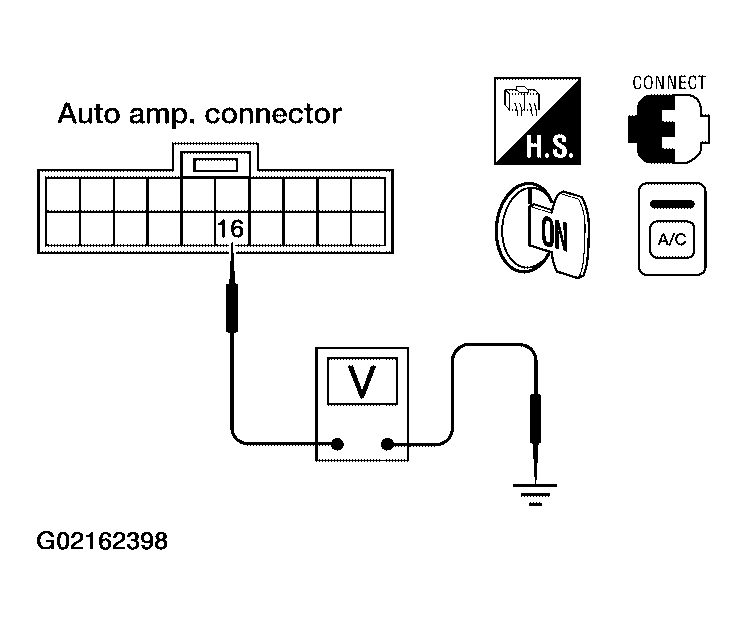

    Fig 4: Checking Auto Amp. (LCU) Side Signal (2 Of 2)
    G02162398Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 3.
    2. NG: Replace auto amp. (LCU).
  3. CHECK POWER SUPPLY FOR MOTOR SIDE

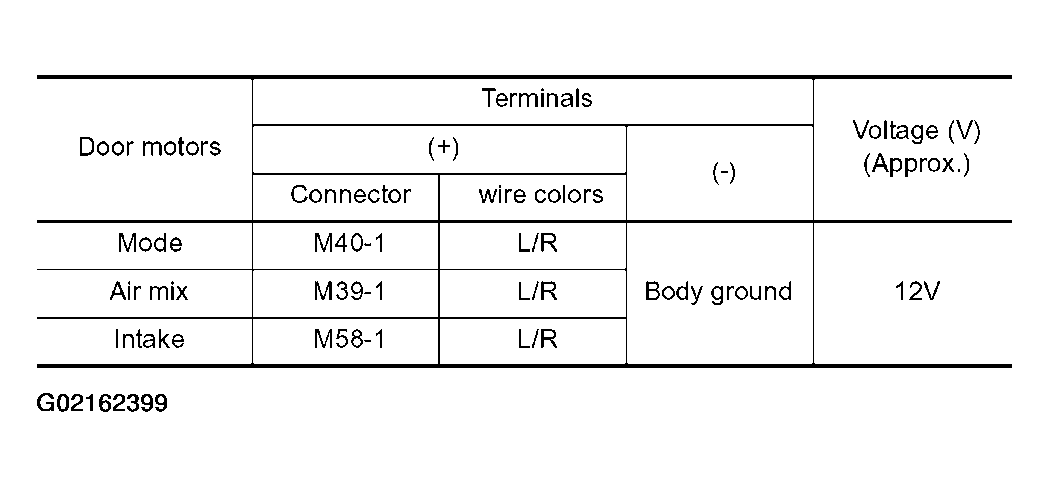

    Fig 5: Checking Motor Side Power Supply (1 Of 2)
    G02162399Courtesy of NISSAN MOTOR CO., U.S.A.

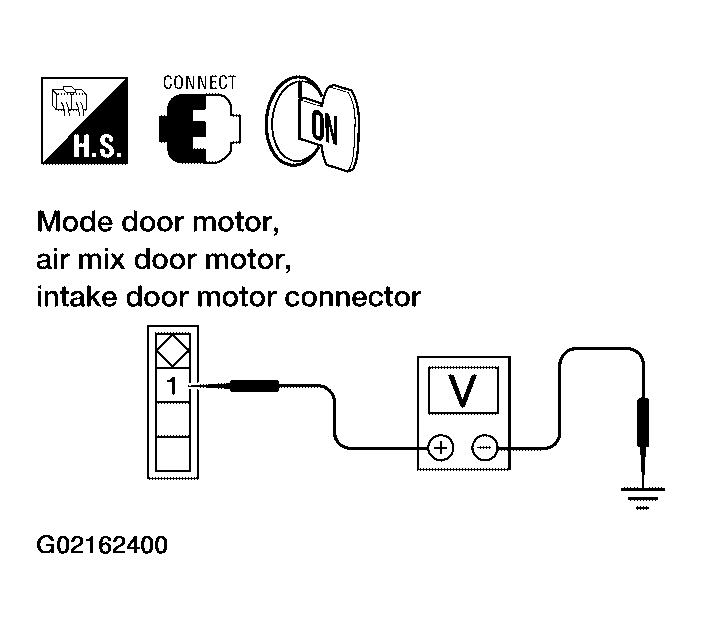

    Fig 6: Checking Motor Side Power Supply (2 Of 2)
    G02162400Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Replace harness or connector.
  4. CHECK SIGNAL FOR MOTOR SIDE

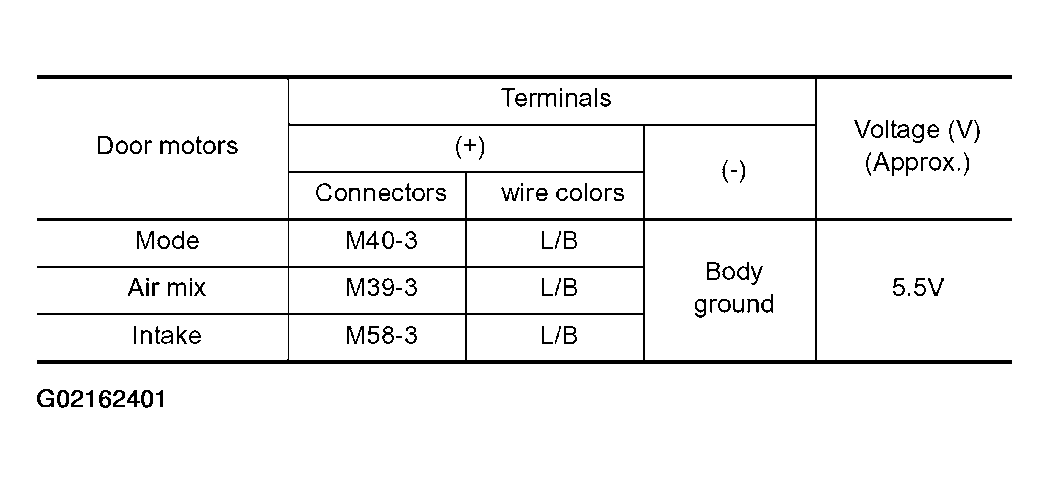

    Fig 7: Checking Motor Side Signal (1 Of 2)
    G02162401Courtesy of NISSAN MOTOR CO., U.S.A.

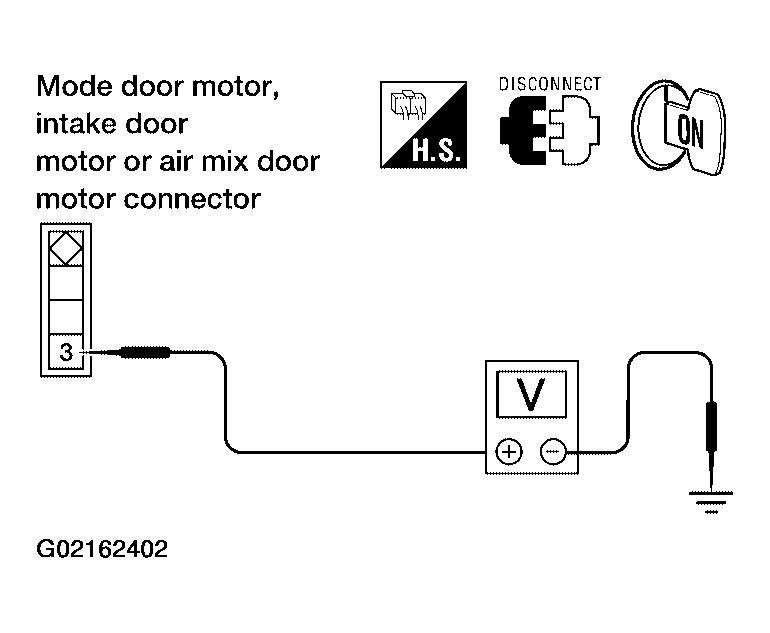

    Fig 8: Checking Motor Side Signal (2 Of 2)
    G02162402Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 5.
    2. NG: Replace harness or connector.
  5. CHECK MOTOR GROUND CIRCUIT

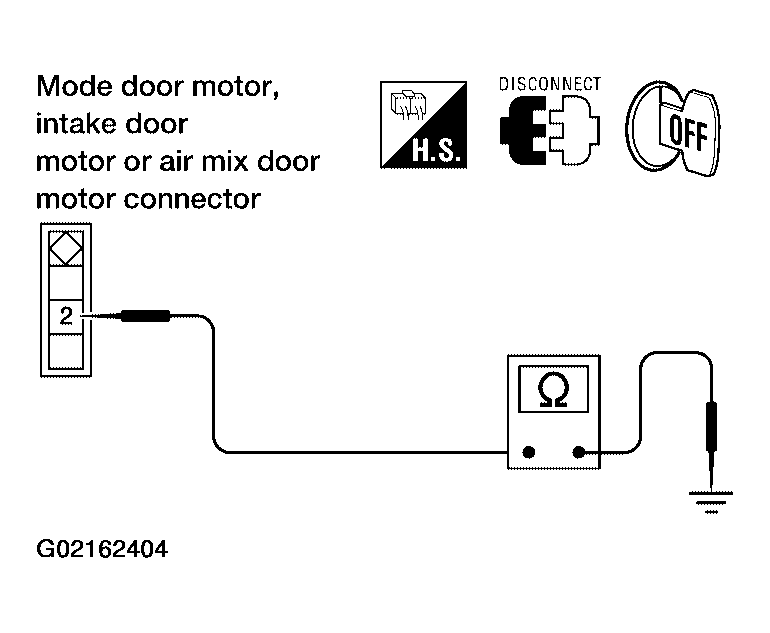

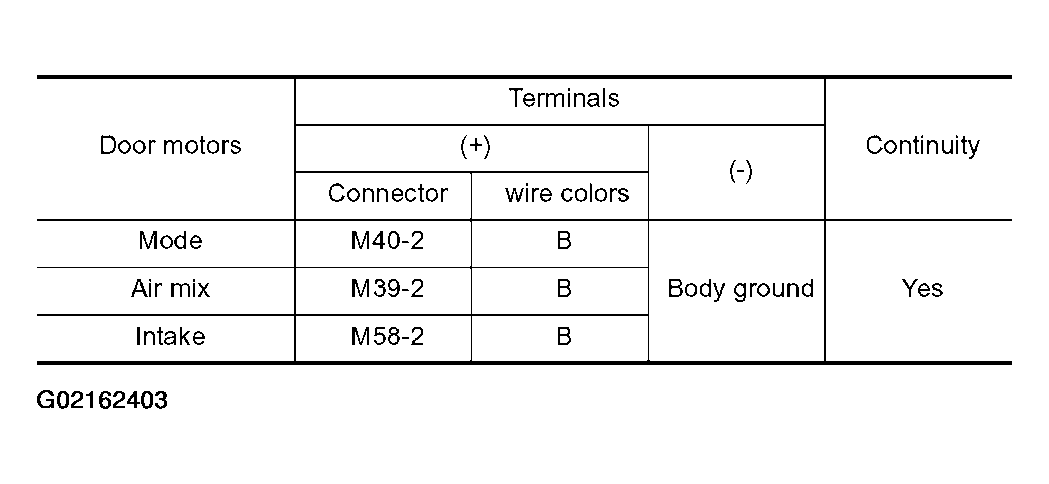

    Fig 9: Checking Motor Ground Circuit (1 Of 2)
    G02162403Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 10: Checking Motor Ground Circuit (2 Of 2)
    G02162404Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 6.
    2. NG: Replace harness or connector.
  6. CHECK MOTOR OPERATION

    Disconnect and reconnect the motor connectors and confirm the motor operation.

    OK or NG

    1. OK: (Return to operate normally.)
      • Poor contacting the motor connector
    2. NG: (Does not operate normally.)
      • GO TO 7.
  7. CHECK MODE DOOR MOTOR AND AIR MIX DOOR MOTOR OPERATION
    1. Disconnect the intake door motor connector.
    2. Reconnect the mode door motor connector and air mix door motor connector, confirm the mode door motor and air mix door motor operation.

    OK or NG

    1. OK: (Mode door motor and air mix door motor operate normally.)
      • Replace the intake door motor.
    2. NG: (Mode door motor and air mix door motor do not operate normally.)
      • GO TO 8.
  8. CHECK AIR MIX DOOR MOTOR AND INTAKE DOOR MOTOR OPERATION
    1. Disconnect mode door motor connector.
    2. Reconnect the intake door motor connector, confirm the air mix door motor and intake door motor operation.

    OK or NG

    1. OK: (Air mix door motor and intake door motor operate normally.)
      • Replace mode door motor.
    2. NG: (Air mix door motor and intake door motor do not operate normally.)
      • GO TO 9.
  9. CHECK INTAKE DOOR MOTOR AND MODE DOOR MOTOR OPERATION
    1. Disconnect air mix door motor connector.
    2. Reconnect mode door motor connector, confirm the intake door motor and mode door motor operation.

    OK or NG

    1. OK: (Intake door motor and mode door motor operate normally.)
      • Replace air mix door motor.
    2. NG: (Intake door motor and mode door motor do not operate normally.)
      • Replace auto amp.
