Intake Door

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Install intake door motor on intake unit and connect it to main harness.
Set up code No. 41 in Self-diagnosis STEP 4. Refer to "SELF-DIAGNOSIS "
Make sure intake door operates properly when changing from code No. 41 to 46 by pushing DEF switch.

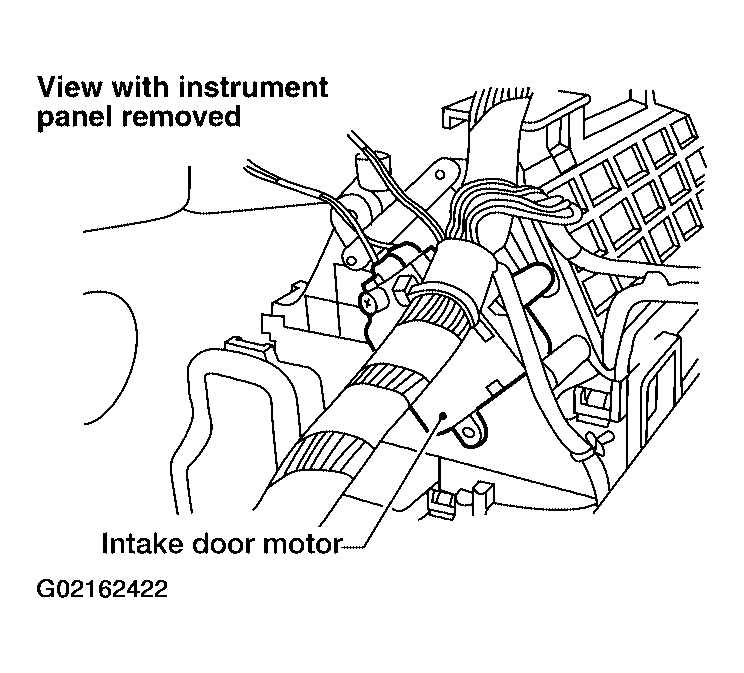

Fig 1: Locating Intake Door Motor
Courtesy of NISSAN MOTOR CO., U.S.A.

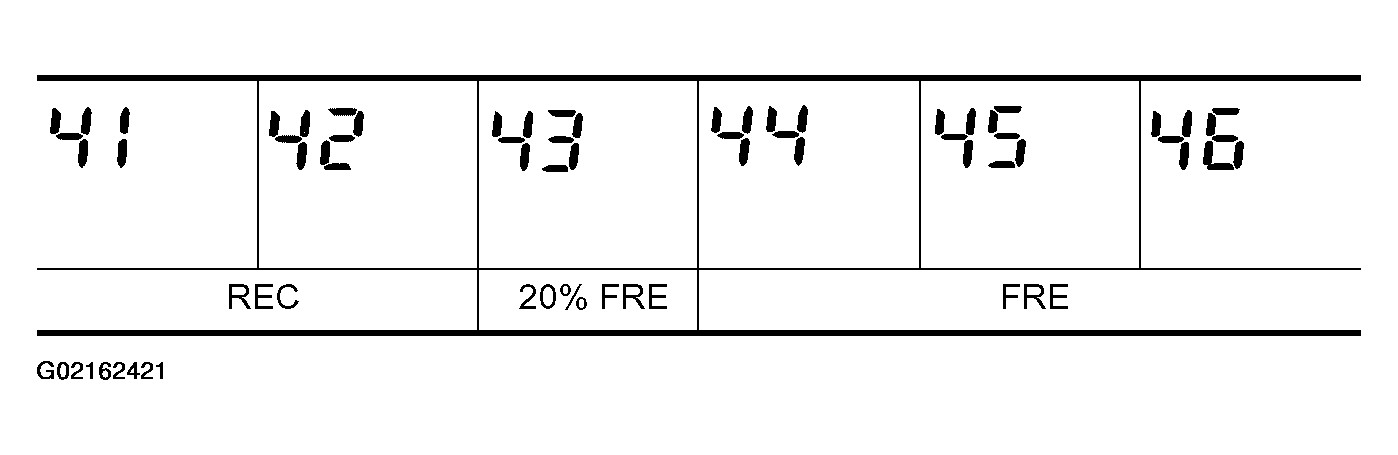

Fig 2: Displaying Code No 41 To 46
Courtesy of NISSAN MOTOR CO., U.S.A.
