High-pressure Side is Too Low and Low-pressure Side is Too High

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

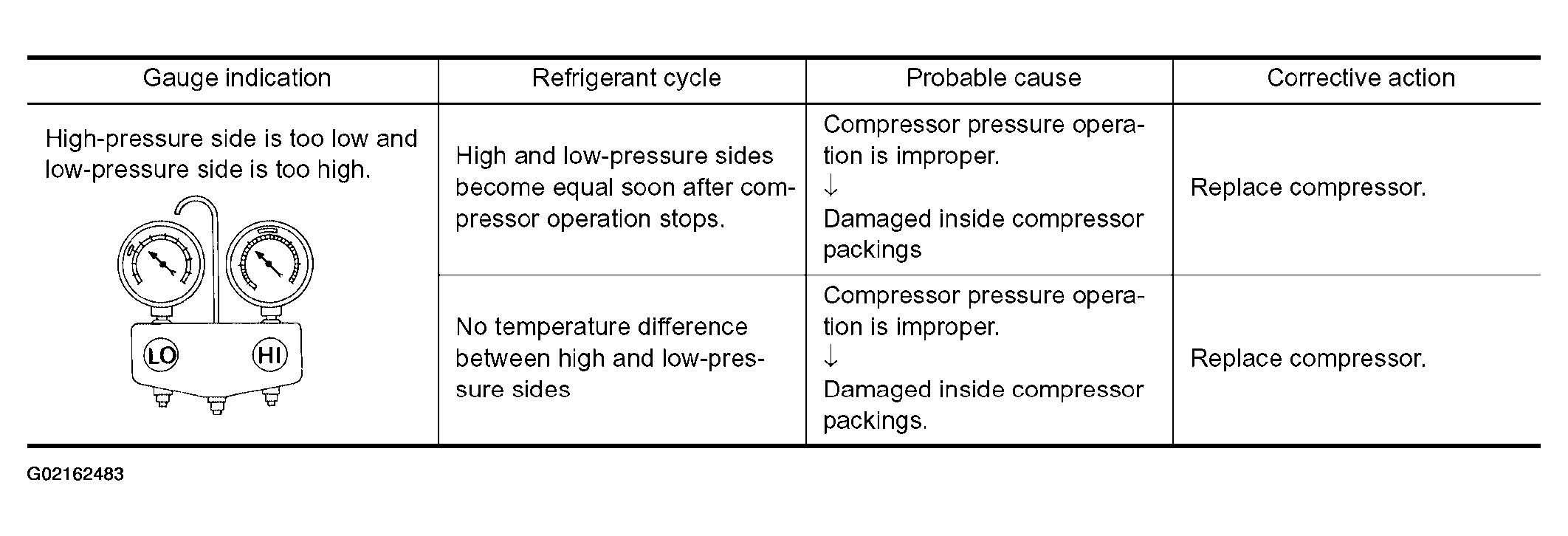

Fig 1: Abnormal Pressure Trouble Diagnosis (High-Pressure Side Too Low And Low-Pressure Side Too High)
G02162483Courtesy of NISSAN MOTOR CO., U.S.A.
