Test Condition

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Testing must be performed as follows:

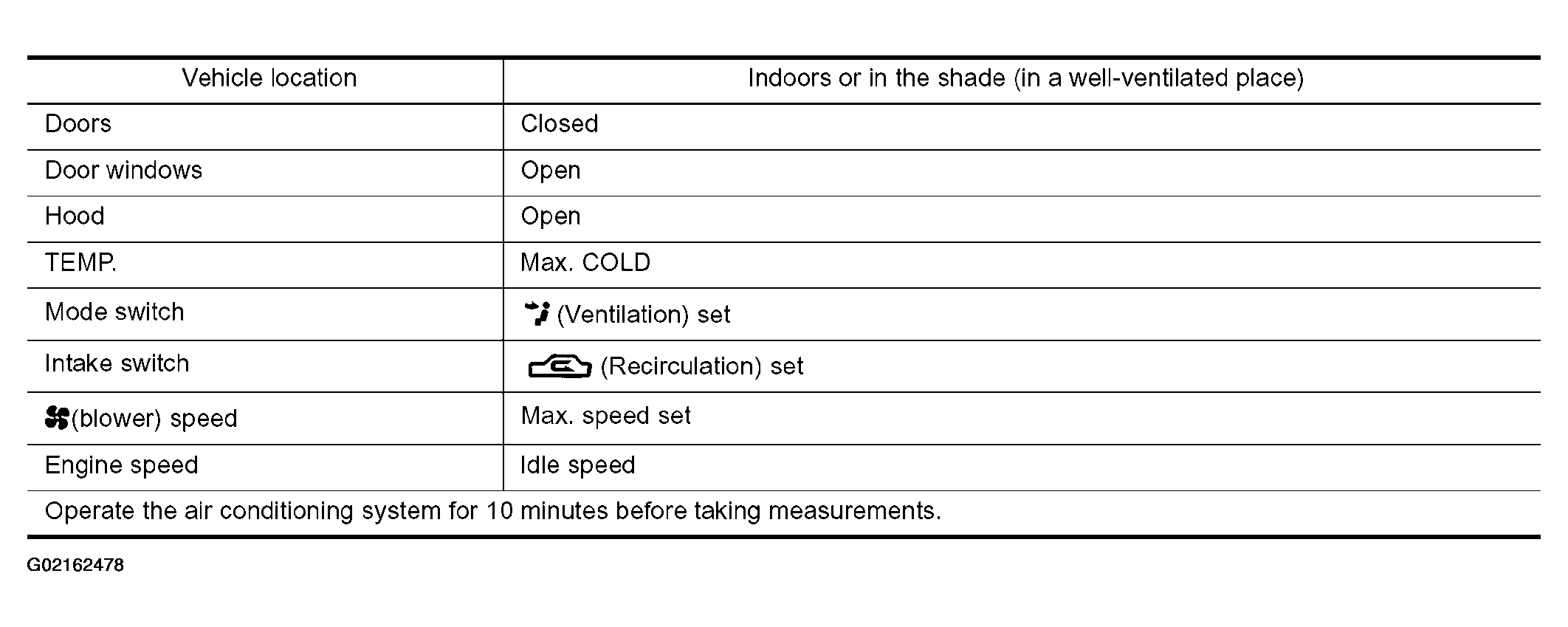

Fig 1: Test Condition
G02162478Courtesy of NISSAN MOTOR CO., U.S.A.
