In-vehicle Sensor

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

After disconnecting in-vehicle sensor harness connector, measure resistance between terminals 1 and 2 at sensor harness side, using the table below.

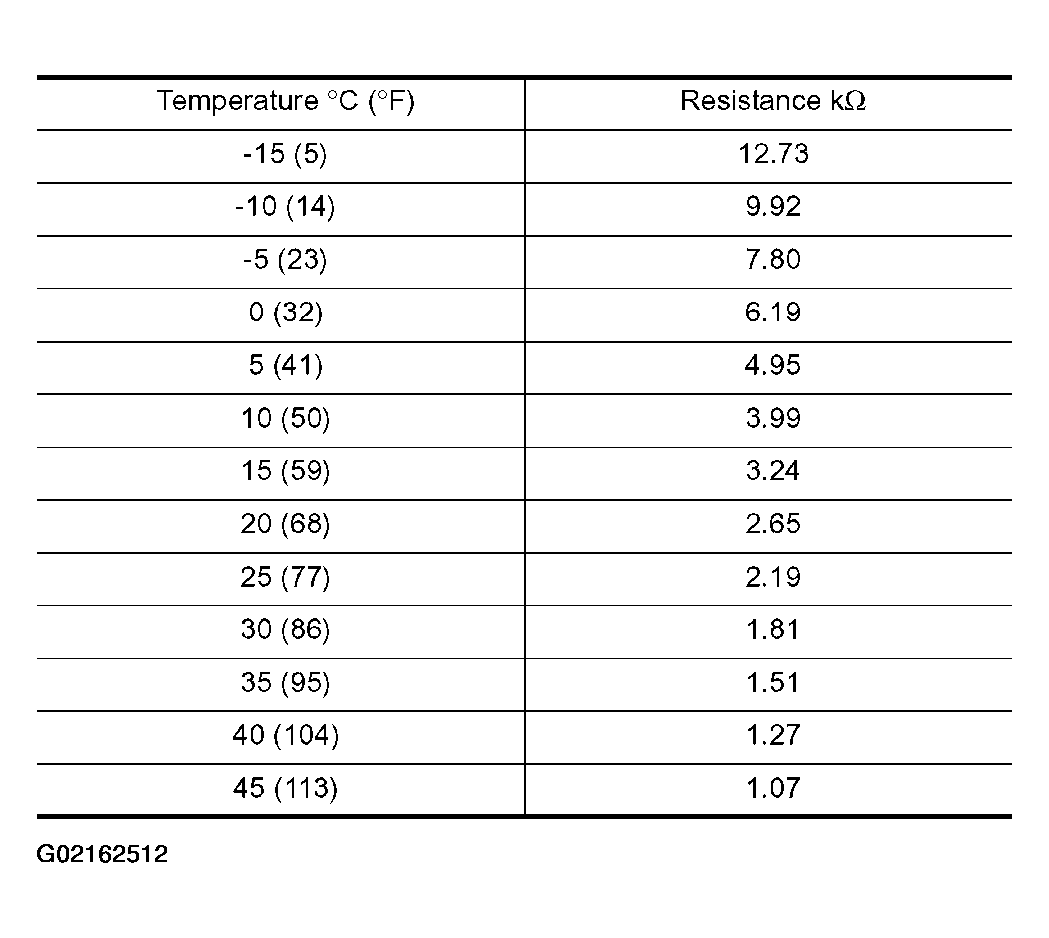

Fig 1: In-Vehicle Sensor Check Table

Courtesy of NISSAN MOTOR CO., U.S.A.

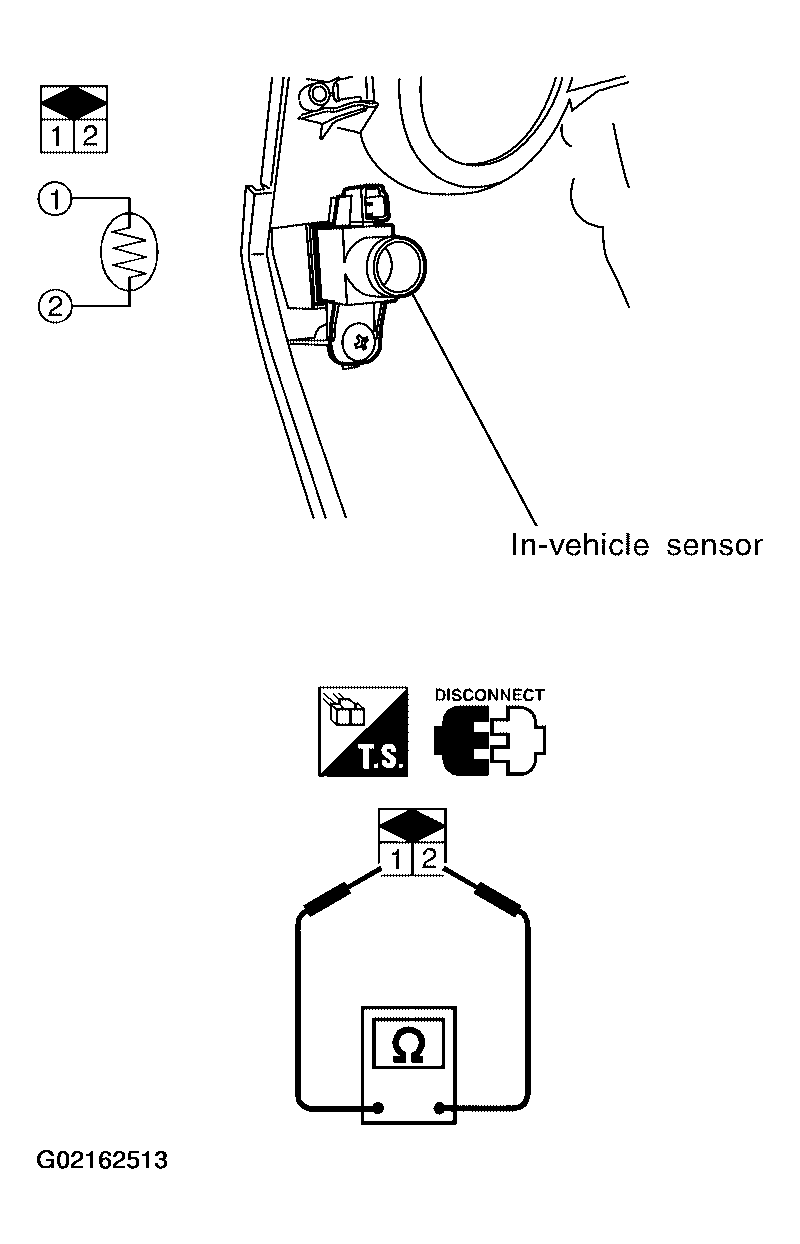

Fig 2: Inspecting In-Vehicle Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace in-vehicle sensor.
