Component Description: Aspirator

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

The aspirator is located on driver's side of heater and cooling unit. It produces vacuum pressure due to air discharged from the heater and cooling unit, continuously taking compartment air in the aspirator.

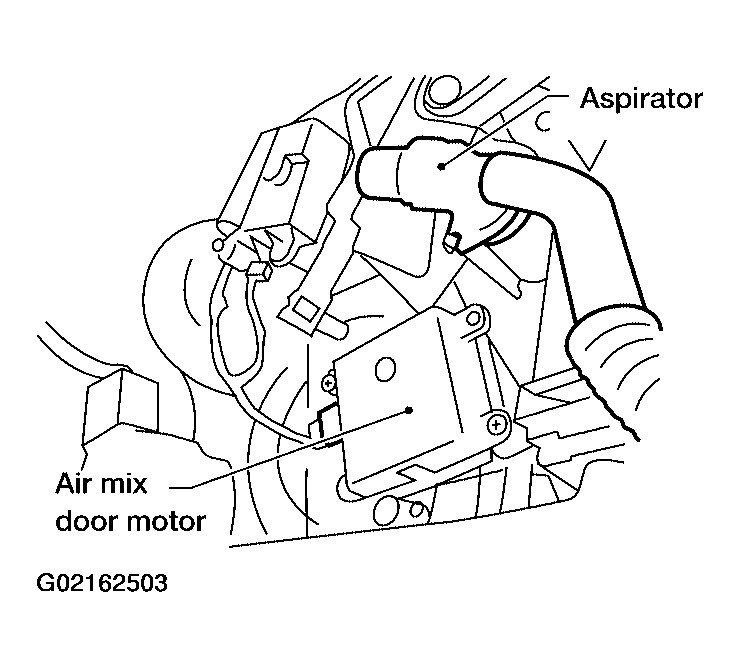

Fig 1: Identifying Aspirator And Air Mix Door Motor

Courtesy of NISSAN MOTOR CO., U.S.A.

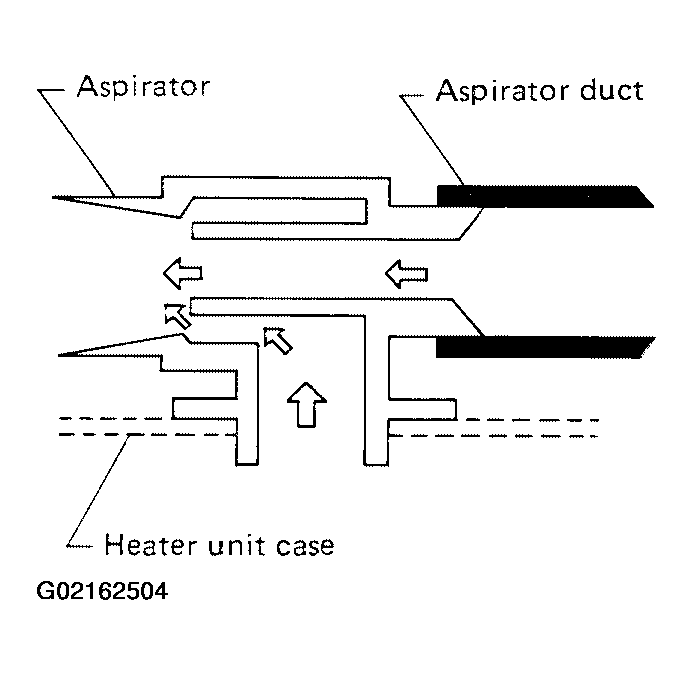

Fig 2: Identifying Aspirator Air Flow

Courtesy of NISSAN MOTOR CO., U.S.A.
