Fan Control Amp.

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals.

  1. Terminal Nos. 2 - 4 : Continuity yes

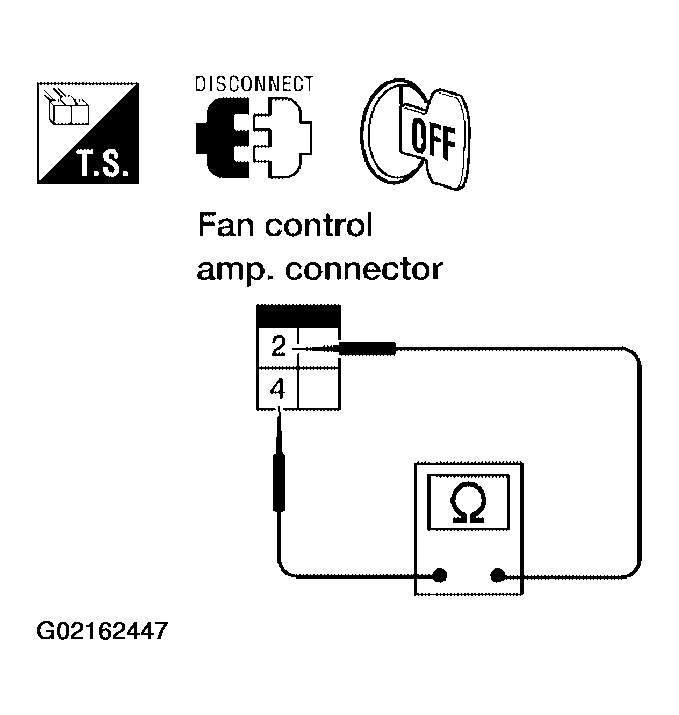

Fig 1: Checking Fan Control Amp Connector
G02162447Courtesy of NISSAN MOTOR CO., U.S.A.
