WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

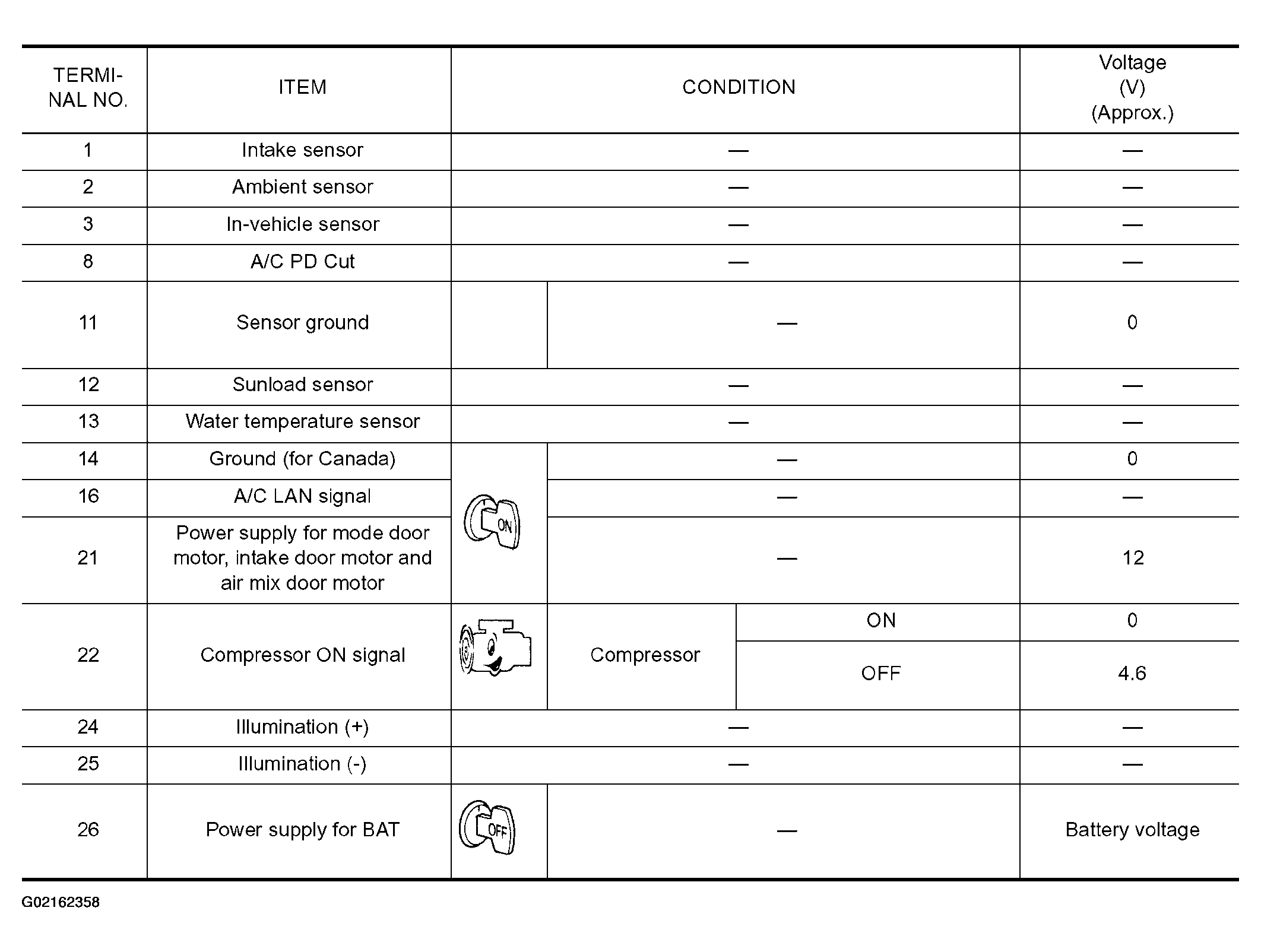

Fig 1: Auto AMP. Inspection Table (Terminals 1-26)
Courtesy of NISSAN MOTOR CO., U.S.A.

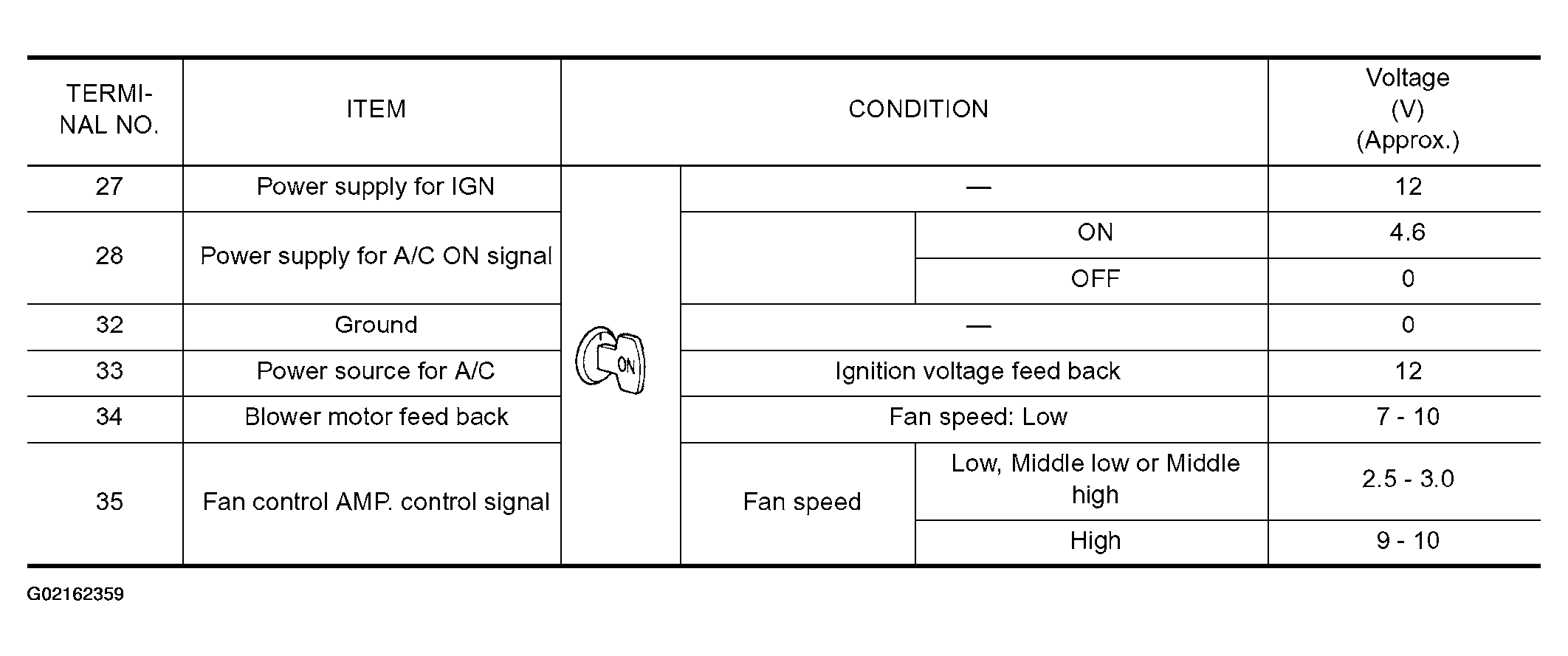

Fig 2: Auto AMP. Inspection Table (Terminals 27-35)
