A/C Auto Amp. Harness Connector Terminal Layout

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

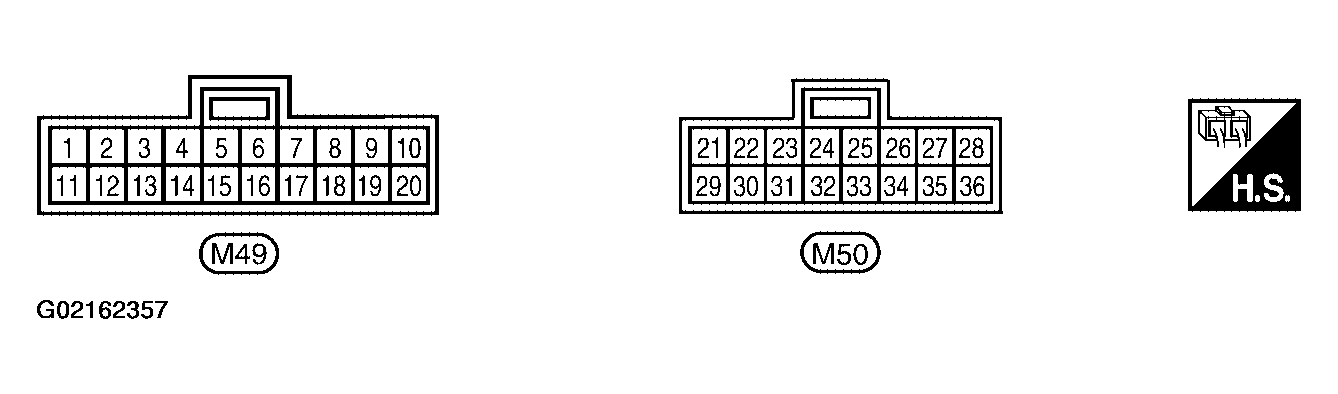

Fig 1: Identifying A/C Auto Amp. Harness Connector Terminals
G02162357Courtesy of NISSAN MOTOR CO., U.S.A.
