Ambient Sensor

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

After disconnecting ambient sensor harness connector, measure resistance between terminals 2 and 1 at sensor harness side, using the table below.

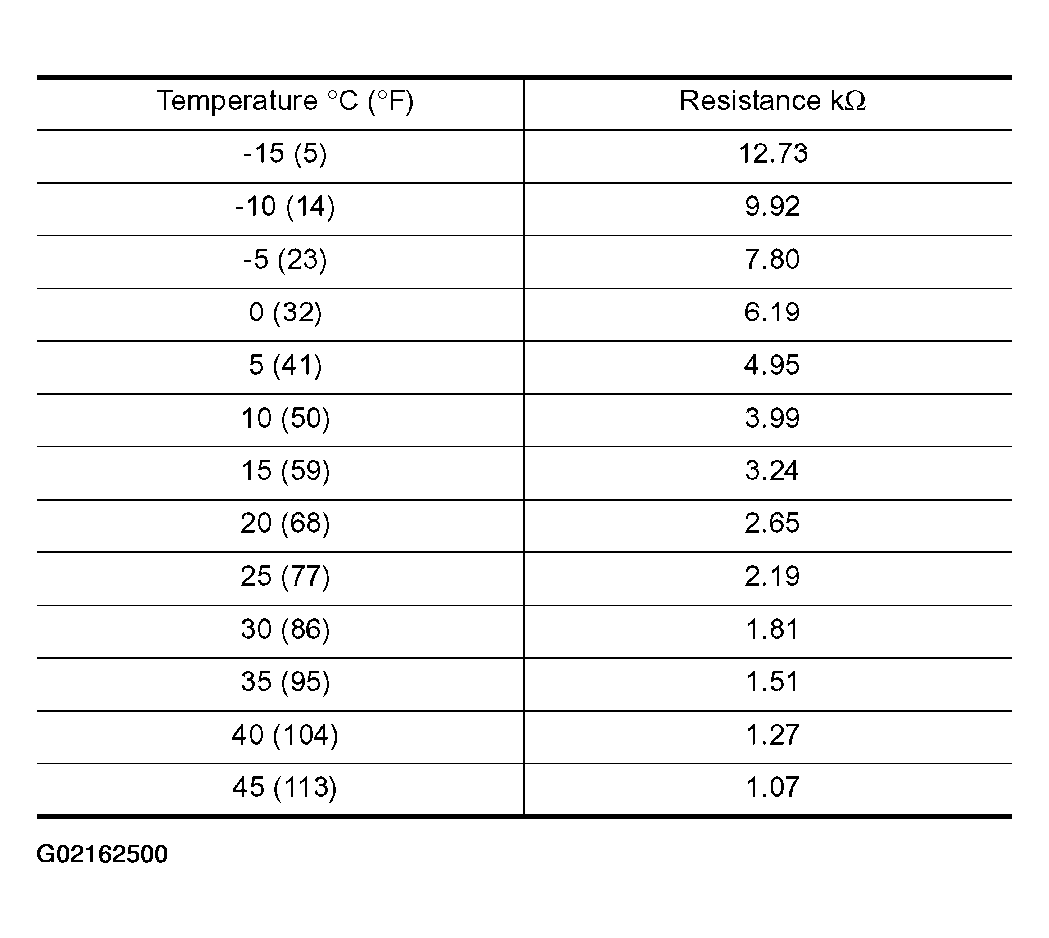

Fig 1: Ambient Sensor Check Table

Courtesy of NISSAN MOTOR CO., U.S.A.

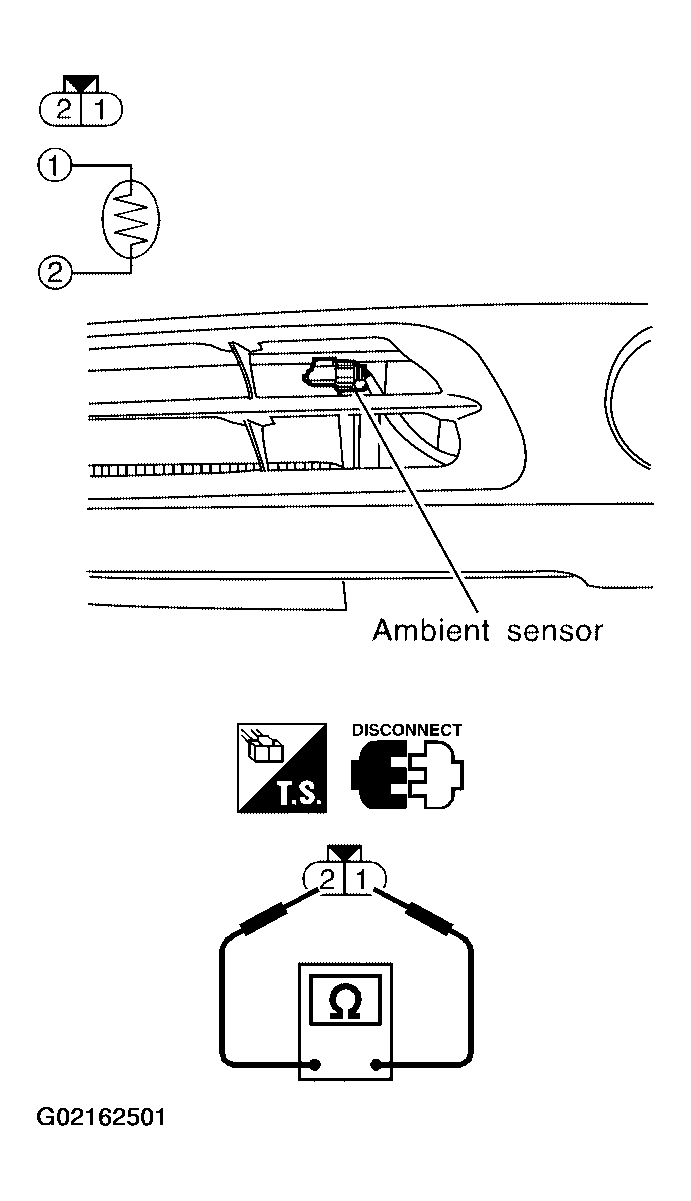

Fig 2: Inspecting Ambient Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace ambient sensor.
