Ambient Sensor

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

The ambient sensor is attached to the front bumper reinforcement. It detects ambient temperature and converts it into a resistance value which is then input into the auto amplifier.

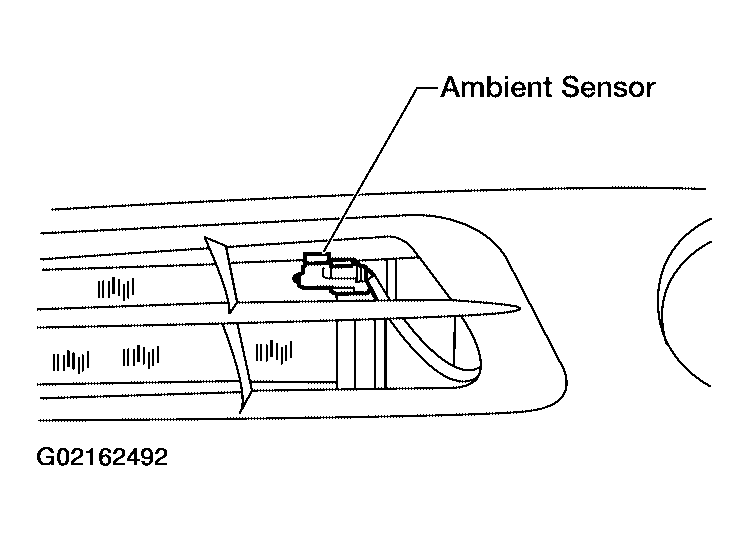

Fig 1: Identifying Ambient Sensor
G02162492Courtesy of NISSAN MOTOR CO., U.S.A.
