Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove evaporator. Refer to "REMOVAL AND INSTALLATION FOR EVAPORATOR "
  2. Remove thermo control amplifier.
    CAUTION: Be careful not to damage the core surface.

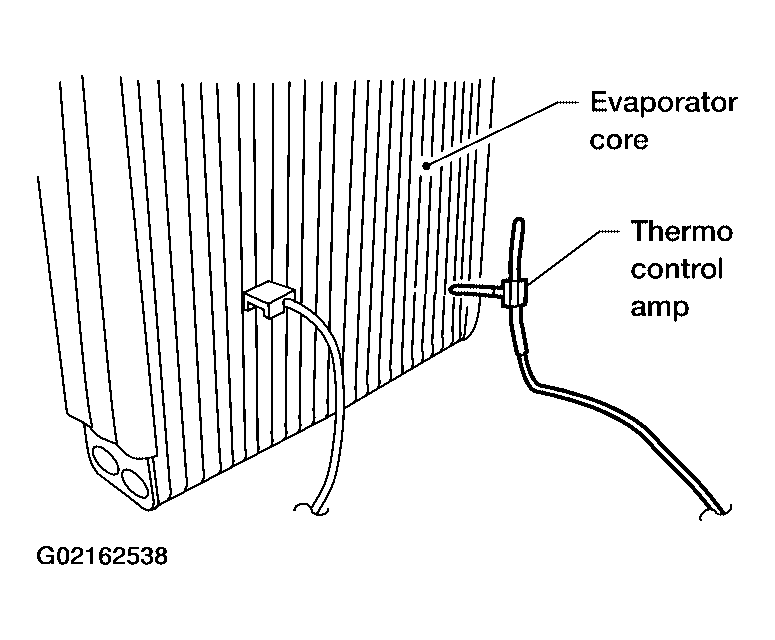

    Fig 1: Removing Thermo Control Amplifier
    G02162538Courtesy of NISSAN MOTOR CO., U.S.A.
