Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the blower unit. Refer to "REMOVAL AND INSTALLATION "
  2. Remove the screws and then the intake door motor from the blower unit.

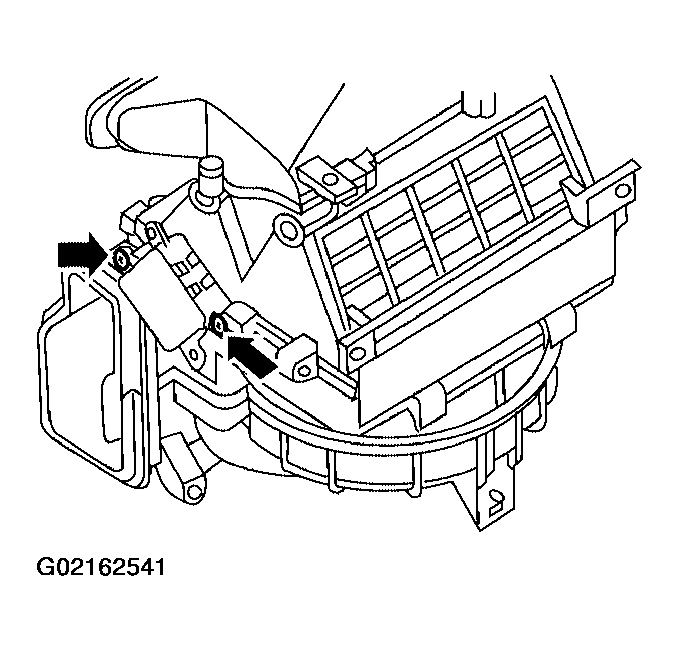

    Fig 1: Locating Intake Door Motor Screws
    G02162541Courtesy of NISSAN MOTOR CO., U.S.A.
