Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Discharge refrigerant from A/C system. Refer to "HFC-134A (R-134A) SERVICE PROCEDURE "
  2. Drain coolant from cooling system.
  3. Remove wiper motor and linkage. Refer to "REMOVAL AND INSTALLATION FOR WIPER MOTOR AND LINKAGE "
  4. Remove fasteners and cowl.
  5. Disconnect heater hoses from heater core pipes.
  6. Disconnect refrigerant lines from evaporator.
    CAUTION: Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid entry of contaminants
  7. Remove the steering member. Refer to "INSTRUMENT PANEL ASSEMBLY "
  8. Remove the blower unit. Refer to "BLOWER UNIT ".
  9. Disconnect mode door motor and air mix door motor connectors.
  10. Remove the heater and cooling unit.

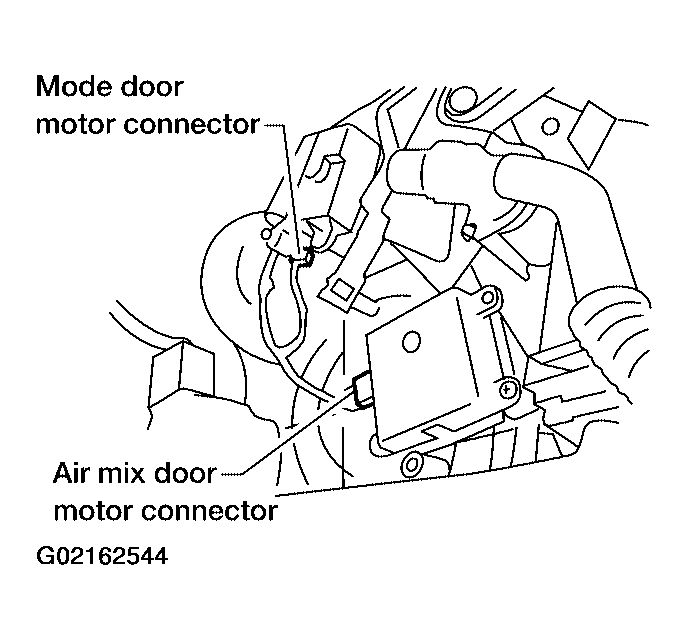

    Fig 1: Identifying Mode Door Motor And Air Mix Door Motor Connectors
    G02162544Courtesy of NISSAN MOTOR CO., U.S.A.
