Side Ventilator Grille RH

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove glove box assembly. Refer to "GLOVE BOX "
  2. Remove side ventilator grille RH screw and then remove side ventilator grille RH.

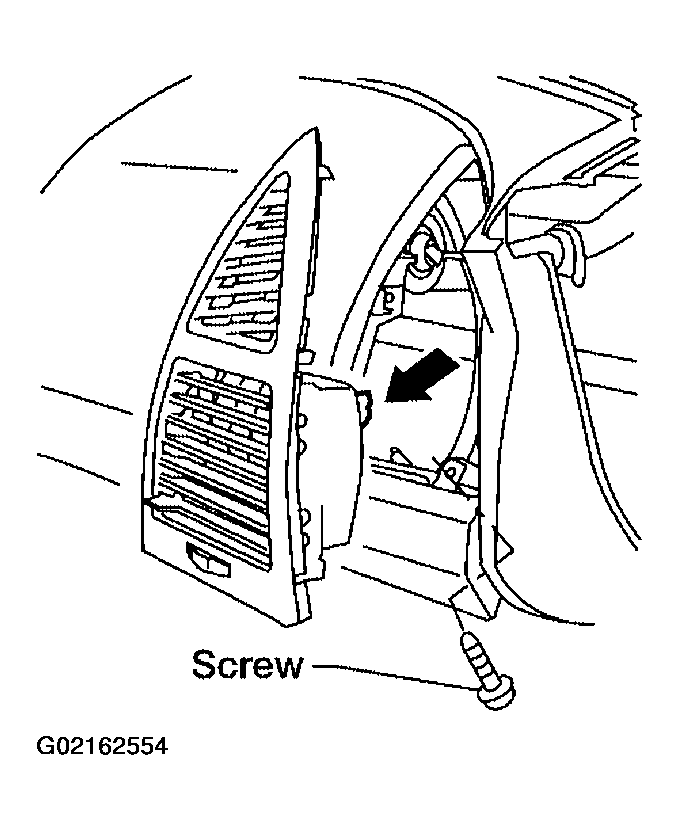

    Fig 1: Removing Side Ventilator Grille RH
    G02162554Courtesy of NISSAN MOTOR CO., U.S.A.
