Floor duct

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the carpet. Refer to "FLOOR TRIM "
  2. Release foam tape and slide floor duct rearward to release from clips.

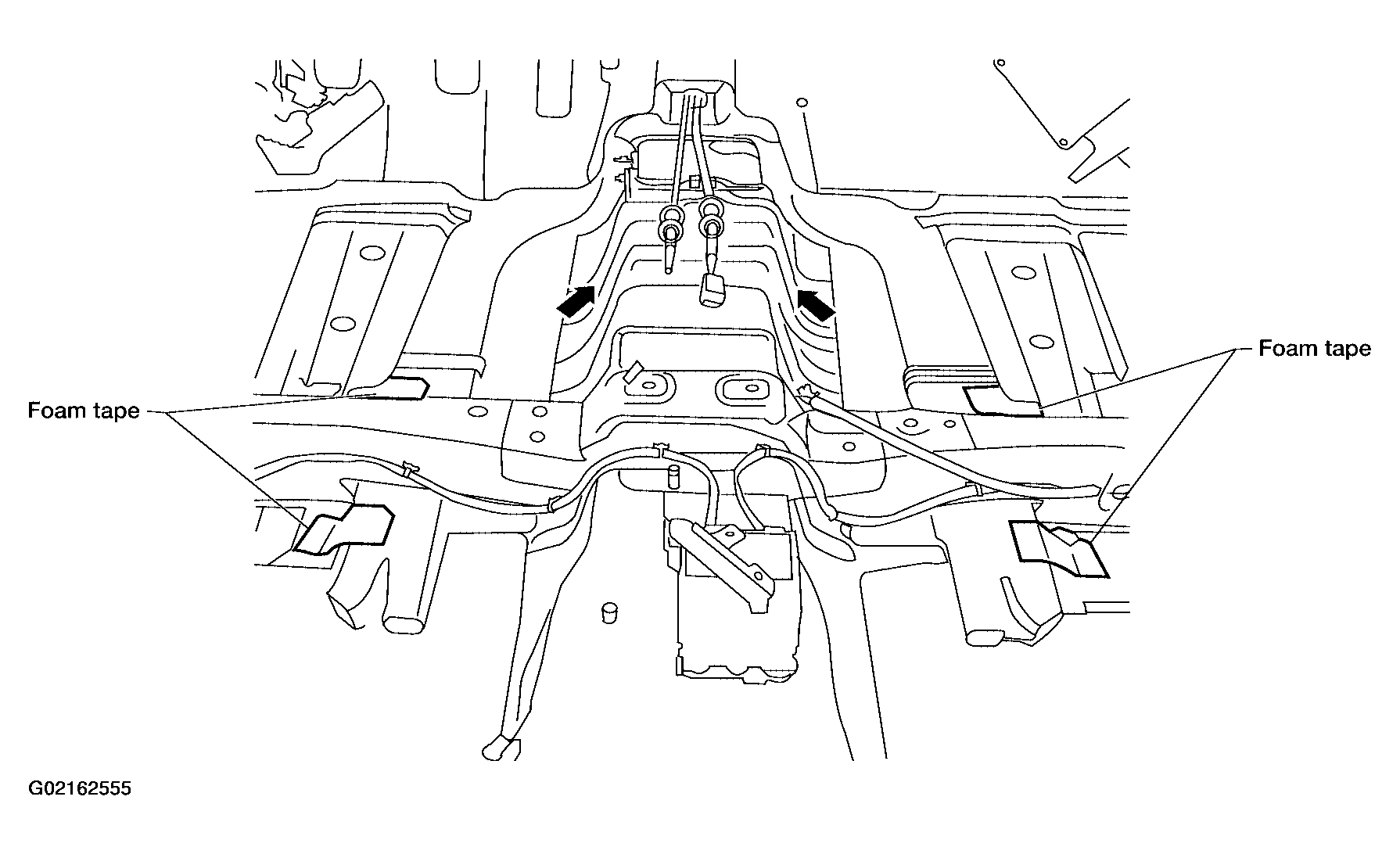

    Fig 1: Releasing Foam Tape And Slide Floor Duct
    G02162555Courtesy of NISSAN MOTOR CO., U.S.A.
