Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Remove the blower unit. Refer to "REMOVAL AND INSTALLATION "
Release the 8 tabs attaching blower motor to blower unit case and then remove it.

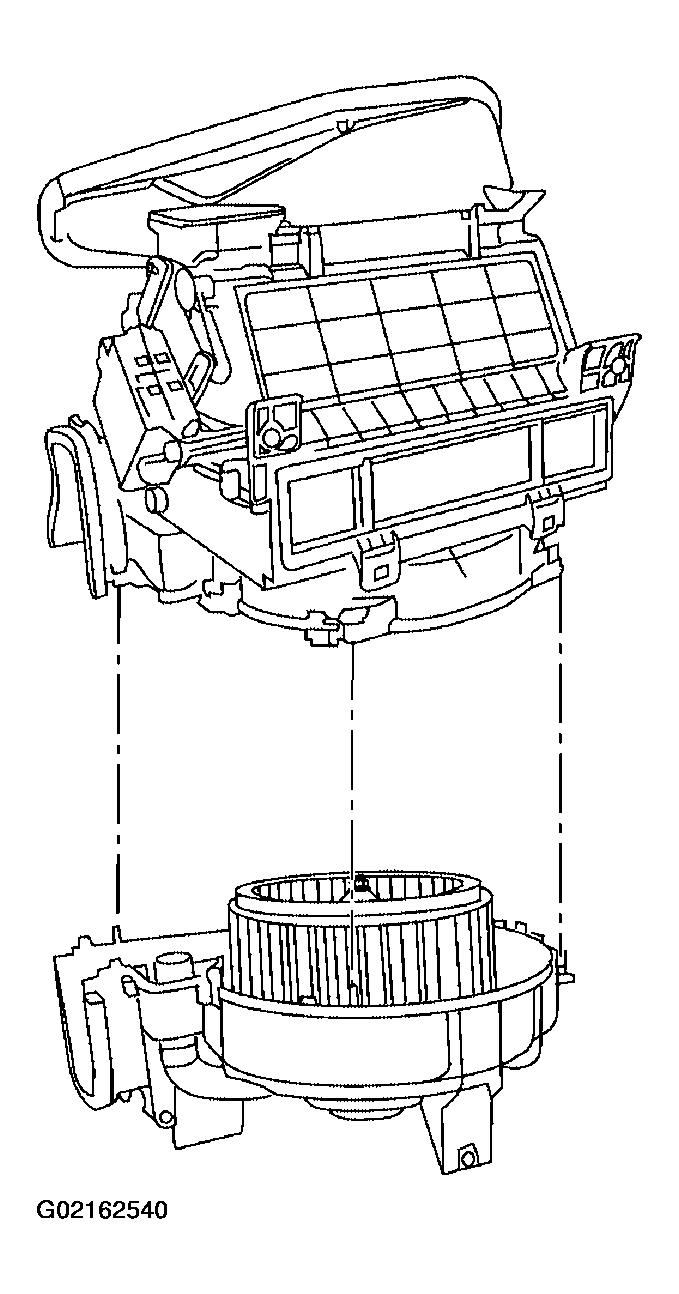

Fig 1: Removing Blower Motor
Courtesy of NISSAN MOTOR CO., U.S.A.
