Wiring Diagram-SEAT-

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For wiring diagram references to PG-POWER , see POWER DISTRIBUTION .

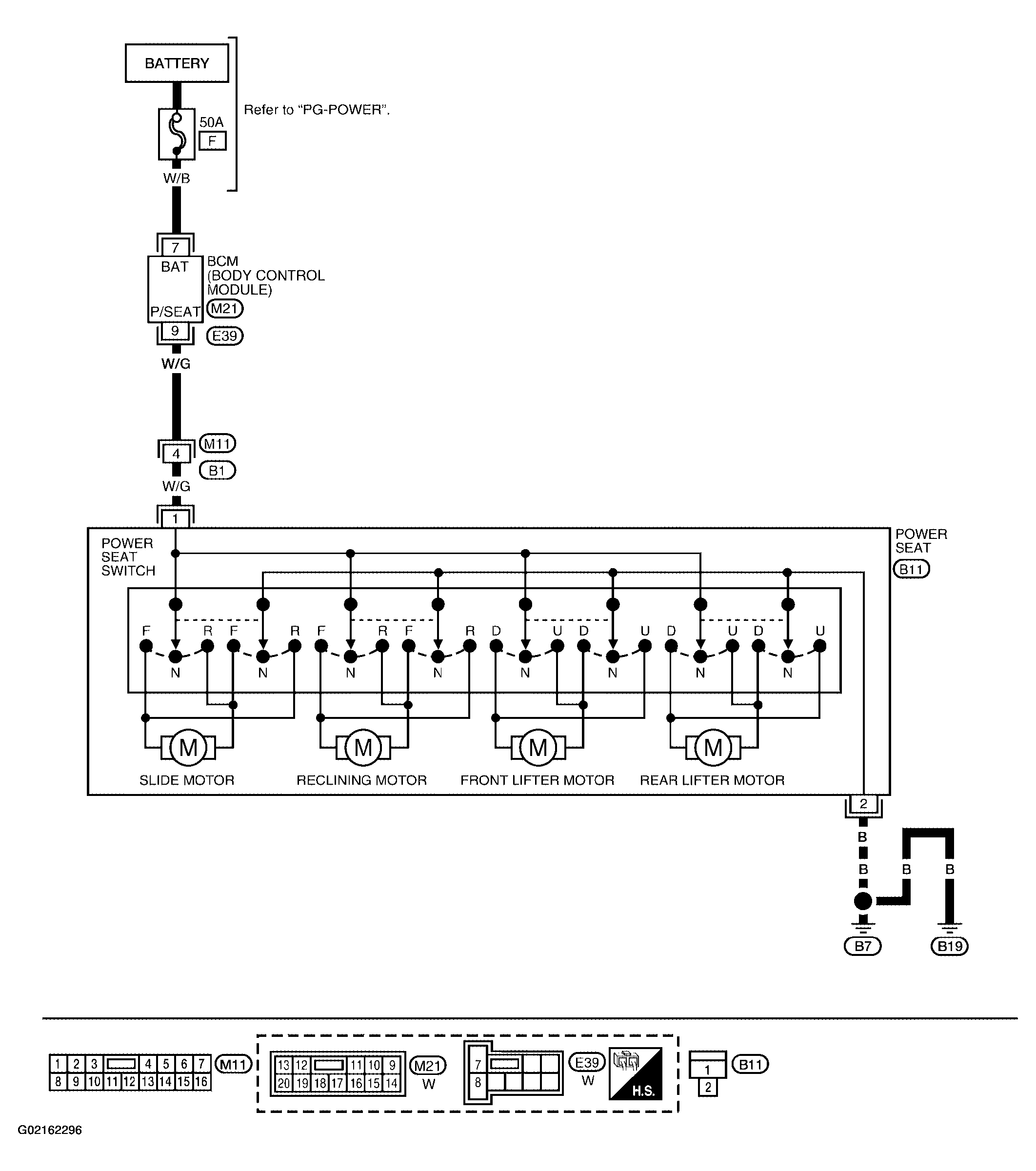

Fig 1: Wiring Diagram - Power Seat

Courtesy of NISSAN MOTOR CO., U.S.A.

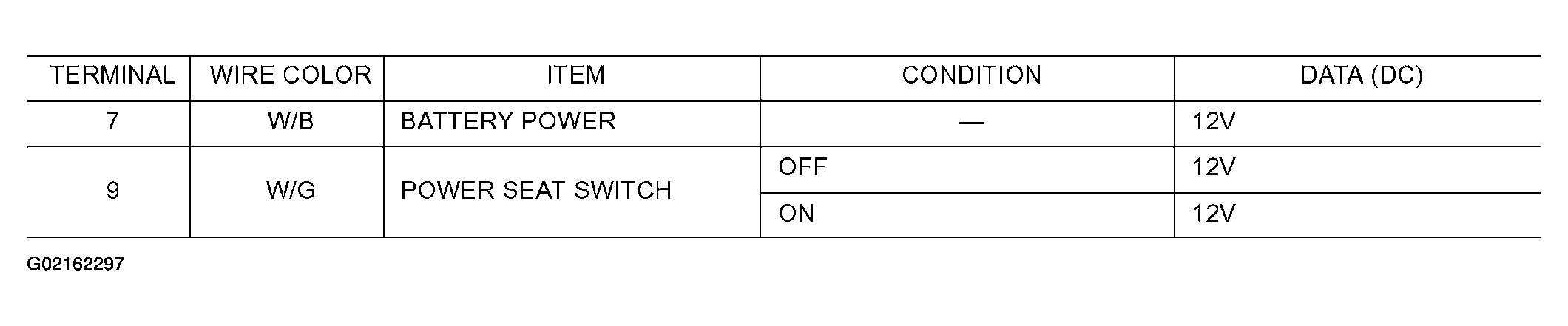

Fig 2: Power Seat Terminal Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.
