Seat Cushion Trim And Pad

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power seat switch knob (or recline knob on manual seat).
  2. Remove the front seat cushion finisher (inner).

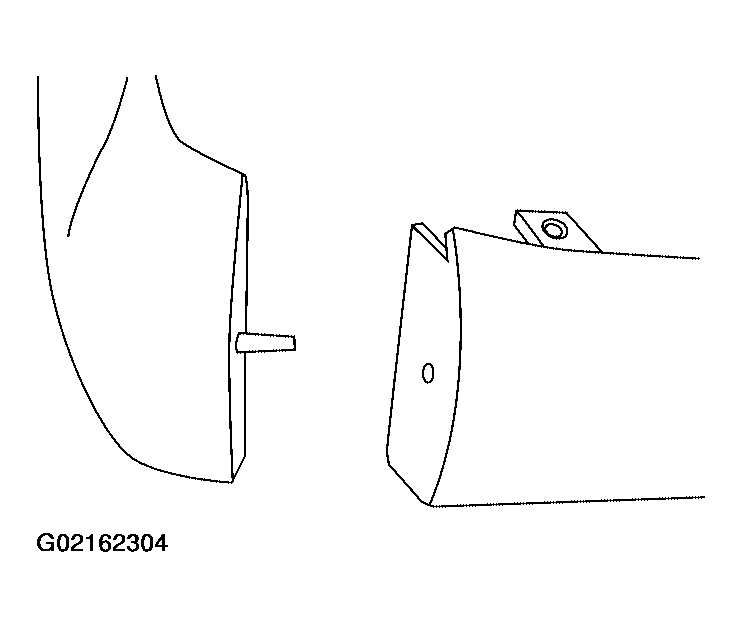

    Fig 1: Removing Front Seat Cushion Finisher (Inner)
    G02162304Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the three power seat switch assembly screws (or lift knobs on manual seats).
  4. Remove four bolts retaining the seat cushion assembly, remove seat cushion assembly.

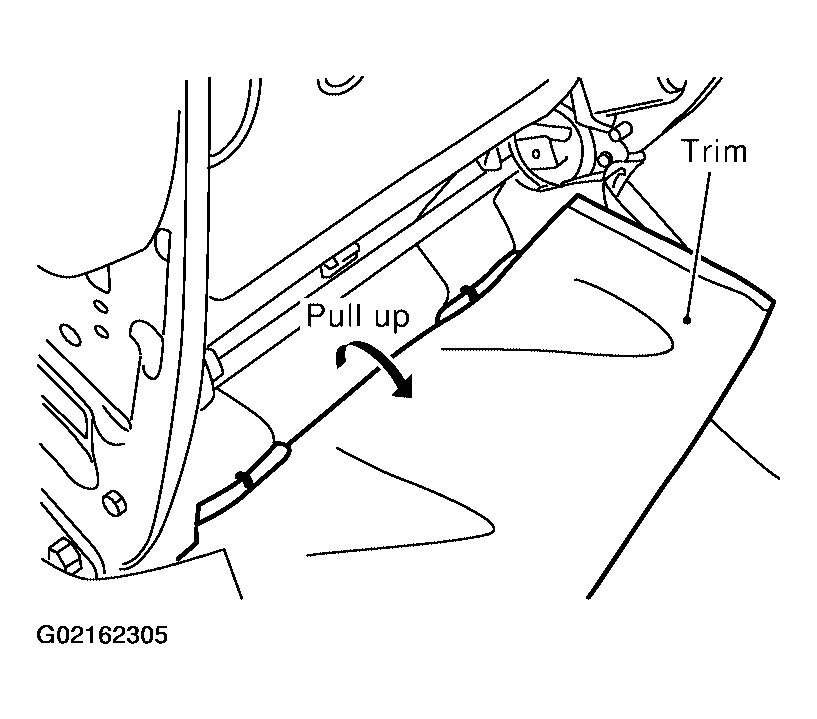

    Fig 2: Removing Seat Cushion Assembly
    G02162305Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the retainer on the seat cushion frame, then remove the harness connector for the seat heater.
  6. After removing the seat cushion trim and pad, remove the hog rings to separate the trim from the pad and seat cushion heater unit.
