Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

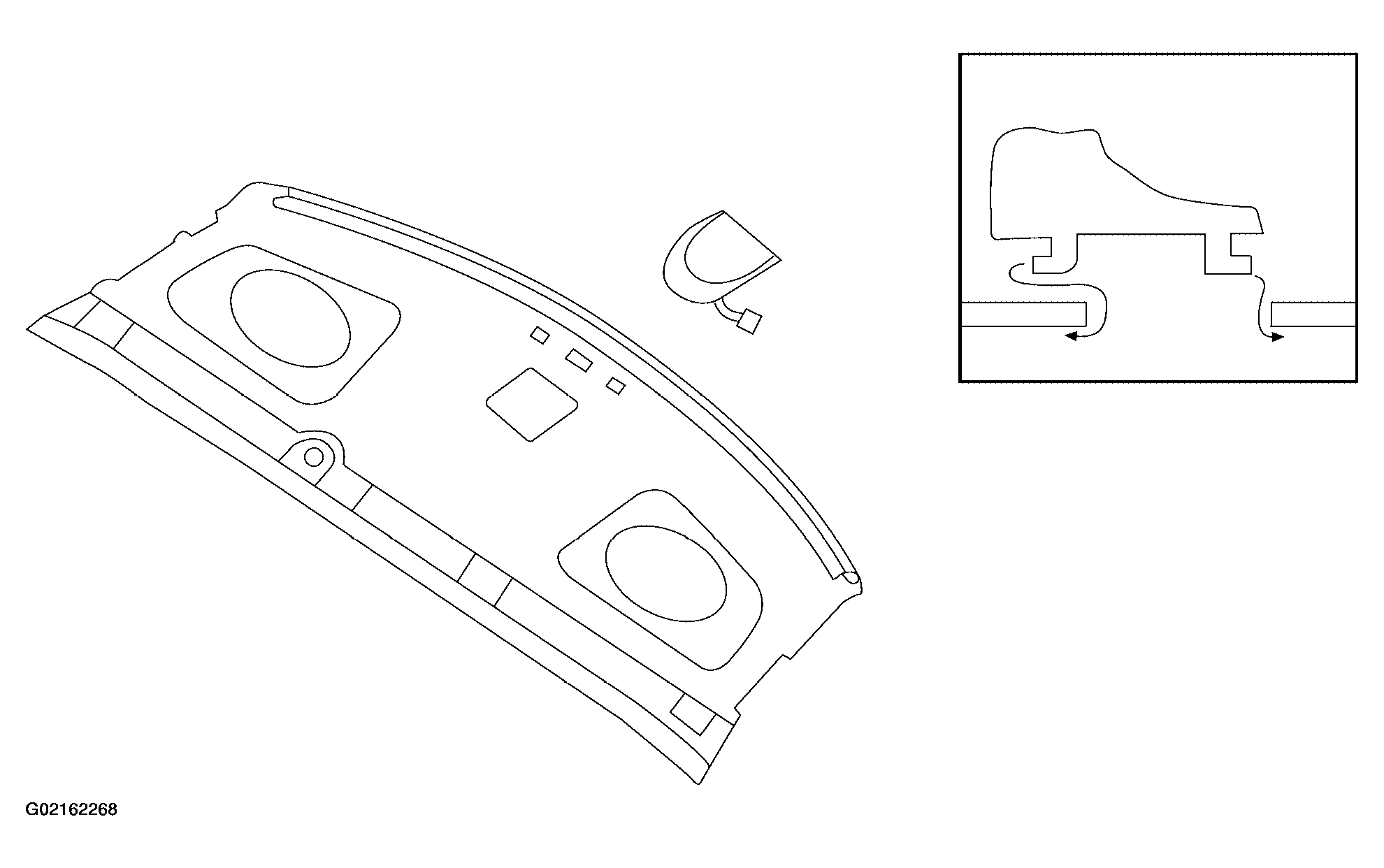

Fig 1: Removing And Installing Rear Parcel Shelf Finisher

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove rear seat. Refer to , "REAR SEAT ".
Remove rear seat belt anchor bolts. Refer to , "REMOVAL AND INSTALLATION OF REAR SEAT BELT ".
Remove rear pillar finisher. Refer to , "BODY SIDE TRIM ".
If equipped, remove high mounted stop lamp and disconnect connectors.

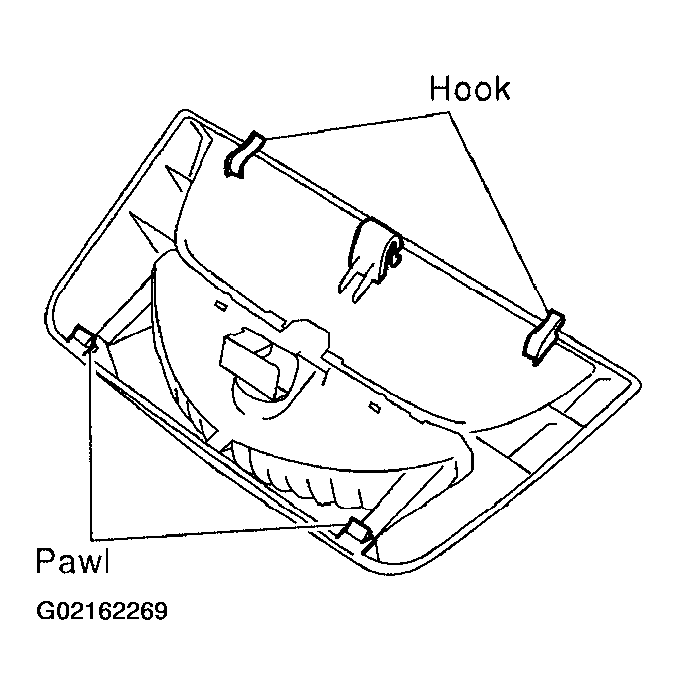

Fig 2: Identifying Hooks And Pawls
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove halo trim.
Remove rear parcel shelf trim.
Installation is in the reverse order of removal.
