Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For clips and/or fasteners identified in repair procedures and/or figures, refer to the corresponding numbers in Figure-Figure

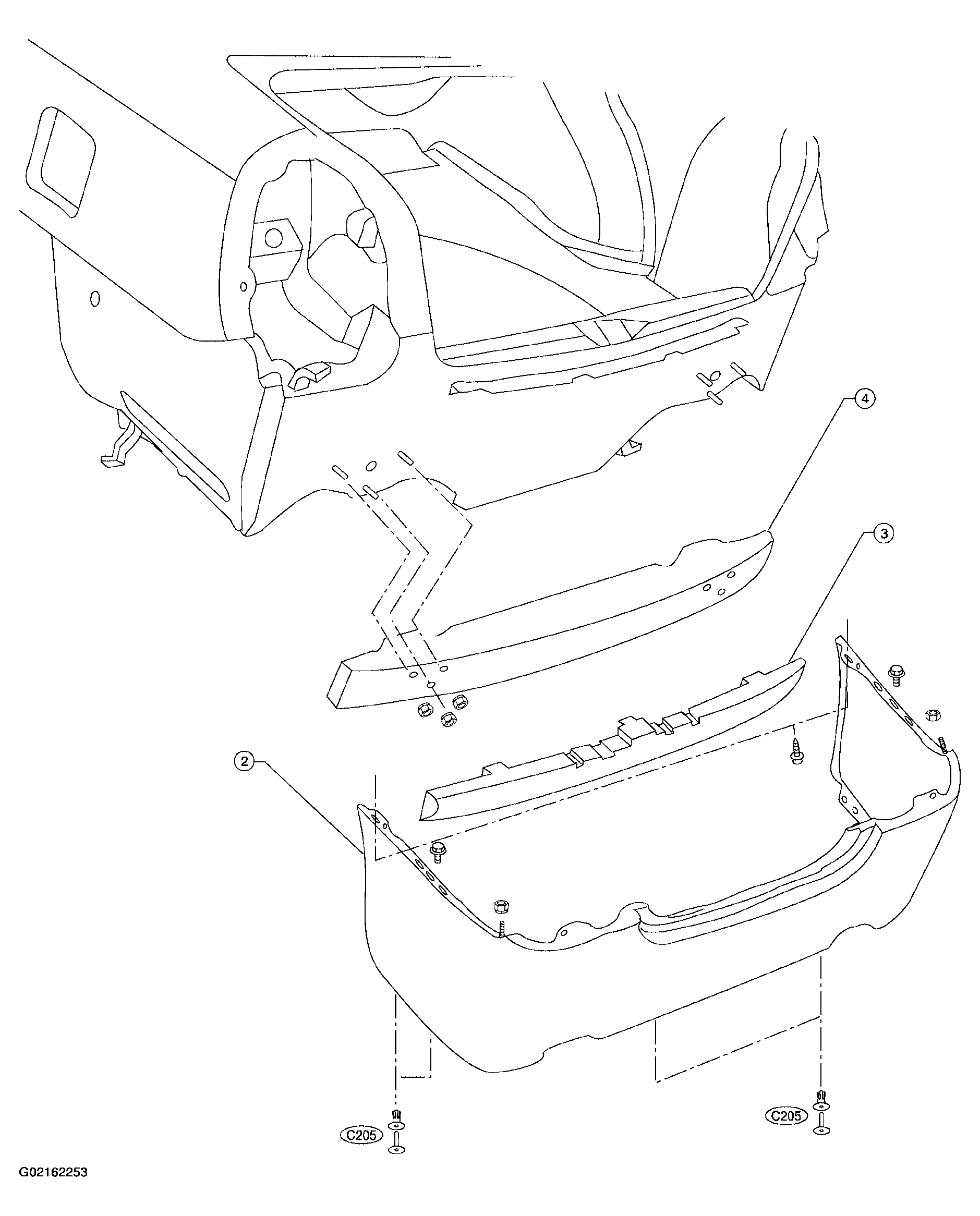

Fig 1: Removing And Installing Rear Bumper

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove rear combination lamp. Refer to, "REMOVAL AND INSTALLATION FOR REAR COMBINATION LAMP ".
Remove rear bumper fascia.
Remove energy absorbing foam.
Remove rear bumper reinforcement.
Installation is in the reverse order of removal.
