Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

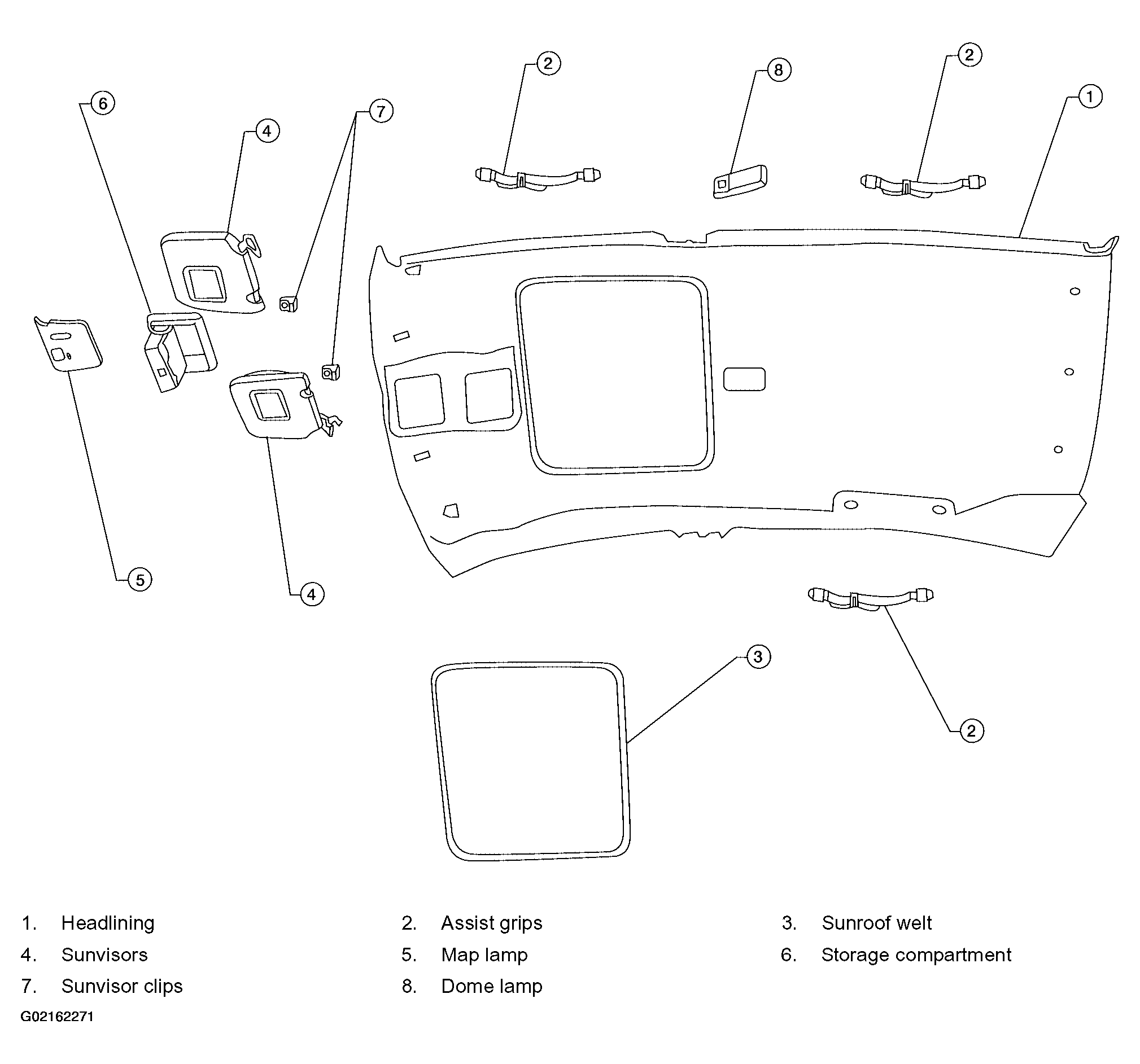

Fig 1: Identifying Headlining Components
G02162271Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Disconnect both terminals from battery in advance.
  1. Remove front and rear door kicking plates. Refer to , "BODY SIDE TRIM ".
  2. Remove lower dash side trim. Refer to , "BODY SIDE TRIM ".
  3. Remove front pillar garnish, center pillar lower and upper garnish, and rear pillar garnish. Refer to , "BODY SIDE TRIM ".
  4. Remove front and rear door welts. Refer to , "BODY SIDE TRIM ".
  5. Remove assist grips.
  6. Remove interior lamp.
  7. Remove map lamp.
  8. Remove storage bin.
  9. Remove sunvisors.
  10. Remove sunvisor clips.
  11. Remove windshield garnish molding. Refer to , "BODY SIDE TRIM ".
  12. Remove sunroof welt (if equipped) and door welts.
  13. Remove clips attached to roof.
  14. Take out headlining from the left rear door.
  15. Installation is in the reverse order of removal.
