Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For clips and/or fasteners identified in repair procedures and/or figures, refer to the corresponding numbers in Figure-Figure

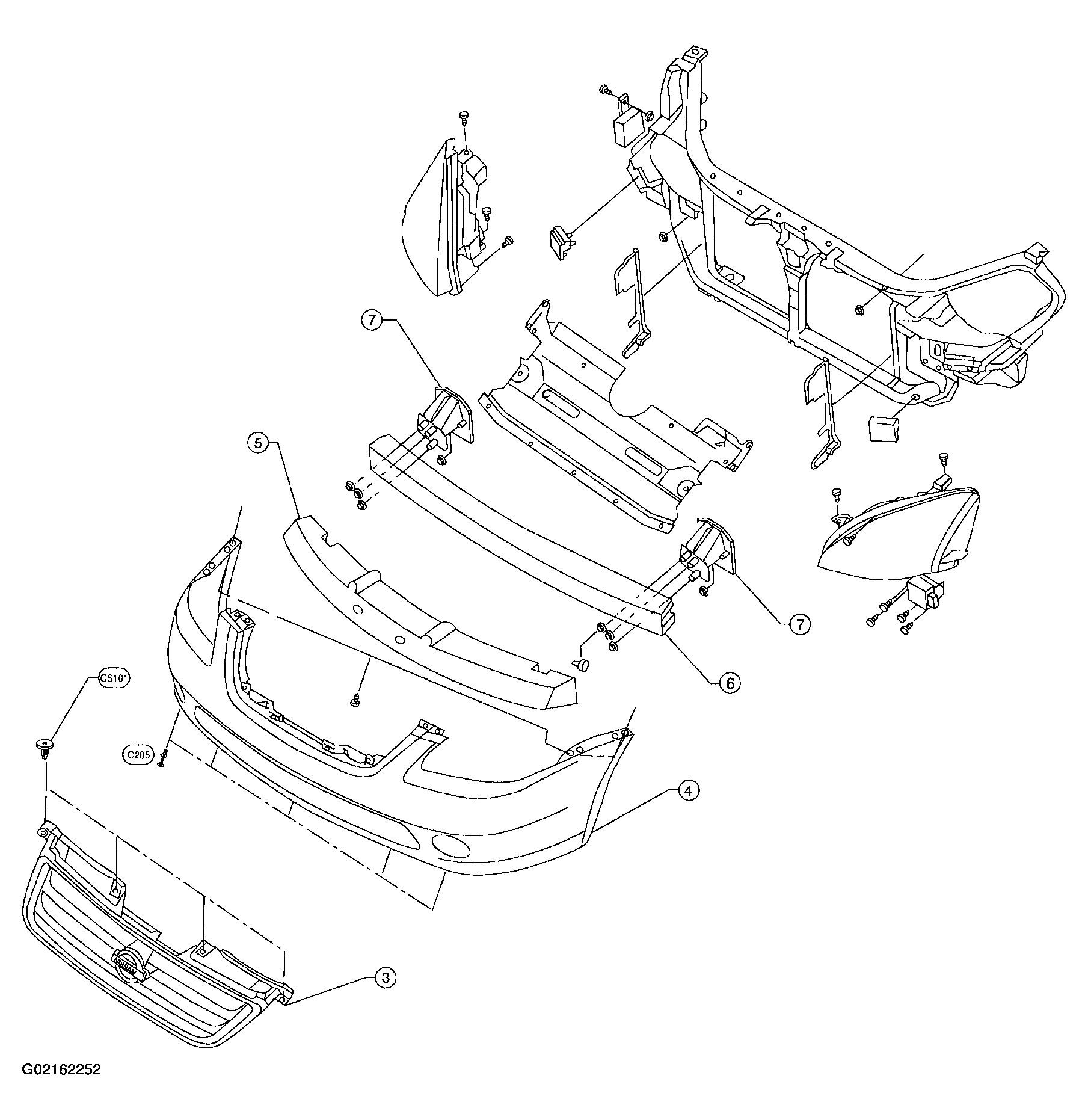

Fig 1: Removing And Installing Front Bumper

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove fender protector. Refer to , "FENDER PROTECTOR ".
Remove engine under cover.
Remove radiator grille. Refer to , "FRONT GRILLE ".
Remove front bumper fascia.
Remove energy absorbing foam.
Remove front bumper reinforcement.
Remove front bumper supports.
Installation is in the reverse order of removal.
