Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

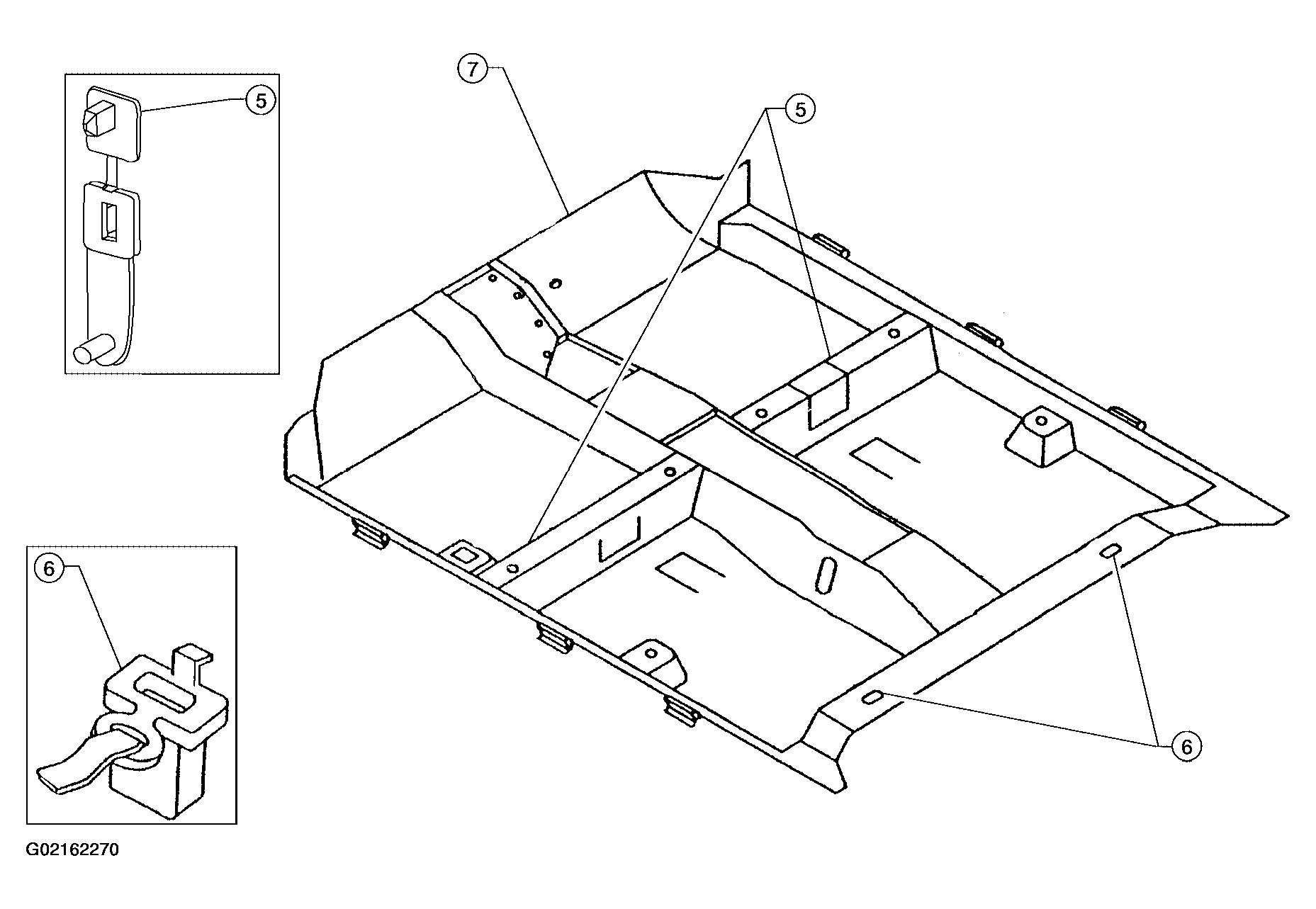

Fig 1: Removing And Installing Floor Trim
G02162270Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove lower body side trim. Refer to , "BODY SIDE TRIM ".
  2. Remove rear seat cushion. Refer to , "REAR SEAT ".
  3. Remove center console. Refer to , "CENTER CONSOLE ".
  4. Remove lower seat belt anchors. Refer to , "SEAT BELTS ".
  5. Remove service mat brackets.
  6. Remove rear seat cushion hooks.
  7. Remove carpet.
  8. Installation is in the reverse order of removal.
