Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For clips and/or fasteners identified in repair procedures and/or figures, refer to the corresponding numbers in Figure-Figure
  1. Remove both the right and left wiper arms from the vehicle. Refer to , "REMOVAL AND INSTALLATION FOR FRONT WIPER ARMS, ADJUSTMENT FOR WIPER ARMS STOP LOCATION ".
  2. Place windshield washer hose aside. Refer to , "WASHER TUBE LAYOUT ".
  3. Release clips of both cowl top seal rubber and cowl top cover, and remove cowl top cover.

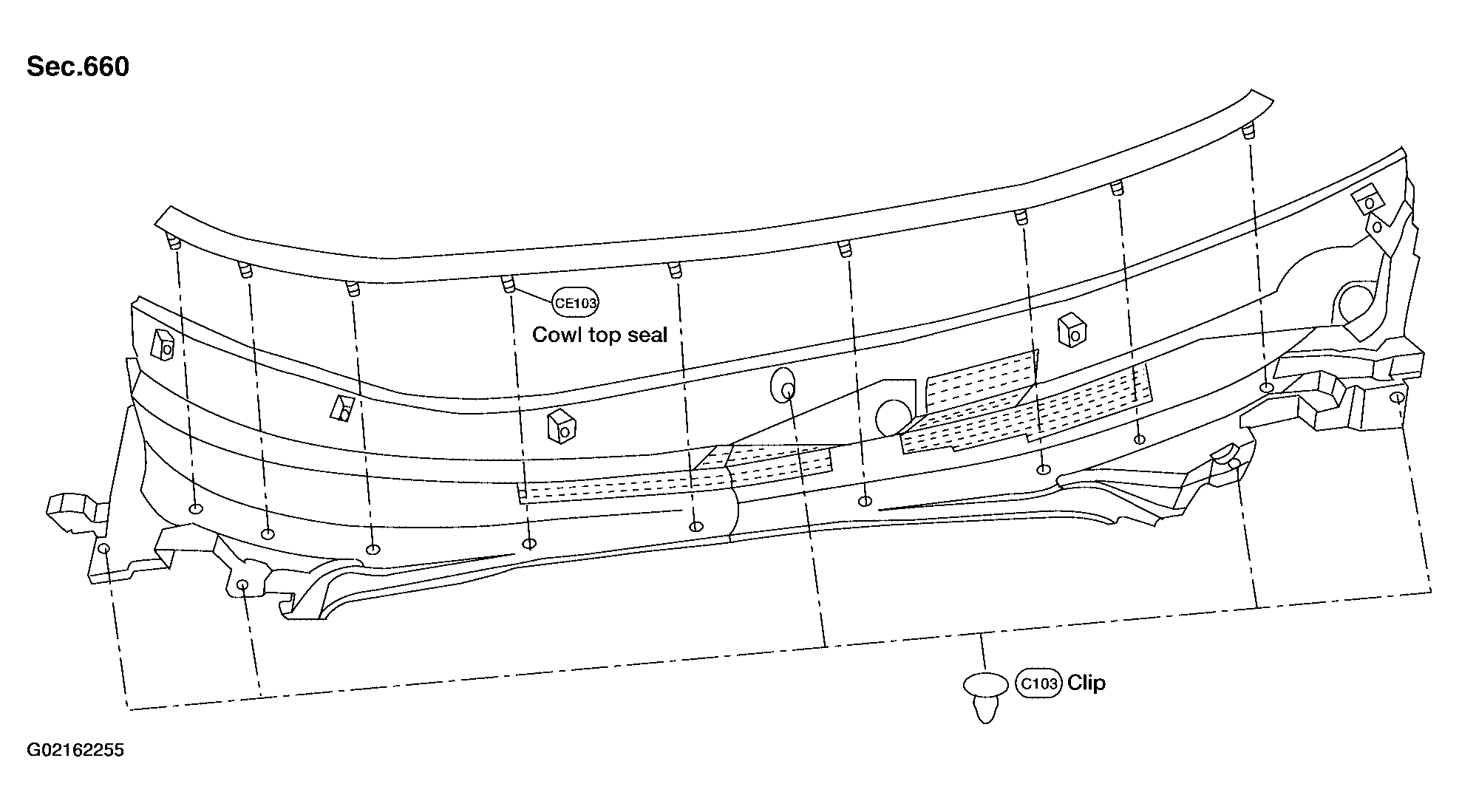

    Fig 1: Removing And Installing Cowl Top
    G02162255Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Installation is in the reverse order of removal.
