Clips and fasteners in the repair procedures of this article correspond to the following numbers in Fig 1-Fig 3.
Replace any clips and/or fasteners which are damaged during removal or installation.

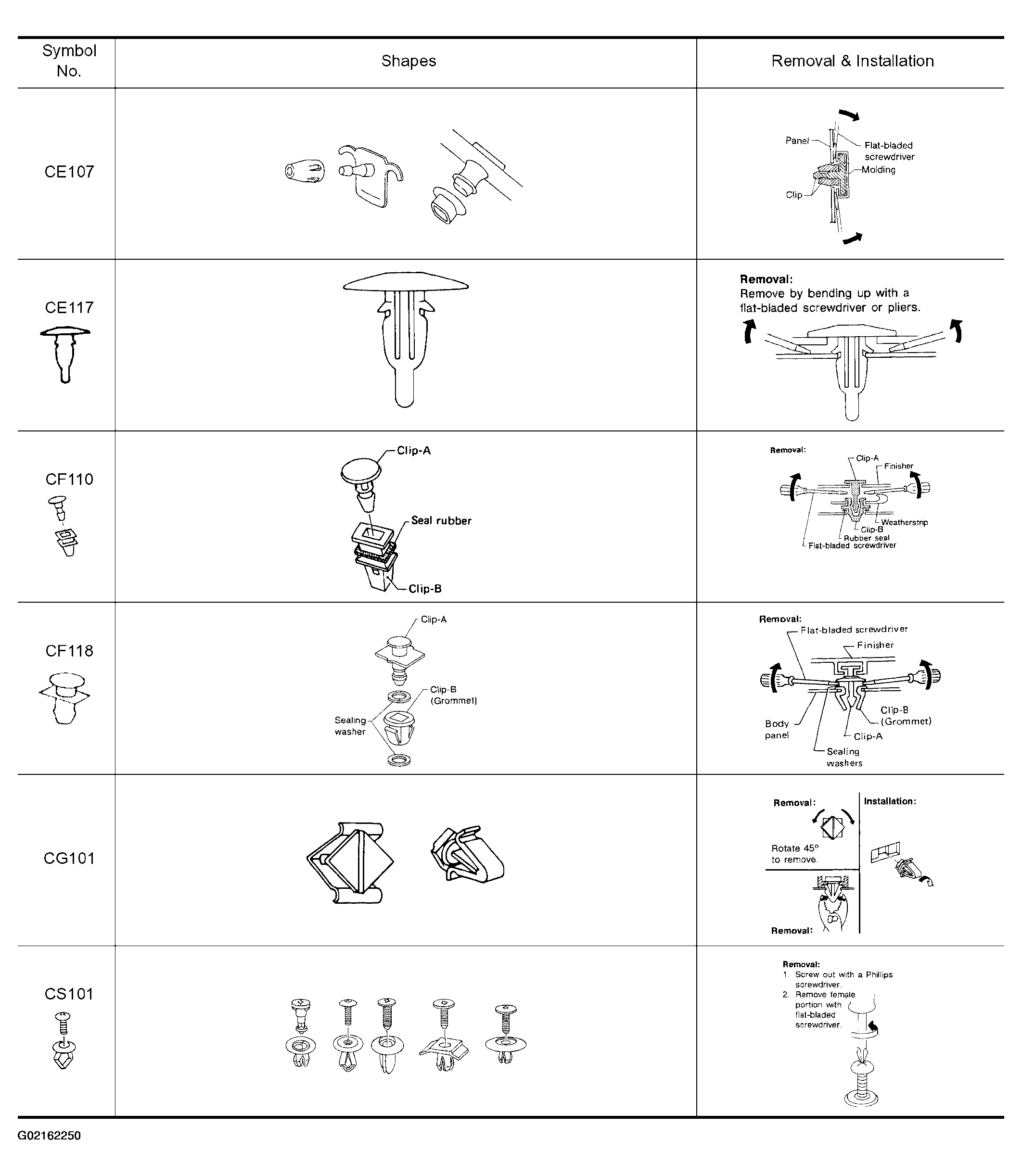

Fig 1: Clip And Fastener Description Chart (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Clip And Fastener Description Chart (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Clip And Fastener Description Chart (3 Of 3)
