Removal and Installation: Notes

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.
  • When removing or installing body side welts, do not allow butyl seal to come in contact with pillar garnish.

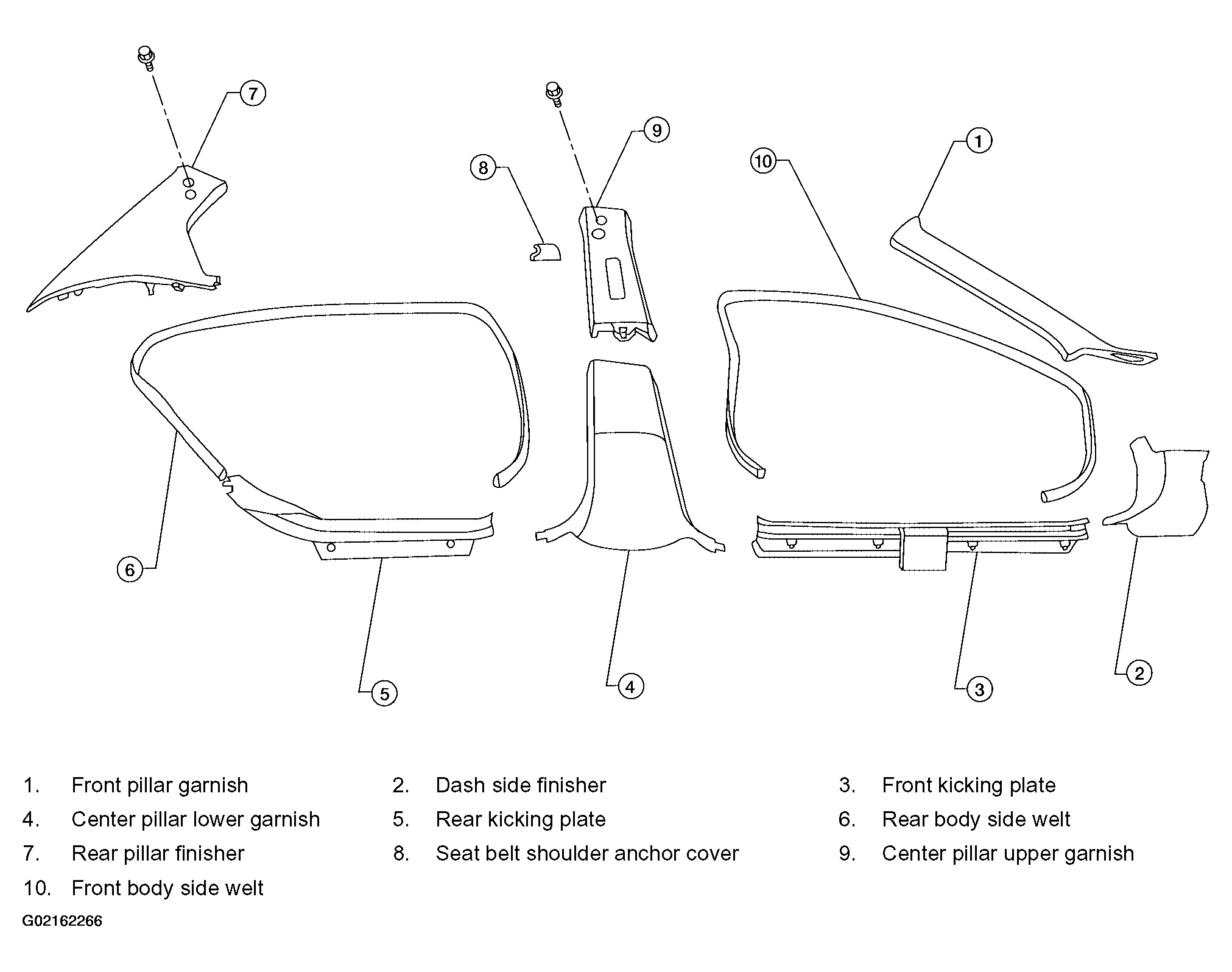

    Fig 1: Identifying Body Side Trim Components
    G02162266Courtesy of NISSAN MOTOR CO., U.S.A.
