Wiring Diagram - SROOF -

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For wiring diagram references to PG-POWER , see POWER DISTRIBUTION and GROUND DISTRIBUTION .

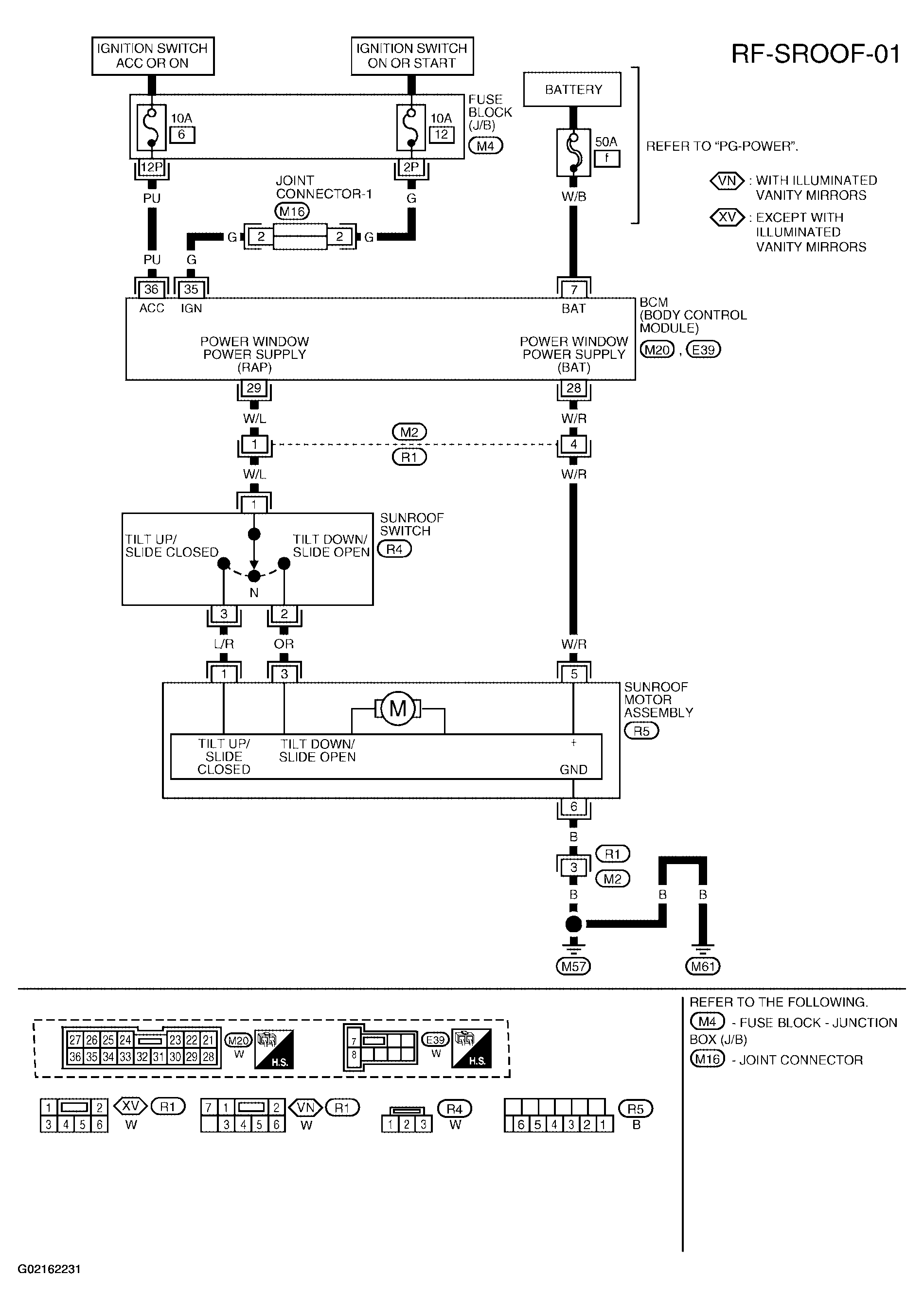

Fig 1: Wiring Diagram - Sunroof

Courtesy of NISSAN MOTOR CO., U.S.A.
