Height Difference Adjustment
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
- Tilt glass lid up and down.

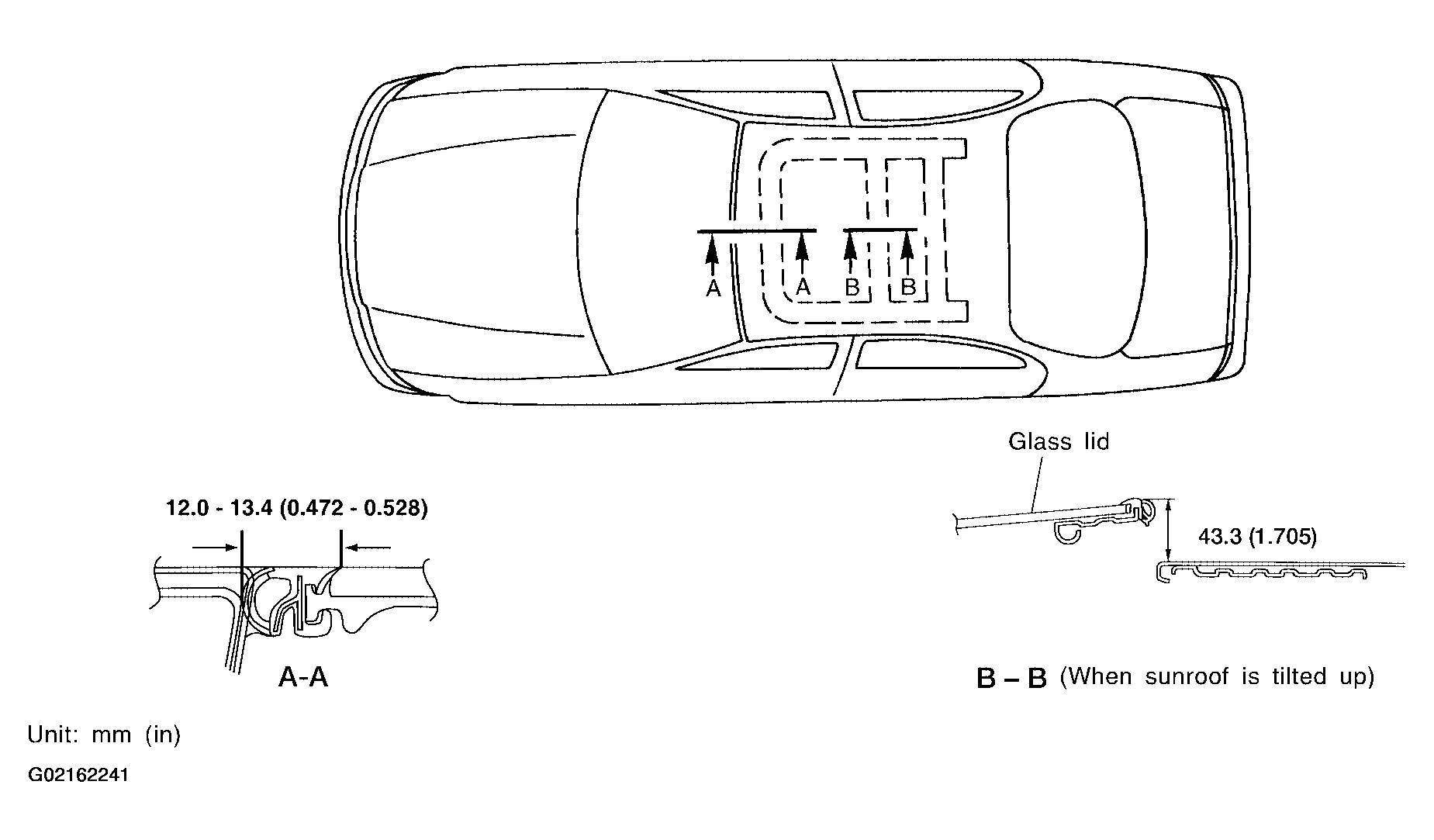

- Check height difference between roof panel and glass lid, and compare to "A - A" as shown.
- If necessary, adjust height difference by using the following procedure.
- Loosen glass lid securing bolts.
- manually raise/lower glass lid until height difference is within specification.
- Tighten glass lid securing bolts.
- Glass lid assembly mounting bolts :30.0 - 5.0 N-m (0.3 - 0.5 kg-m, 26 - 43 in-lb)
