Wiring Diagram-DEF-WITH AUTO A/C

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

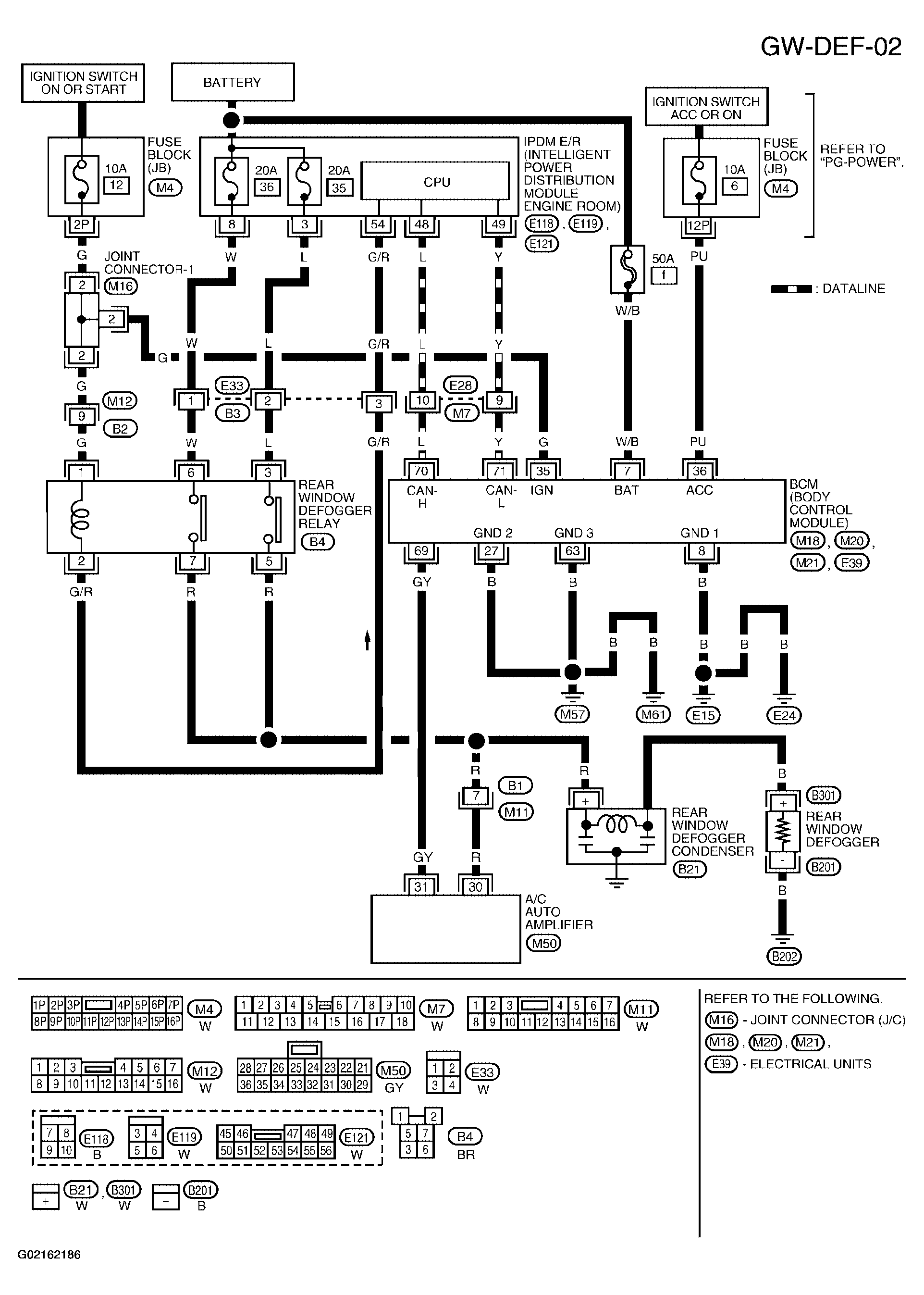

Fig 1: Wiring Diagram-DEF-With Manual A/C
G02162186Courtesy of NISSAN MOTOR CO., U.S.A.
