Wiring Diagram - WINDOW - (With Left and Right power Window Anti-pinch System)
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

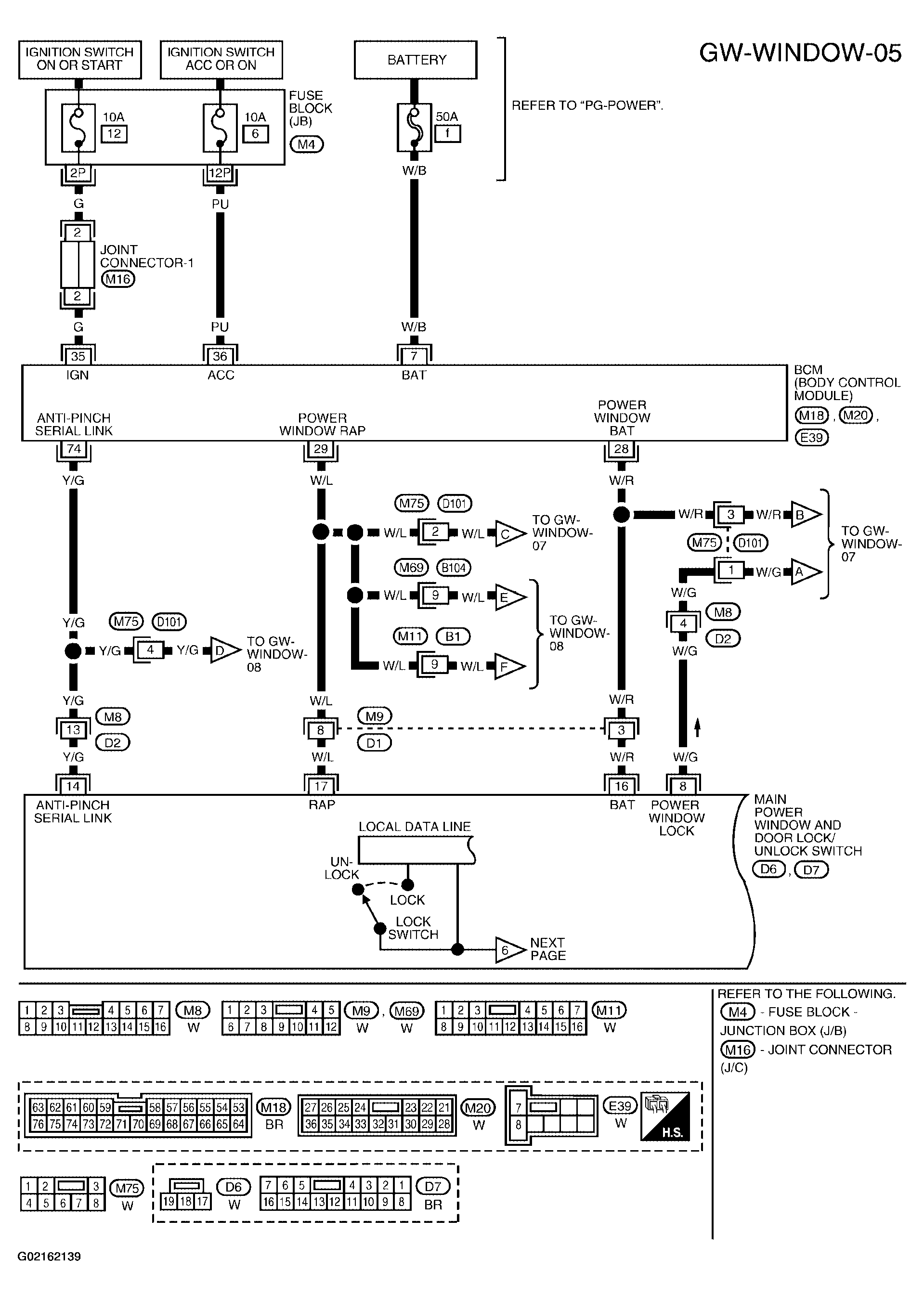

Fig 1: Wiring Diagram-Window - (With Left And Right Power Window Anti-Pinch System)(1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

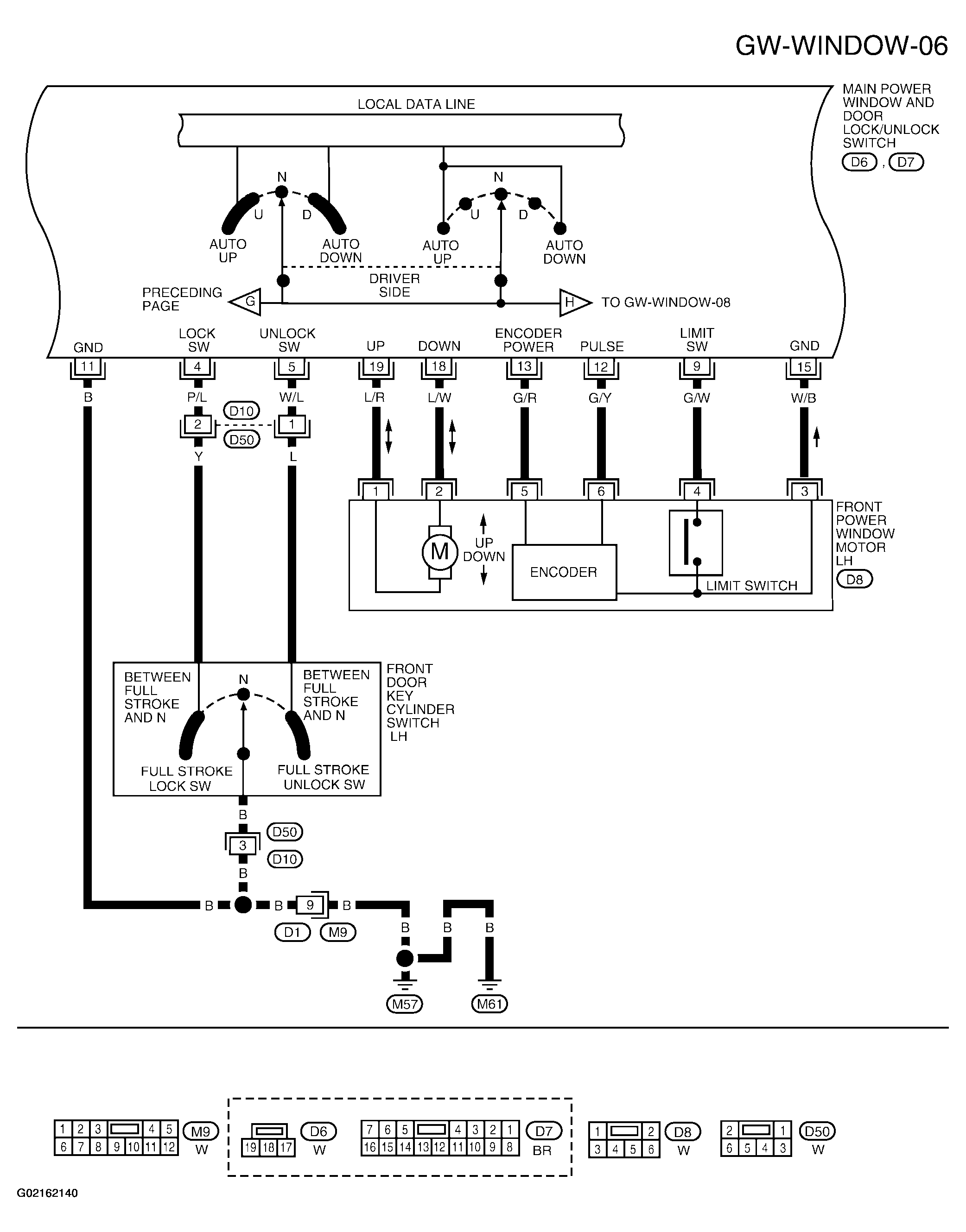

Fig 2: Wiring Diagram-Window - (With Left And Right Power Window Anti-Pinch System)(2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

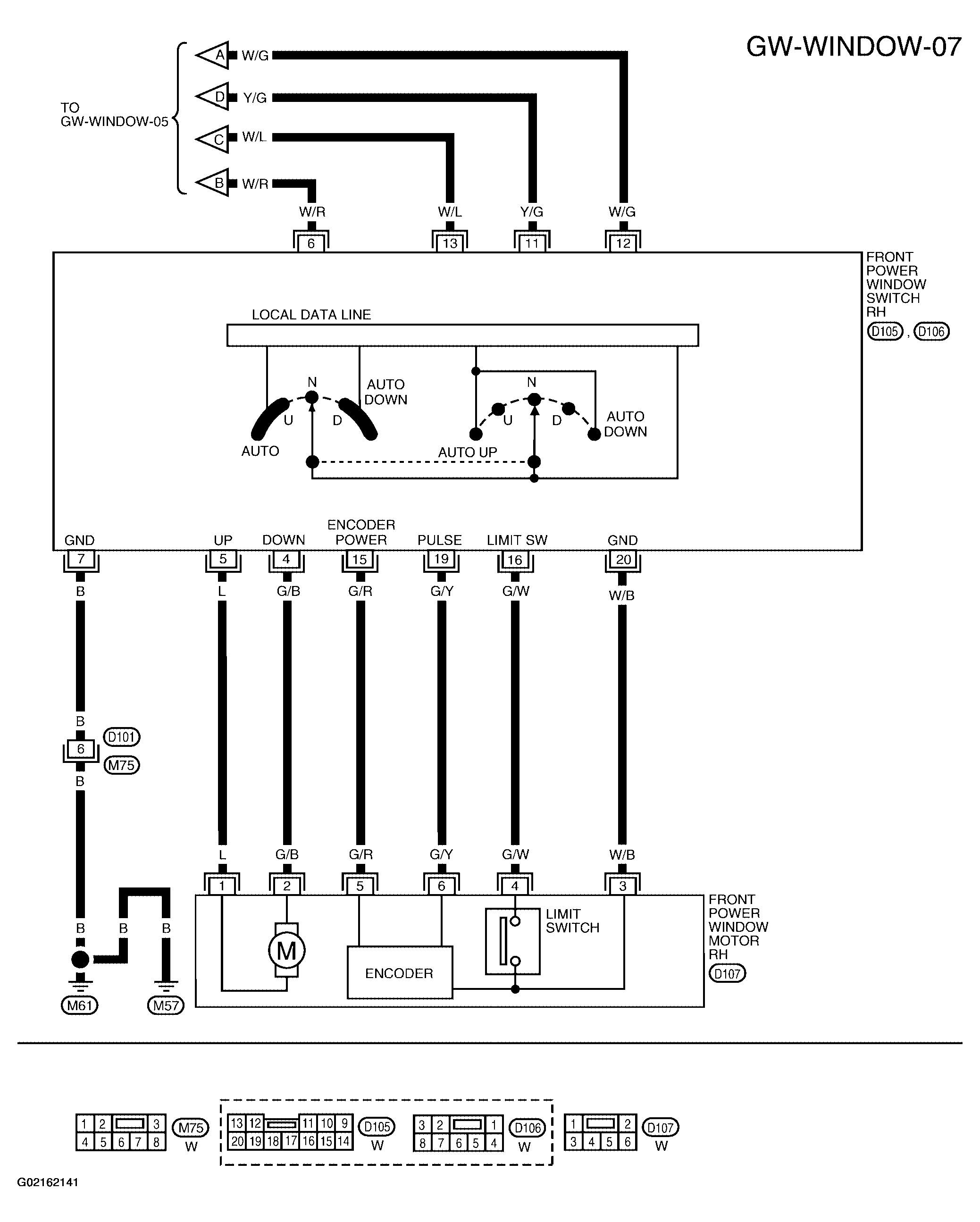

Fig 3: Wiring Diagram-Window - (With Left And Right Power Window Anti-Pinch System)(3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

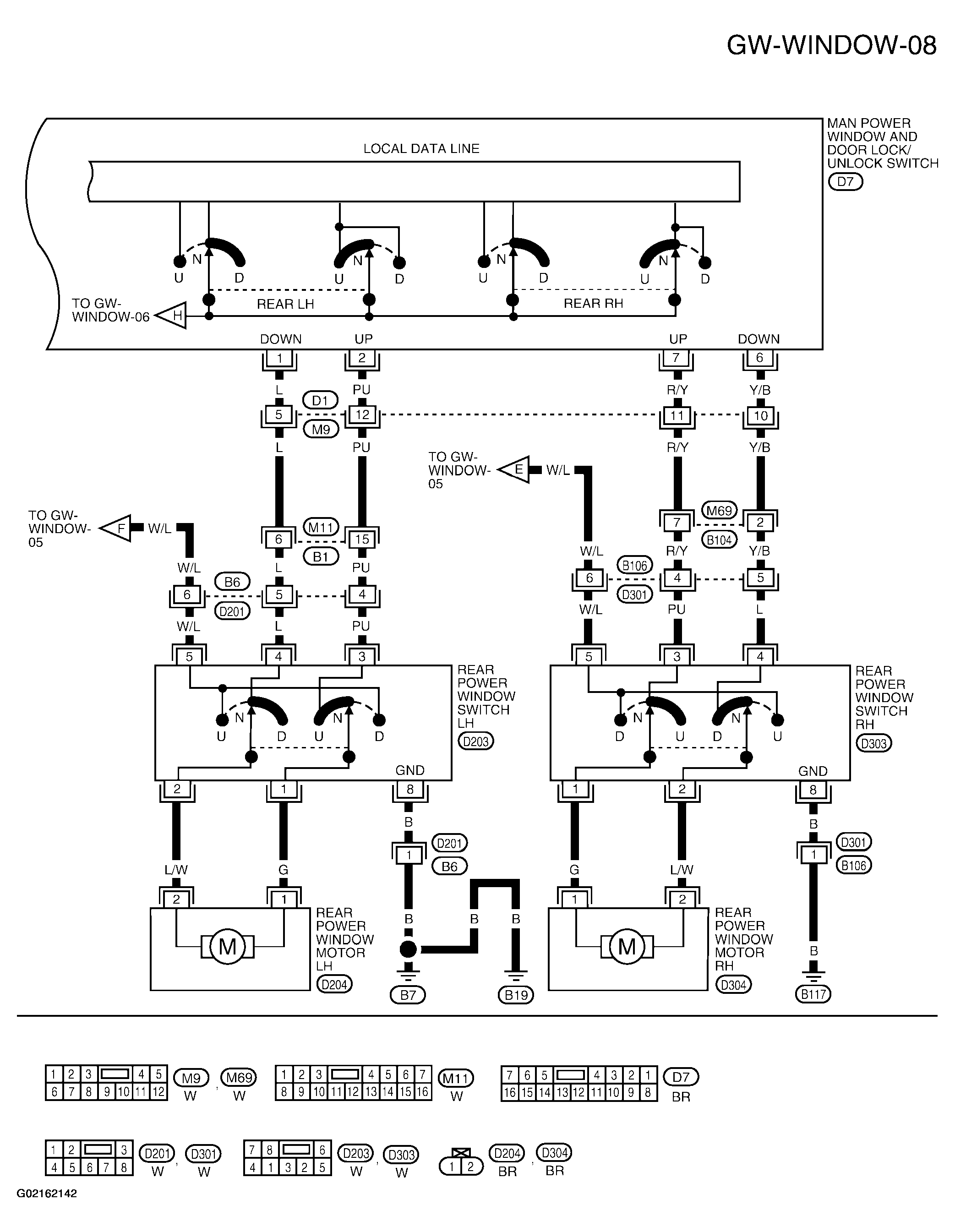

Fig 4: Wiring Diagram-Window - (With Left And Right Power Window Anti-Pinch System)(4 Of 4)
